QwickBuild® for Tiles
Product Description
MODULAR FRAMING & SUPPORT SYSTEM
QwickBuild is the only system that provides a low height, level & stable solution for supporting not only exterior tiles but also for decking, turf or a combination. Designed as a low risk floating floor system for installations over waterproof membranes. The versatile system is also ideal as a sub-frame over concrete, pavers or natural ground. QwickBuild can support Outdure's structural exterior tile ranges, or your preferred tiles can also be used if structurally capable.

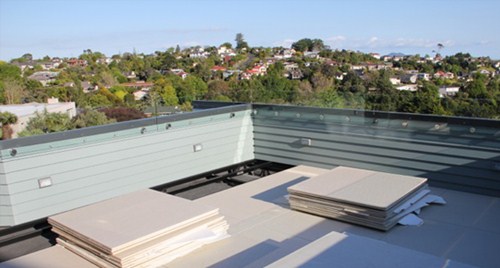

DESIGNED AS A LOW RISK, DURABLE & MOISTURE RESISTANT SOLUTION FOR INSTALLING TILES OVER MEMBRANES, SUCH AS ROOFTOP SPACES.
MADE OF MOISTURE-PROOF, LIGHTWEIGHT MATERIALS
The proprietary system comprises of a comprehensive range of patented beam profiles, fastening & support components & additional accessories. The beams & components are manufactured from lightweight structural aluminium with marine-grade anodized or powder coated finish or electrophoresis 304 stainless steel. Other system components include brackets, clips, anchors, fasteners, access & ventilation grates, adjustable heights pedestals & aluminium turf baseboards to support the synthetic turf over the frames.
UNMATCHED BENEFITS
- COMPLIANT LOW-RISK SOLUTION
The system is designed to "float" on waterproof membrane without penetrating.
- DURABLE AND LIGHT-WEIGHT
Manufactured from moisture-proof materials: structural aluminium and 304 stainless steel components/fixings.
- VERSATILE
Infinitely configurable to accommodate various heights and engineering requirements.
- MULTI-SURFACE INTEGRATION
Mix and match from Outdure's ranges of decking, tiles, turf or select a preferred surface option.
- COST-EFFECTIVE
Cost-savings through fast installation with interlocking components and hidden fasteners.
- ONE SYSTEM
For the structure and surfaces, reducing the number of trades required on a project
- STABLE AND LEVEL

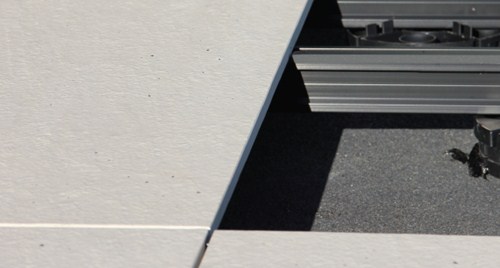

Aluminium joists sit on adjustable deck jack pedestals or posts
- ACCESS SOLUTION
Add QuickGrates as a convenient solution for ventilation and access to drains and services.
QwickBuild technical attributes
- 36MM Height - Tiles on QQwickBuild ultra low height long-span capabilities
- 304 SS Components - Marine Grade Aluminium Joist & Bearer Profiles.
- 5kN Point Load - Engineered for residential and commercial applications
- 5kPa UDL - Engineered for residential and commercial applications
How are pavers and tiles installed on QuickBuild?

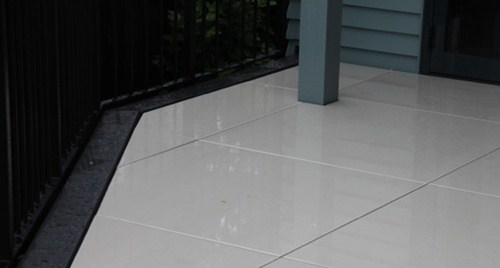

In addition to installing tiles using traditional methods such as pedestals, QwickBuild sub-structure system is a durable, stable solution ideal for many projects including tiles over membrane & when a low finish is required.
INSTALL OVER MULTIPLE SUBSTRATES
Designed for waterproof membranes, concrete & existing tiles & pavers & natural ground. QwickBuild offers the most features & benefits for deck structures under 400mm in height, especially areas where deck structures are built over a waterproof membrane. The system offers low height capabilities enabling the construction of deck structures with flush internal & external floor levels that are complex integrated surfaces. the convenience of transporting made-to-measure frames to site and significantly reduced installation time on site makes QwickBuild cost-effective.
EASY SUPPLY & INSTALL
- Loose components(off the shelf /// Kit-set (Cut to size)
- Made to adjust prefab frames /// made to measure prefab frames
All QwickBuild projects are supplied with customised construction drawings including optional design features sich as stairs, seats, screens and curves.
