Outdure® NuraJack® Deck Jack Pods (Pedestals)

Product Description

HEIGHT-ADJUSTABLE OUTDURE NURAJACKS

USE WITH QWICKBUILD OR AS A STANDALONE SOLUTION FOR TILE INSTALLATIONS

The Outdure NuraJack range allows for a level deck surface, they are strong, stable and load tested. Tiles can easily be replaced if necessary. Access to the waterproofing membrane and services below is also easy. They are durable, windproof and enable a level indoor-outdoor flow.

In addition to installing tiles using traditional methods suck as pedestals, our QwickBuild system is a durable, stable solution ideal for many projects inclding tiles over membrane & when a low height finish is required.

Tiles & decking should be removable to allow access to the waterproofing membrane below the surface. The Outdure NuraJacks, also known as pods or pedestals are height adjustable & allow tiles or decking to be raised up to the level of the interior living space creating a level threshold with optimum indoor-outdoor flow.

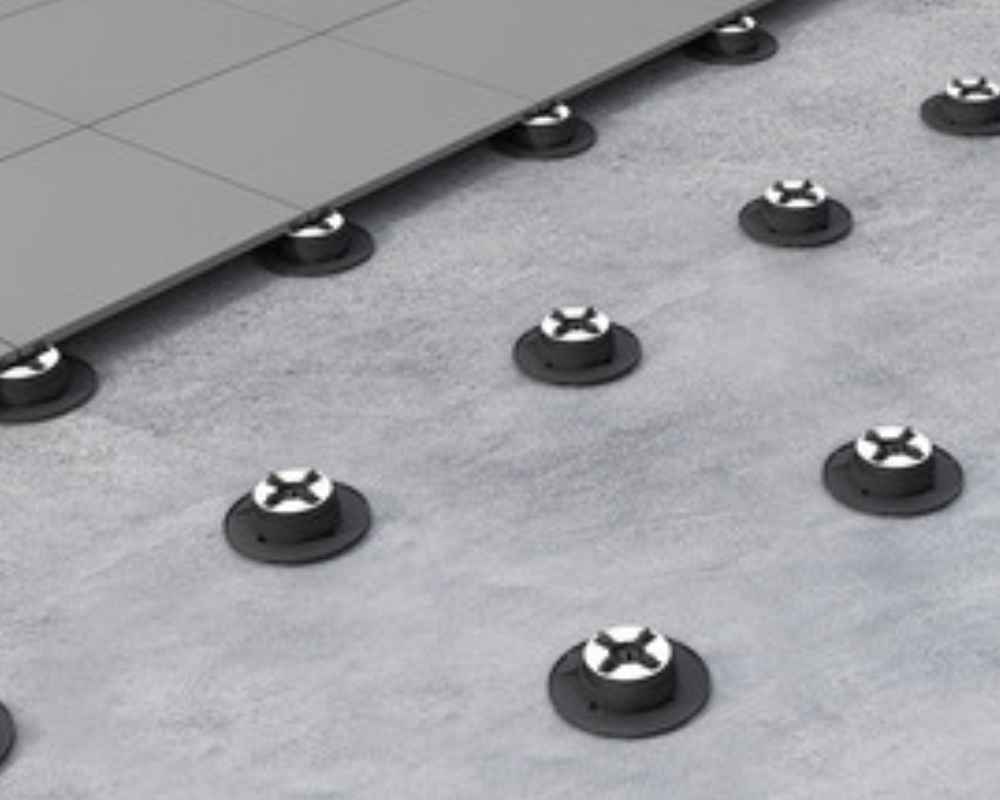

Laying a deck with Outdure NuraJacks is easy. The jacks rest on top of the waterproofing membrane & the tiles sit on the self-leveling head of the jack. The void between the deck & the membrane can be used to accommodate pipes & other services. The system does not use grout or adhesives.

When it rains the water flows between the tiles, onto the membrane and then unimpeded into drainage. The system thus protects the membrane from foot traffic and harsh UV sunlight so that it can keep your home dry.

NuraJack benefits & attributes

  • LARGE BASE

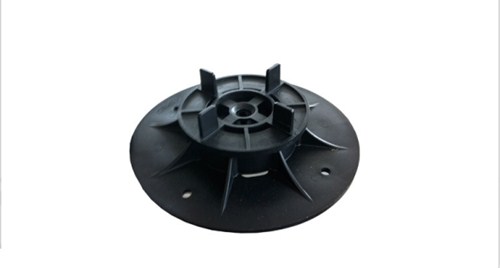

The 330mm base spreads the deck load over the wide base + withstands loads up to 1000kg each - ensuring stability & membrane integrity.

  • HEIGHT ADJUSTMENT FEATURE

Heights can be adjusted with the Adjustment Key.  There is no lifting of tiles to adjust jacks.  The installer can complete the installation with perfect accuracy without the need to remove the tiles.

  • EASE OF ACCESS TO UNDERLYING MEMBRANE

Tiles are removable to membranes and gutters are easily accesable.

  • COMPLIANT

The system meets Building Code requirements for floated decks over membranes and Council compliancy for removable decking over membrane decks.
