BGC Innova Duragroove™ & Durascape™
Product Description

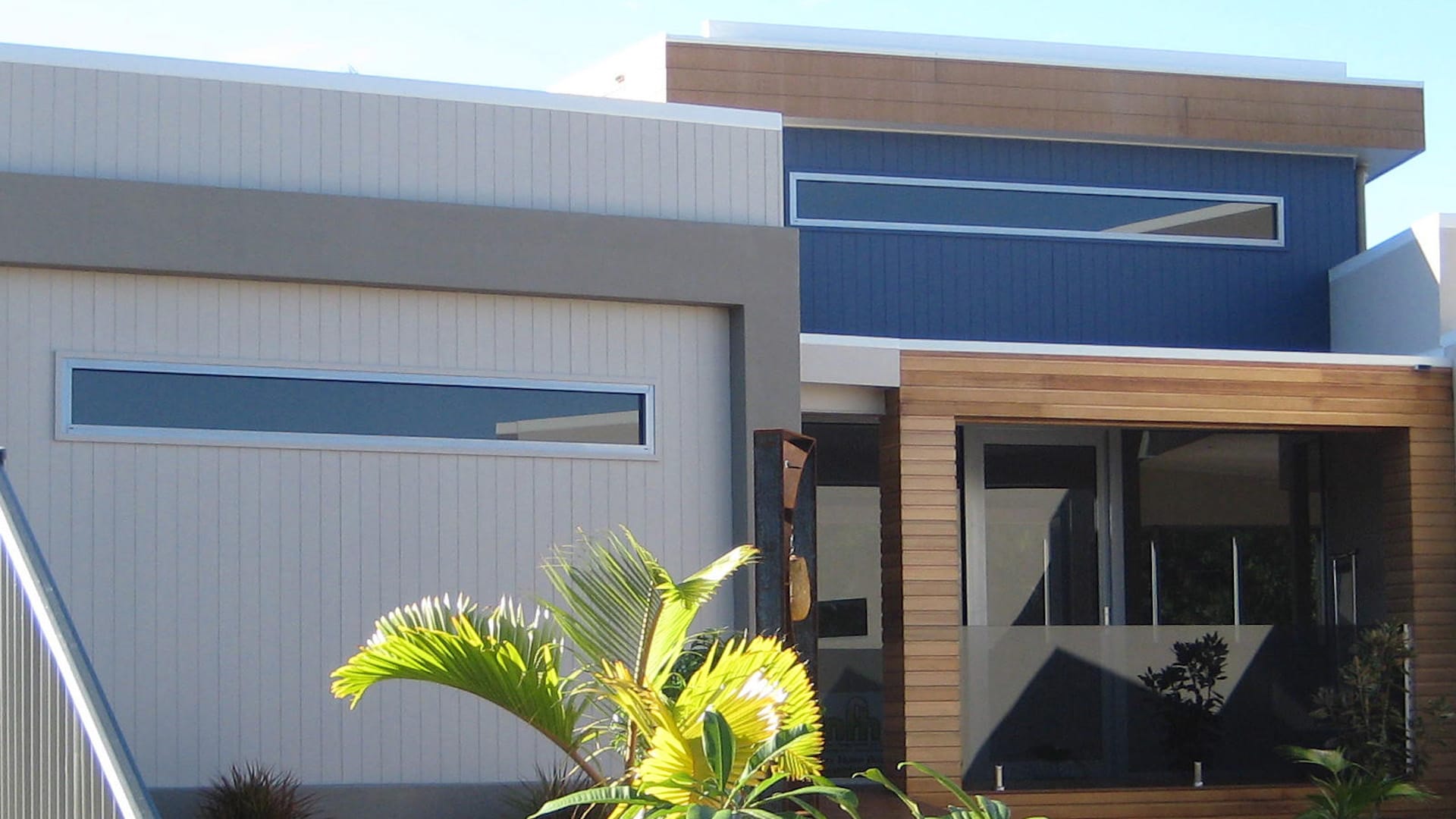

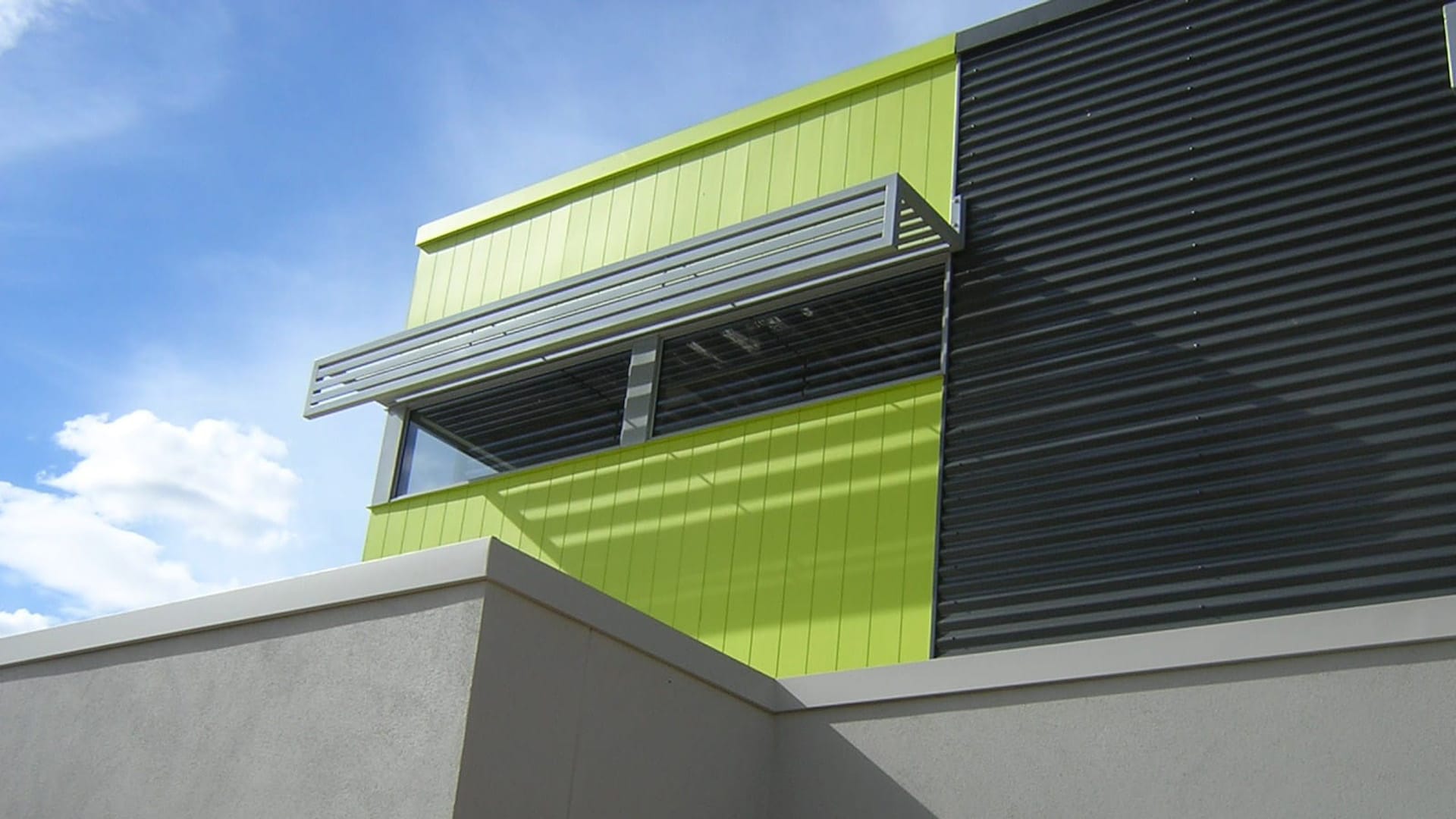

BGC Duragroove Cladding is a vertically grooved panel which provides a modern look for exterior or interior installation.
It utilises a shiplap joint for fast and easy installation.
BGC Duragroove is the only BRANZ appraised grooved fibre cement sheet available in New Zealand.
Specify with confidence - BRANZ Appraised.
BGC Duragroove is available in 4 profiles and three sheet sizes for convenient construction:

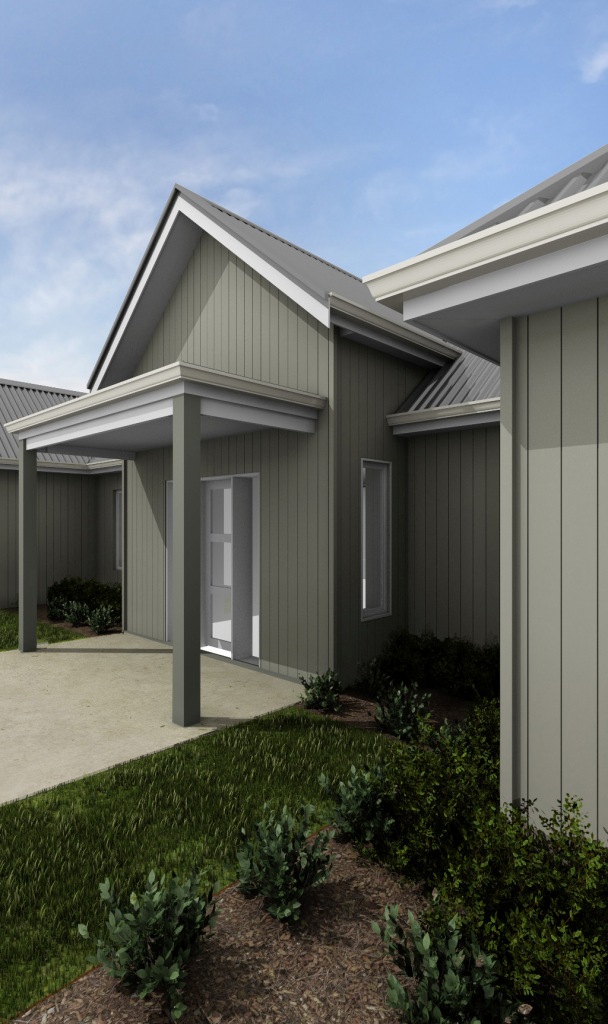

- Duragroove Smooth Wide (150mm groove spacing)

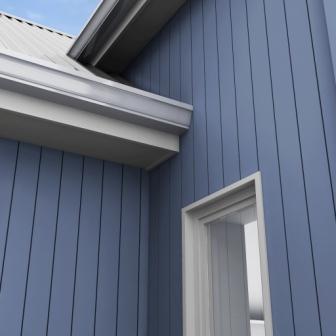

- Duragroove Smooth Narrow (100mm groove spacing)

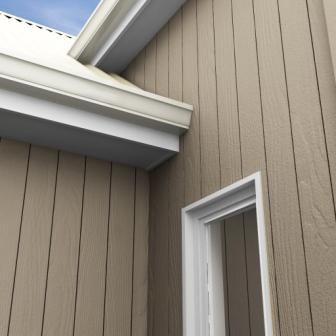

- Duragroove Woodgrain Wide (150mm groove Spacing)
- Duragroove Smooth Extra Wide (400mm groove spacing)
It is lightweight and Durable and quick to install - can be installed on a cavity up to the Extra high wind zone with Brads and adhesive.
it is suitable of Residential and light commercial construction.
It is also available without the grooves - Durascape.
Durascape is a great alternative to the exterior taped and filled joint systems. Once installed it leaves a 5mm shiplap joint and can be coated in a variety of finishes
