BGC Durasheet™
Product Description
BGC Durasheet™ is a general-purpose fibre cement sheet for external applications. It is recommended for the cladding of gable ends, eaves, carport and verandah linings of timber or steel framed buildings.

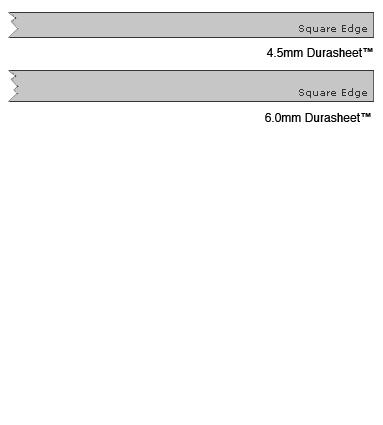

Durasheet™ is a smooth flat square edged sheet and is manufactured in nominal thickness of 4.5 mm, 6.0 mm and 7.5mm.

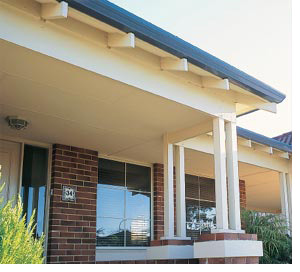

4.5 mm Durasheet™ is generally used in timber framed residential and light commercial buildings for soffit linings and the cladding of features such as gable ends.
6.0 mm Durasheet™ is recommended for residential, commercial applications and steel framed construction.
7.5mm Durasheet™ is recommended for commercial applications or where greater protection is required.
Durasheet™ is manufactured from Portland cement, finely ground silica, cellulose fibres and water. It is cured in a high-pressure steam autoclave to create a durable, dimensionally stable product.
BGC Durasheet™ fully complies with the NZ Building Code when installed as per E2/AS1.
Technical Files
-
D00 Wall Elevation Durasheet
-
D02 Direct Fixed Sheet Fixing Durasheet
-
D03-Concrete-Foundation-details-Durasheet
-
D04-Vertical-Upvc-Joints-Durasheet
-
D05-Vertical-Timber-Batten-Joints-Durasheet
-
D06-Vertical-Sealant-Joints-Cavity-Durasheet
-
D07-UPVC-Internal-Corner-Joints-Durasheet
-
D08-Timber-Batten-Internal-Corner-Joint-Durasheet
-
D09-Sealant-Internal-Corner-Joints-Durasheet
-
D10-UPVC-Exterior-Corner-Joints-Durasheet
-
D11-Timber-Batten-External-Corner-Joints-Durasheet
-
D13-Vertical-Joints-h-Moulds-Durasheet
-
D14-Soffit-Details-Durasheet
-
D15-450-and-600mm-Soffit-Setout-Durasheet
-
D16-750mm-Soffit-Setout-Durasheet
-
D17-900-to-1200mm-Soffit-Setout-Durasheet
-
D18-Soffit-Jointers-Durasheet
-
D19-Soffit-Control-Joints-Durasheet
-
D20-Soffit-Details-Nuline-and-Brick-Durasheet
-
D21-Window-Head-Durasheet
-
D22-Window-Sill-Durasheet
-
D22-Window-JAMB-Durasheet
-
D24-Transerve-Apron-Flashing-Durasheet
-
D25-Parallel-Apron-Flashing-Durasheet
-
D26-Parapet-Flashing-Durasheet
-
D27-Pipe-Penetration-Durasheet
-
D28-Brace-Element-Hold-Down-Durasheet
-
D29-Brace-Element-Hold-Down-Section-Durasheet
-
D30-Brace-Element-3d-Durasheet
-
D31-Brace-Element-3d-Durasheet
