QwickBuild® for Hardwood

MODULAR FRAMING & SUPPORT SYSTEM

QwickBuild is the only system that provides a low height, level & stable solution for supporting not only hardwood decking timbers, but composite decking, tiles, turf or a combination. Designed as a low risk floating floor system for installations over waterproof membranes, QwickBuild is also ideal as a sub-frame over concrete, pavers or natural ground.

INTEGRATE WITH ANY HARDWOOD DECKING TIMBERS

QwickBuild is the only system that provides a low height, level & stable solution for supporting not only hardwood decking timbers, but composite decking, tiles, turf or a combination. Designed as a low risk floating floor system for installations over waterproof membranes, QwickBuild is also ideal as a sub-frame over concrete, pavers or natural ground.

MADE OF MOISTURE-PROOF, LIGHTWEIGHT MATERIALS

The proprietary system comprises of a comprehensive range of patented beam profiles, fastening & support components & additional accessories.  The beams & components are manufactured from lightweight structural aluminium with marine-grade anodized or powder coated finish or electrophoresis 304 stainless steel.  Other system components include brackets, clips, anchors, fasteners, access & ventilation grates, adjustable heights pedestals & aluminium turf baseboards to support the synthetic turf over the frames.

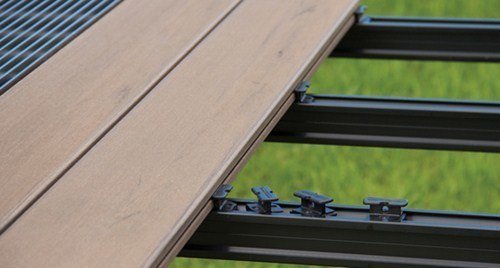

We have designed patented joist profiles & fasteners specifically for hardwood applications to ensure the optimum result.

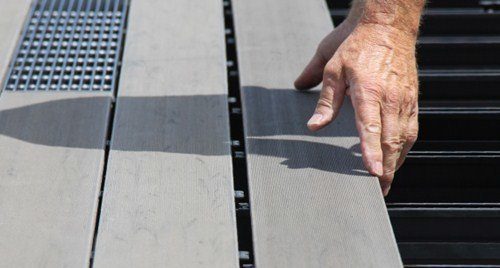

To create the ultimate exterior space, hardwood can also be installed on QwickBuild alongside turf & tiles on the same plane.  QwickGrates can also be laid to ensure ventilation & access.

UNMATCHED BENEFITS

• COMPLIANT LOW-RISK SOLUTION

The system is designed to "float" on waterproof membrane without penetrating.

• DURABLE AND LIGHT-WEIGHT

Manufactured from moisture-proof materials: structural aluminium and 304 stainless steel components/fixings.

• VERSATILE

Infinitely configurable to accommodate various heights and engineering requirements.

• MULTI-SURFACE INTEGRATION

Mix and match from Outdure's ranges of decking, tiles, turf or select a preferred surface option.

• COST-EFFECTIVE

Cost-savings through fast installation with interlocking components and hidden fasteners.

• ONE SYSTEM

For the structure and surfaces, reducing the number of trades required on a project

• STABLE AND LEVEL

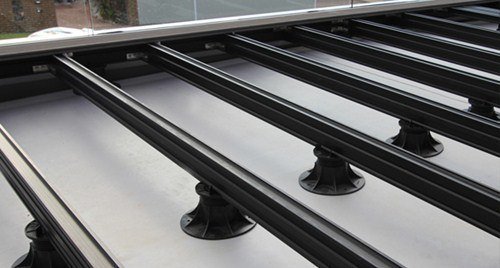

Aluminium joists sit on adjustable deck jack pedestals or posts

• ACCESS SOLUTION

Add QuickGrates as a convenient solution for ventilation and access to drains and services.

QwickBuild technical attributes

• 304 components - Marine Grade Aluminium Joist & Bearer Priofile.
• 100mm  Height - Hardwood on QwickBuild ultra low height long-span capabilities.
• 5kN Point Load - Engineered for residential and commercial applications
• 5kPa Vol - Engineered for residential and commercial applications

​​
