Suncall - Corrugated PVC, Plastic Roofing & Skylights
By Ampelite NZ
Product Description

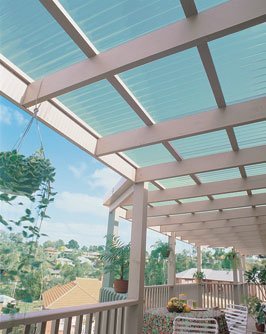

Suncall - Corrugated PVC, Plastic Roofing & Skylights by Ampelite is a low-cost, translucent, corrugated sheet ideal for use around the home. Suncall corrugated sheets will gently and evenly diffuse natural light, reducing the glare from direct sunlight. This plastic corrugated sheeting is versatile and can be used for both ordinary roofing or skylights, providing protection from weather extremes while still making ample natural light available. They can also be used around patios and pools as both a privacy screen and a windbreak and will not exclude the warmth of the sun. Suncall PVC corrugated sheets are lightweight, flexible, and easy to handle or store.
| SUNCALL INFORMATION | |||||
| PROFILE | COLOURS | LENGTHS (M) | COVER | ||
| Corrugated | Frost | 1.8, 2.1, 2.4, 2.7, 3.0, & 3.6 | 610 mm | ||

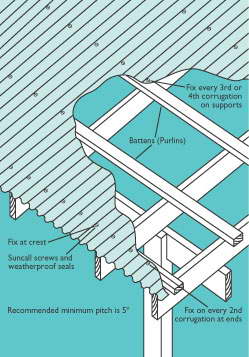

| SPANNING CAPACITY (BETWEEN PURLINS) | |||||
| PROFILE | MAX SPAN | ||||
| Corrugated | 750 mm | ||||
| The span between battens and supporters should not exceed the above measurements and have a minimum fall of 5 degrees. | |||||
| SHEET COVERAGE TABLE | |||||
| PROFILE | 1 SHEET | 2 SHEETS | 3 SHEETS | 4 SHEETS | 5 SHEETS |
| Corrugated | 610 mm | 1220 mm | 1830 mm | 2440 mm | 3050 mm |
| Corrugated sheets should have 1 overlap, overlap should face away from prevailing wind. | |||||
| LIGHTS & HEAT TRANSMISSION | |||||
| COLOUR | LIGHT TRANSMISSION | HEAT TRANSMISSION | |||
| Frost | 69% | 62% | |||
