Strut Post - SP160B Glass Balustrade System

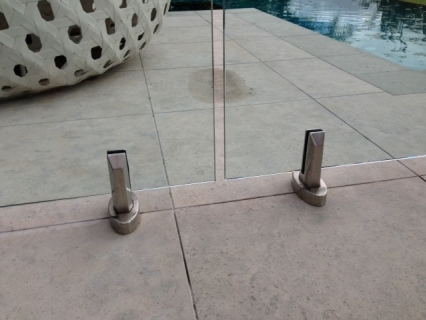

The Strut Post system is an adjustable clamping system, designed for 12-17.52mm toughened glass (base fix) without holes. Manufactured from 2205 Duplex Grade Stainless Steel, Strut Posts are a popular choice for their modern, minimalist finish. Strut Posts have crafted covers that hide the engineered stainless steel fixings.

Key Features

• Available for base fixed (top) mounted applications for 12- 17.52mm glass.
• Manufactured from 2205 Duplex Stainless Steel to withstand coastal conditions.
• Cover plates conceal the fixings and provide a smart finish.
• No holes required in the glass.

Material Finish

• Made from 2205 Duplex grade stainless steel.
• Available in machined, satin, or polished finish.
• Powdercoated upon request. Note: Powder coating is available in a wide range of colours with commercially available surface integrity warranties from 10 to 30 years.
• All fixings must be Stainless Steel.

Occupancy Type

• Suitable for occupancy types A, A Other, B, E, and C3. (Subject to glass & fixing type)
• Occupancy Types as per AS/NZ 1170.1.2002.

Interlinking Rail

• All monolithic toughened frameless glass balustrades must have an Interlinking Rail to conform to NZS 4223.3.2016, including the latest amendment of NZBC B1.
• Railing and Handrails Systems

Compliance

• Complies with AS/NZS 1170:2002, NZS 4223.3.2016, NZ Building Code B1, F2, F4, and F9.

Scope of Use

• The SP160B and SP300S Strut Post is ideal for those seeking a more industrial looking Frameless Glass Balustrade aesthetic.

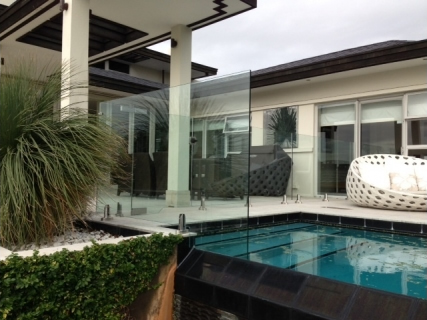

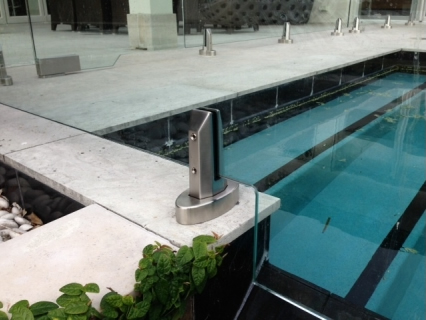

• The strut posts assist with water draining and cleaning, making it an ideal choice for Pool Fence applications
• The system is ideal for external balconies and stairs - as well as for internal stairs and landings. It can be fixed directly to either timber, steel or concrete surfaces.
• An interlinking top rail finishes off the system, producing a low profile modern look.

Windzone

• Exceeds the wind loading for all Wind Zones up to and including Very High Wind Zone as set out in NZS 3604:2011.
• Max design Wind pressure subject to glass type and fixing method.
