Point - Fix PF150 Glass Balustrade System

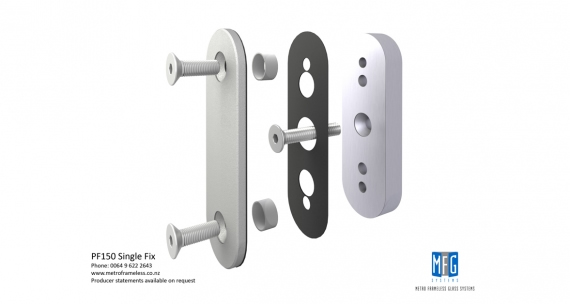

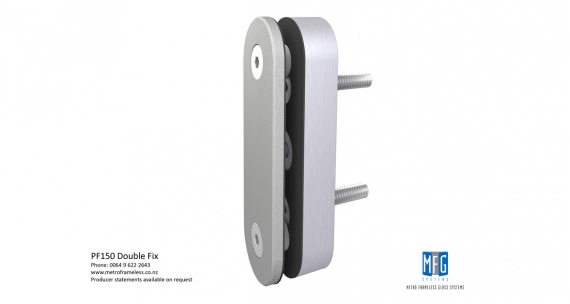

The PlateFix PF150 (Metroview Point-Fix) was born from the double-disc fixings by joining the discs into a single piece profile base plate with an outer clamping plate for a stronger multipurpose balustrade fixing. This enables the PF150 to be used with single or double fixings and it can be used vertically, horizontally, angled or a combination of the above.

Key Features

• The PlateFix PF150 Balustrade system is side fixed for (face) mounted applications.
• The PlateFix PF150 is 150mm high and 50mm wide with radius ends.
• The inner spacer is 20mm thick and the outer plate 6mm thick.

Material Finish

• Made from 316 grade stainless steel.
• Available in satin or polished finish. A special bead blast finish is available.
• Powdercoated upon request. Note: Powder coating is available in a wide range of colours with commercially available surface integrity warranties from 10 to 30 years.
• All fixings must be Stainless Steel.

Occupancy Type

• Suitable for occupancy types A, B, E, and C3. (subject to glass & fixing type).
• Occupancy Types as per AS/NZ 1170.1.2002.

Windzone

• Exceeds the wind loading for all Wind Zones up to and including Very High Wind Zone as set out in NZS 3604:2011
• Max design Wind pressure subject to glass type and fixing method.

Interlinking Rail

• All monolithic toughened frameless glass balustrades must have an Interlinking Rail to conform to NZS 4223.3.2016, including the latest amendment of NZBC B1.
• Railing and Handrails Systems

Compliance

• Complies with AS/NZS 1170:2002, NZS 4223.3.2016, NZ Building Code B1, F2, F4 and F9

Scope of Use

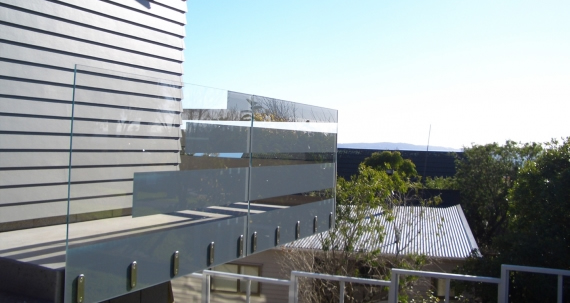

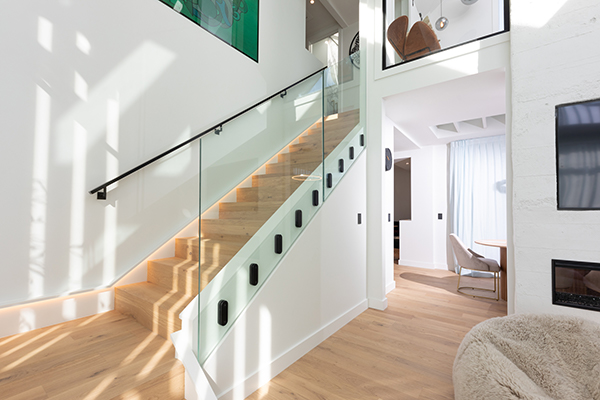

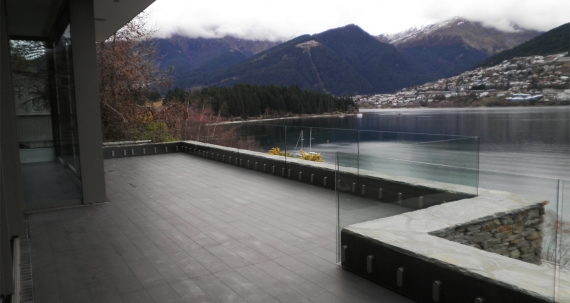

• The PlateFix PF150 system is ideal for external balconies and stairs - as well as for internal stairs and landings. It can be fixed directly to either timber, steel or concrete surfaces.
• When required an interlinking top rail finishes off the system, producing a low profile modern look.
