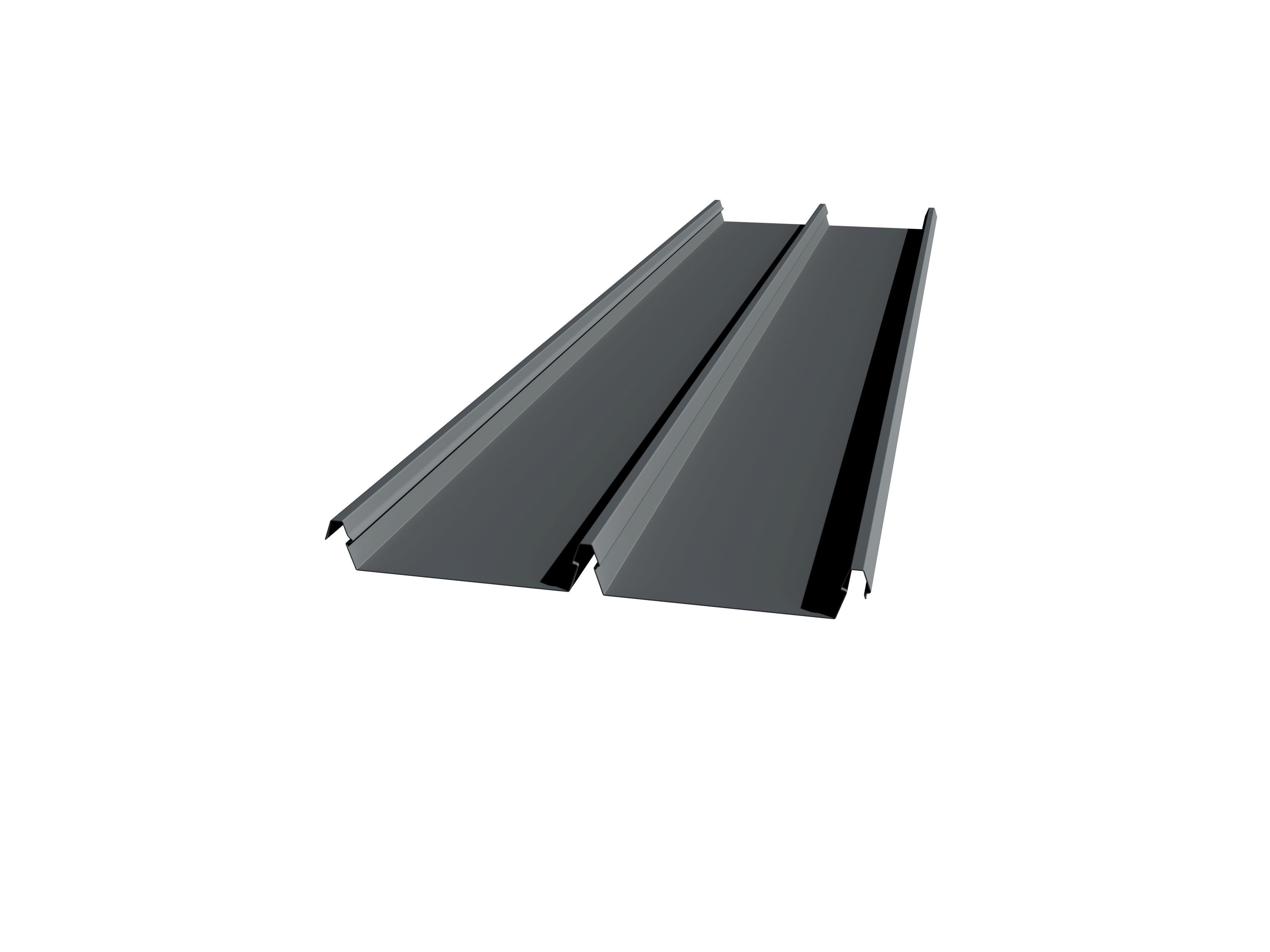

LEGACY has been specifically introduced to complement our Euroline range of roofing products, with their unmistakable eighteenth century standing seam roofing style. It incorporates modern high strength roll forming technology to eliminate the need for supporting plywood substrate and is available in continuous lengths.

An architectural feature of this profile are the undulations in the wide  at pan, which can be expected in this type of roof profile. In some situations indentations caused by the fixing clips or purlins may be noticeable although this will become less apparent with weathering over time.

All Steel & Tube roofing, cladding and rainwater goods manufactured from COLORSTEEL are accredited with Environmental Choice which contributes to Homestar and Greenstar.

Scope of use
LEGACY is a concealed clip fixed trough section roof and wall cladding suitable for:

  • Roof cladding down to a minimum pitch of 3°

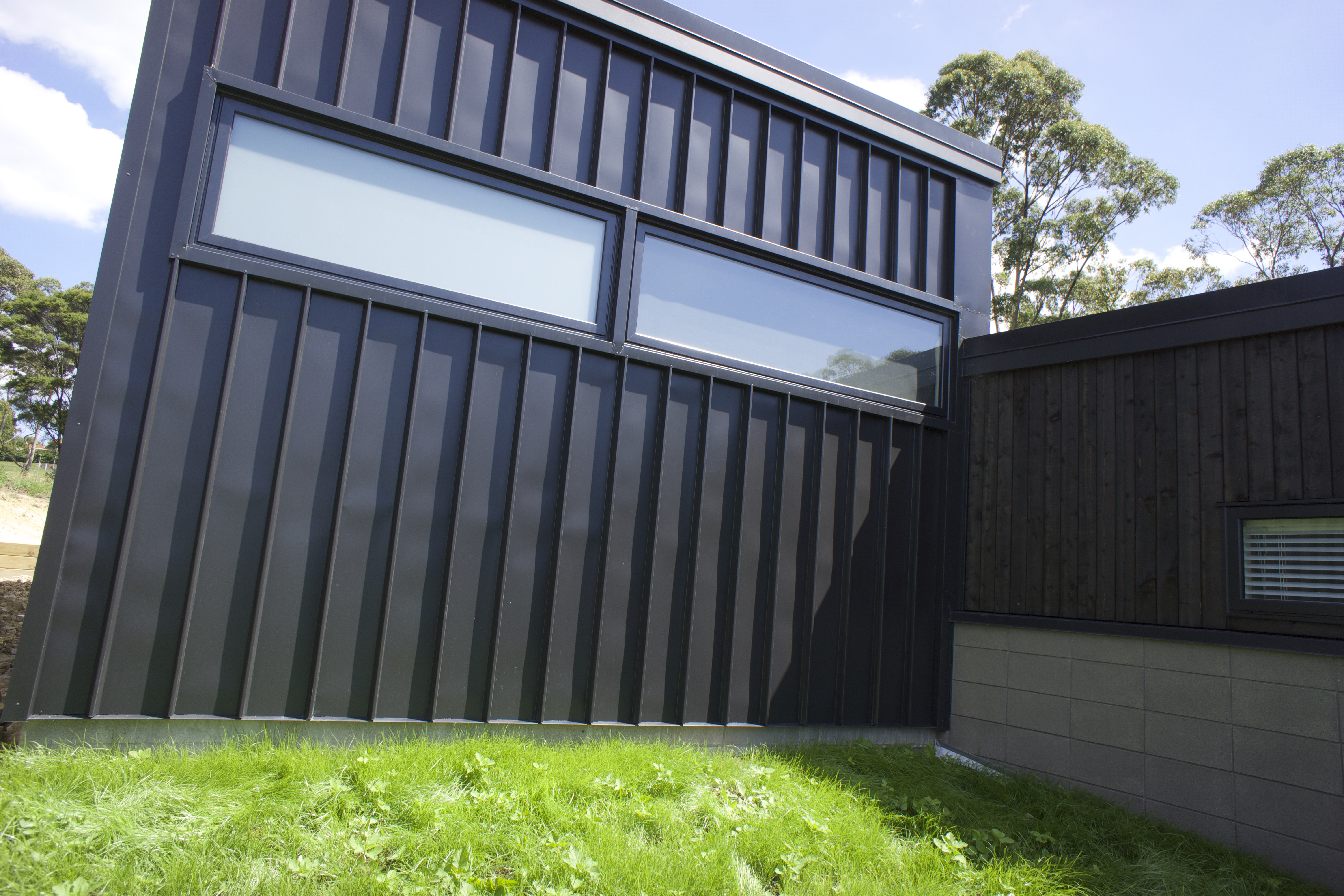

  • Vertical wall cladding installed over a drained cavity. Installation to supports at 600mm spans on buildings within the scope of NZS 3604
  • Available in 0.55 BMT COLORSTEEL®


  • Manufactured in Auckland
  • Minimum pitch 3°
  • 215mm wide flat pan, 50 mm rib and 500mm effective cover
  • Secret fixed trough section profile
  • High tensile steel for greater strength
  • Wider coverage for greater economy
  • Trapezoidal rib for greater stability
  • Can be end lapped
  • Translucent sheeting available to match
  • Available in a wide selection of materials

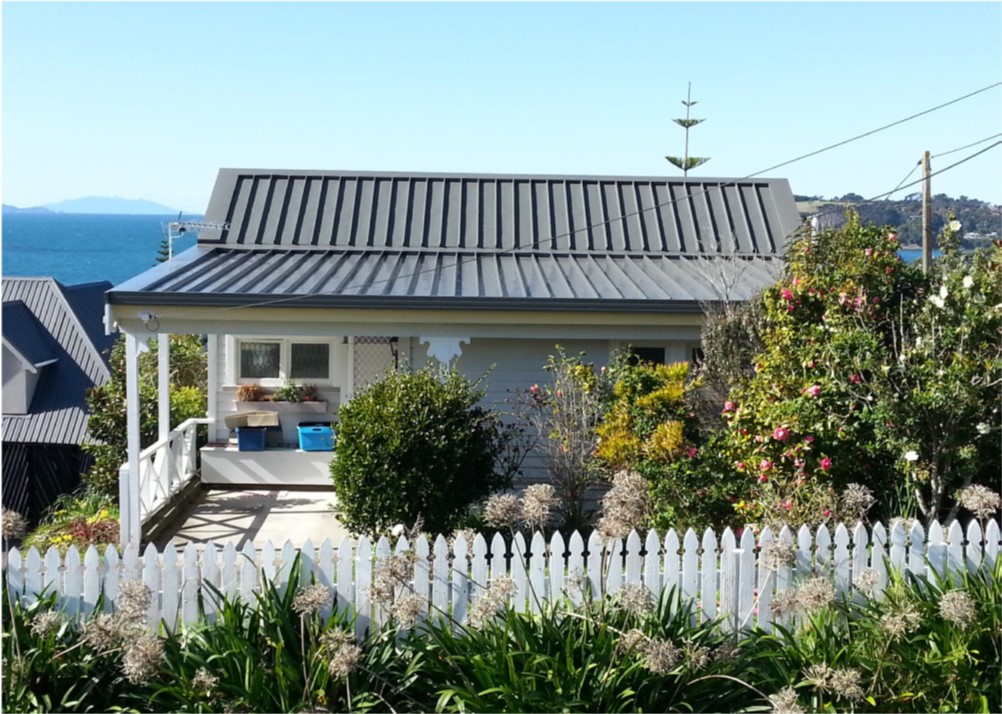

  • Residential roofing and cladding

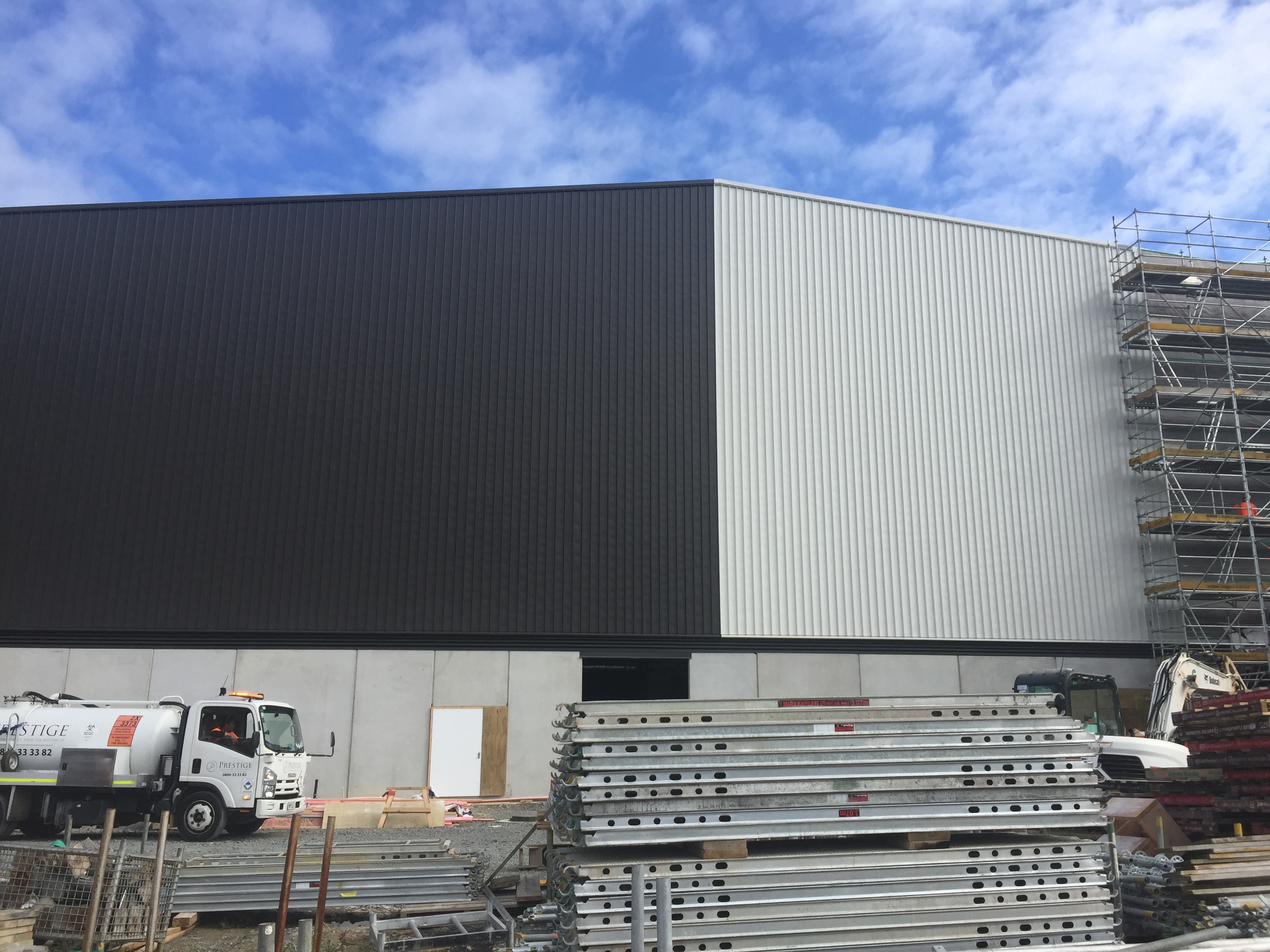

  • Commercial and Industrial cladding
  • Steel & Tube Legacy is available in a variety of materials to suit the environment including galvanised, Zincalume and aluminium
  • A full range of matching accessories are available including ridging, underlays, safety mesh, fasteners and rainwater systems.
