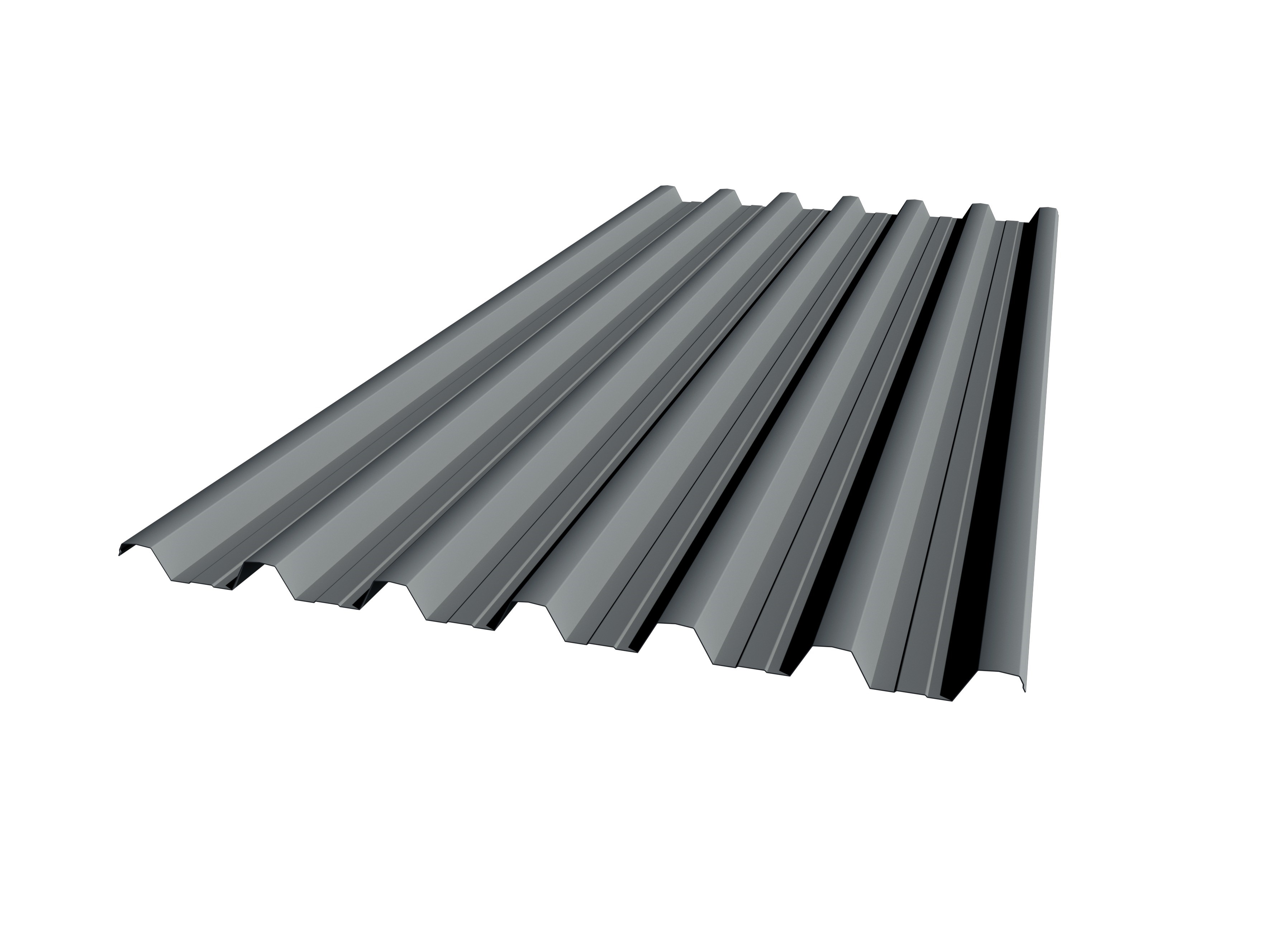

Where larger spans or greater robustness is required, the higher ribbed trapezoidals make their mark.

ST7 and ST900 have medium height ribs of 38mm, giving a bolder look for residential applications and enhanced strength for commercial and industrial work.

ST900 can be manufactured with a subtle swage that adds stiffness to the pan. minimising and purlin line marking

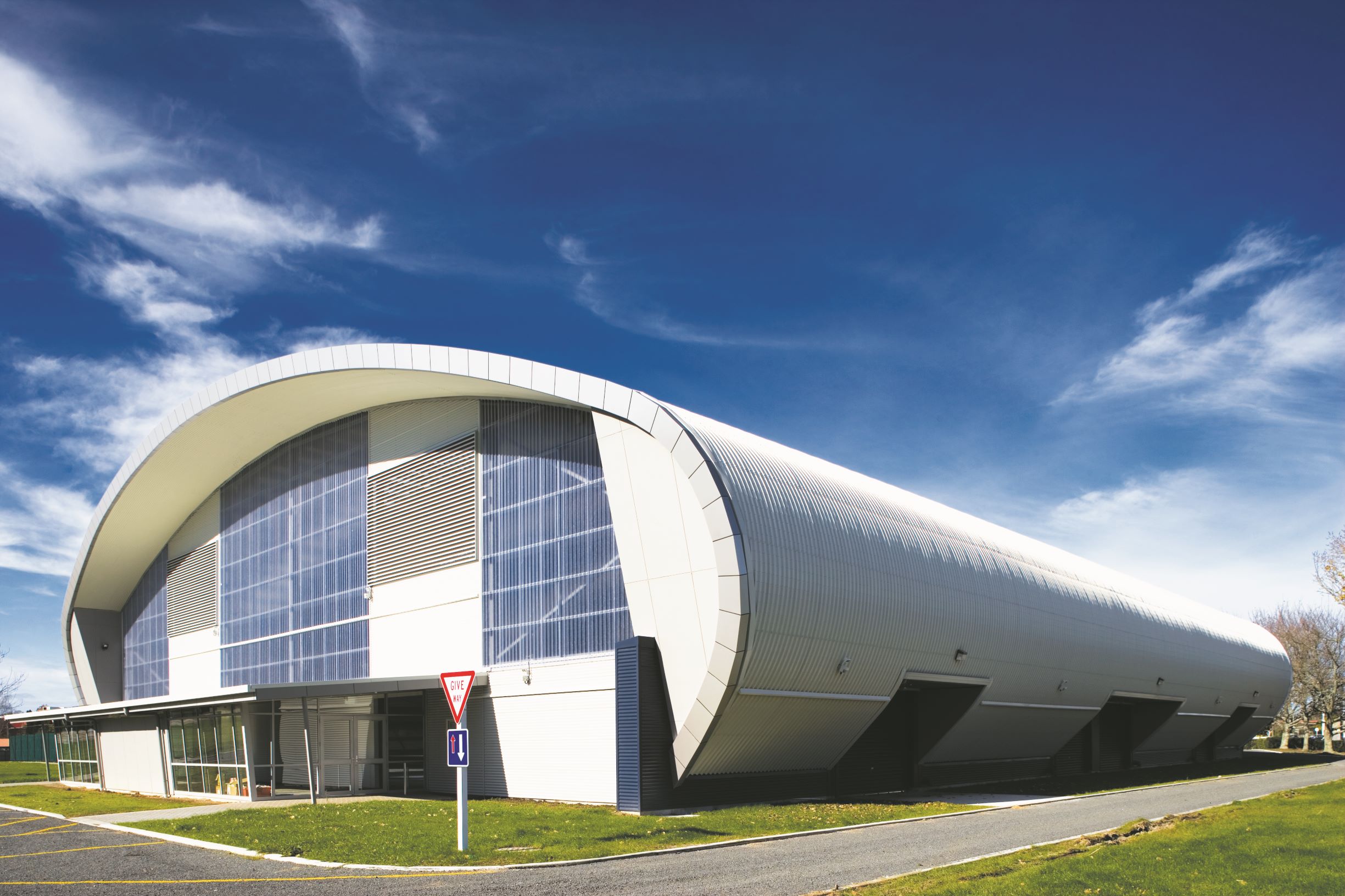

ST900 in .55mm thickness can be crimp-curved to a minimum radius of 400mm.

All Steel & Tube roofing, cladding and rainwater goods manufactured from COLORSTEEL are accredited with Environmental Choice which contributes to Homestar and Greenstar.

KEY FEATURES

• ST900 is manufactured in Auckland and Christchurch
• Minimum pitch 3°.

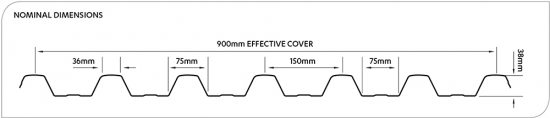

• ST900 has 900mm effective cover
• ST900 has 7 ribs at 38mm height which allows for a higher fastener density for higher wind zones
• Offers a bolder line and greater strength than low rib profiles.
• Popular commercial product due to its looks and performance.
• Distinct capillary groove creates positive water tight lap.
• Easy to attach solar installations for commercial and residential.
• Translucent sheeting available to match

APPLICATIONS

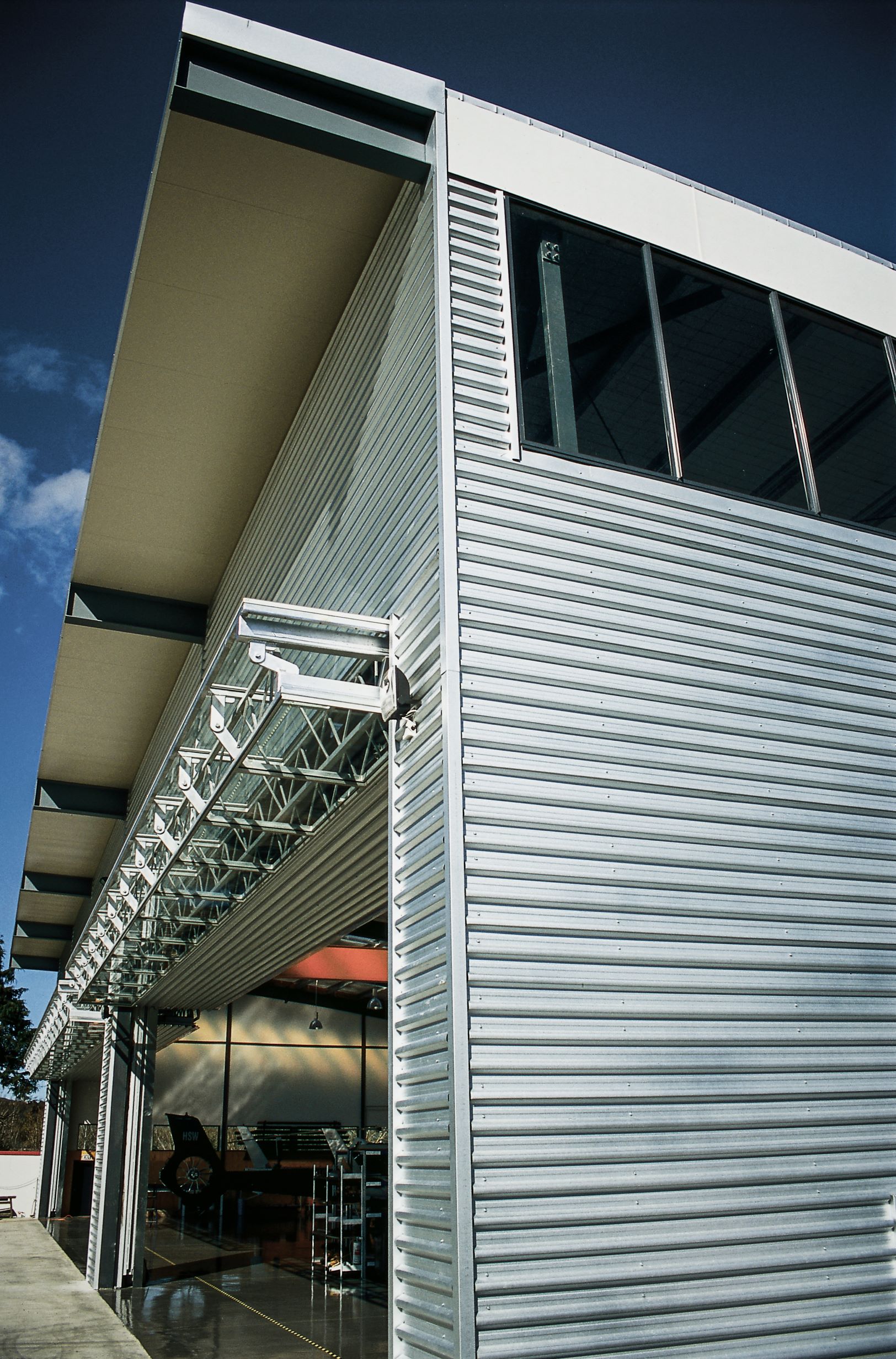

• Commercial and Industrial roofing and cladding
• Residential roofing and cladding
• Drape and Crimp Curving
• Steel & Tube ST900 is available in a variety of materials to suit the environment including galvanised, Zincalume and Aluminium.
• Matching glass reinforced natural lighting sheets are available in trafficable, non-trafficable,thermal and condensation control and fire ratings to suit your project.
• A full range of matching accessories are available including ridging, underlays, safety mesh, fasteners and rainwater systems.
