Hi Rib

Product Description

Click below to access profile families in the following formats (rvt, dwg, pdf).

Technical Resources

Steel & Tube's trough section profiles are designed to meet a variety of needs from low pitch and long lengths to steep pitches where the clean lines are enhanced by the secret fixings.

Legacy, Hi Rib and Kliplok deliver exceptional performance capabilities because they are all manufactured from high tensile steel.

All Steel & Tube roofing, cladding and rainwater goods manufactured from COLORSTEEL are accredited with Environmental Choice which contributes to Homestar and Greenstar.


  • Manufactured in Auckland
  • Minimum pitch 3°

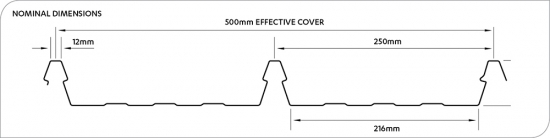

  • 215mm wide swaged pan, 50 mm rib and 500mm effective cover

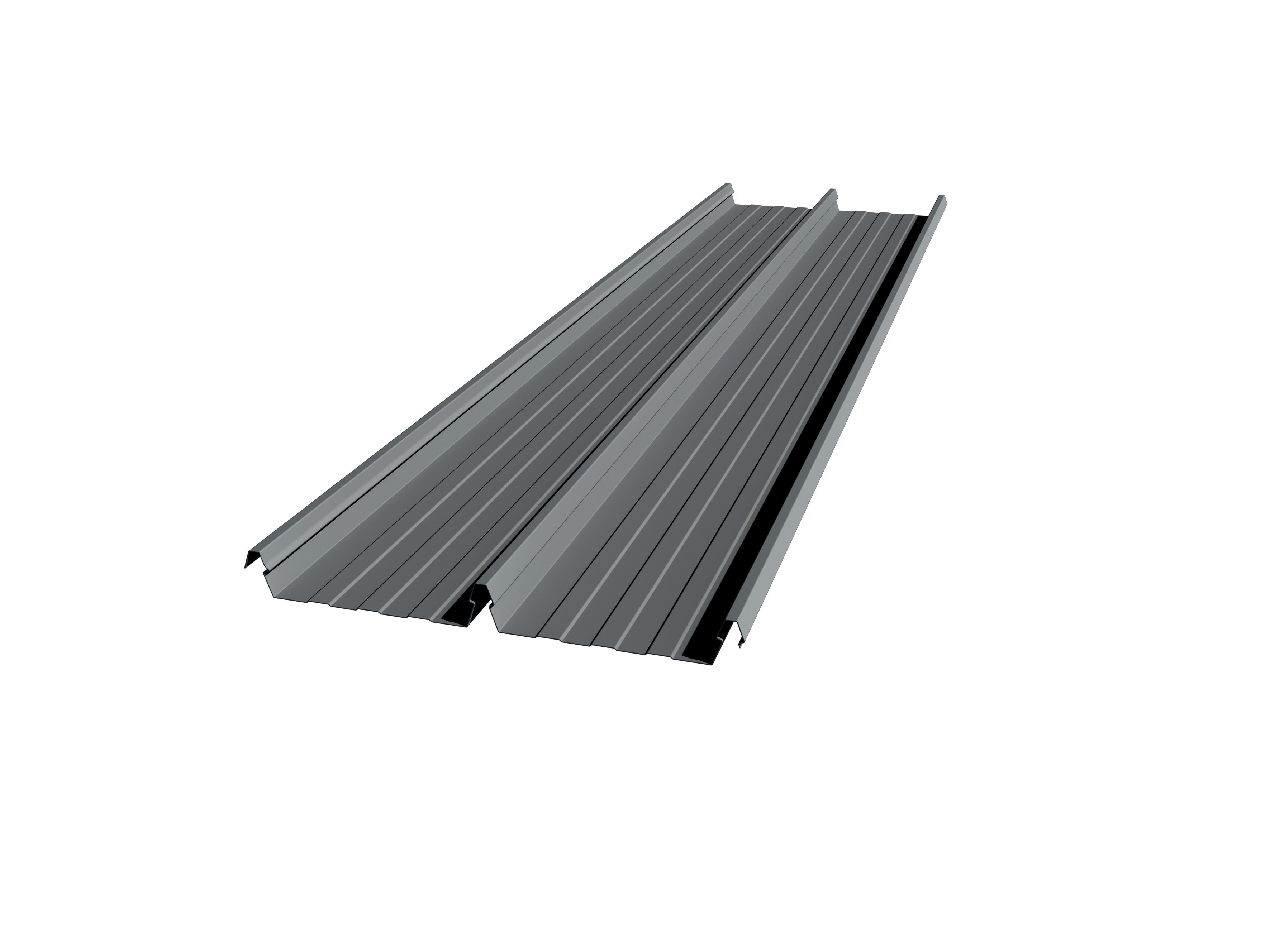

  • Secret fixed trough section profile
  • High tensile steel for greater strength
  • Wider coverage for greater economy
  • Trapezoidal rib for greater stability
  • Can be end lapped
  • Translucent sheeting available to match
  • Available in a wide selection of materials

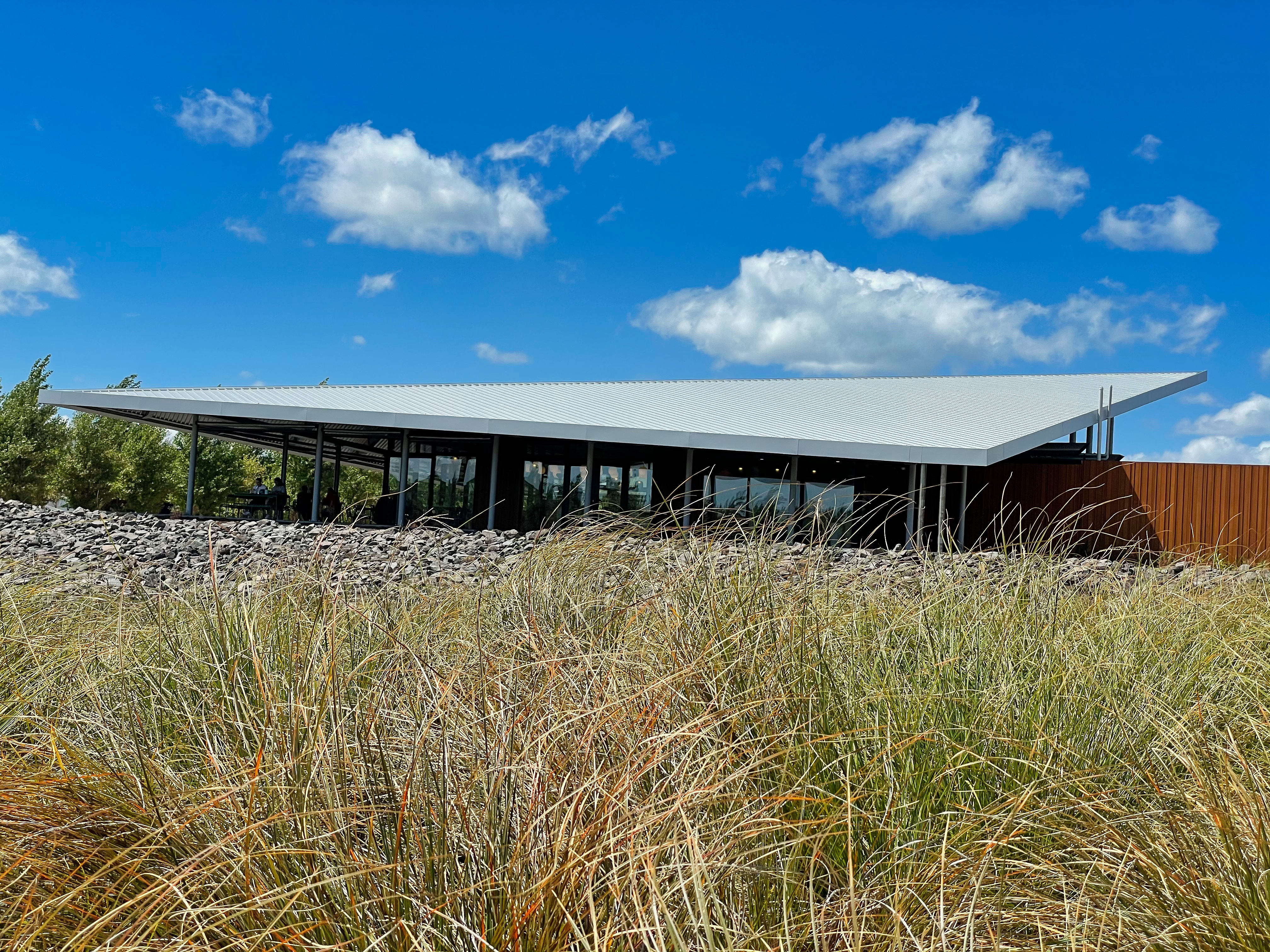

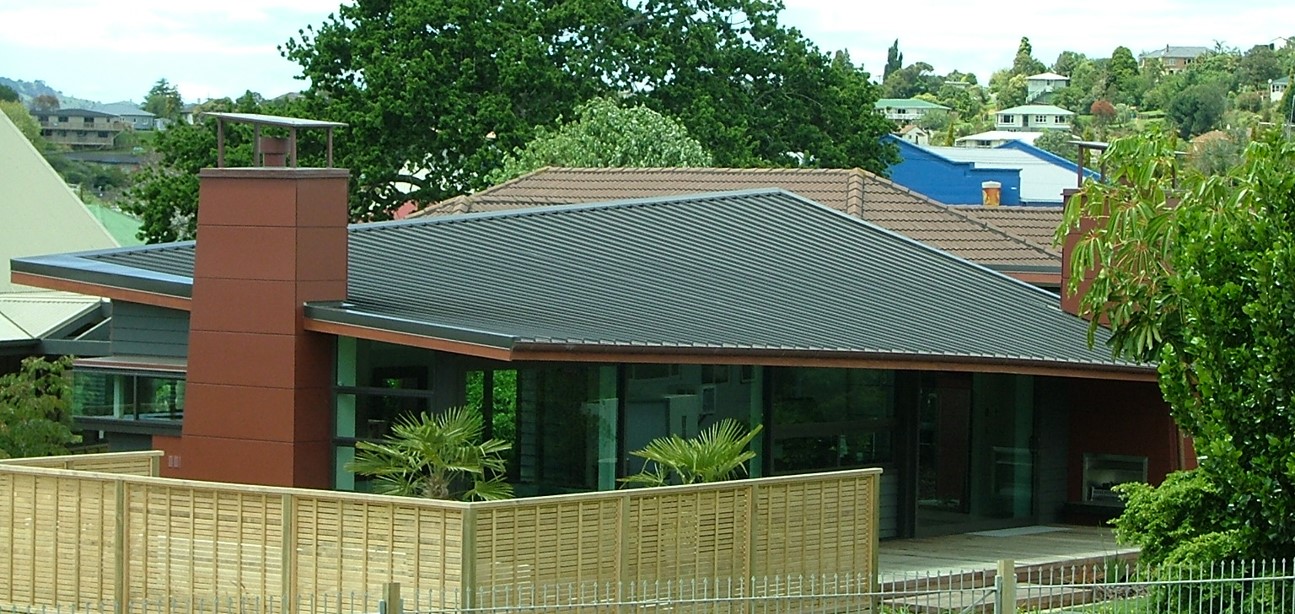

  • Residential roofing and cladding

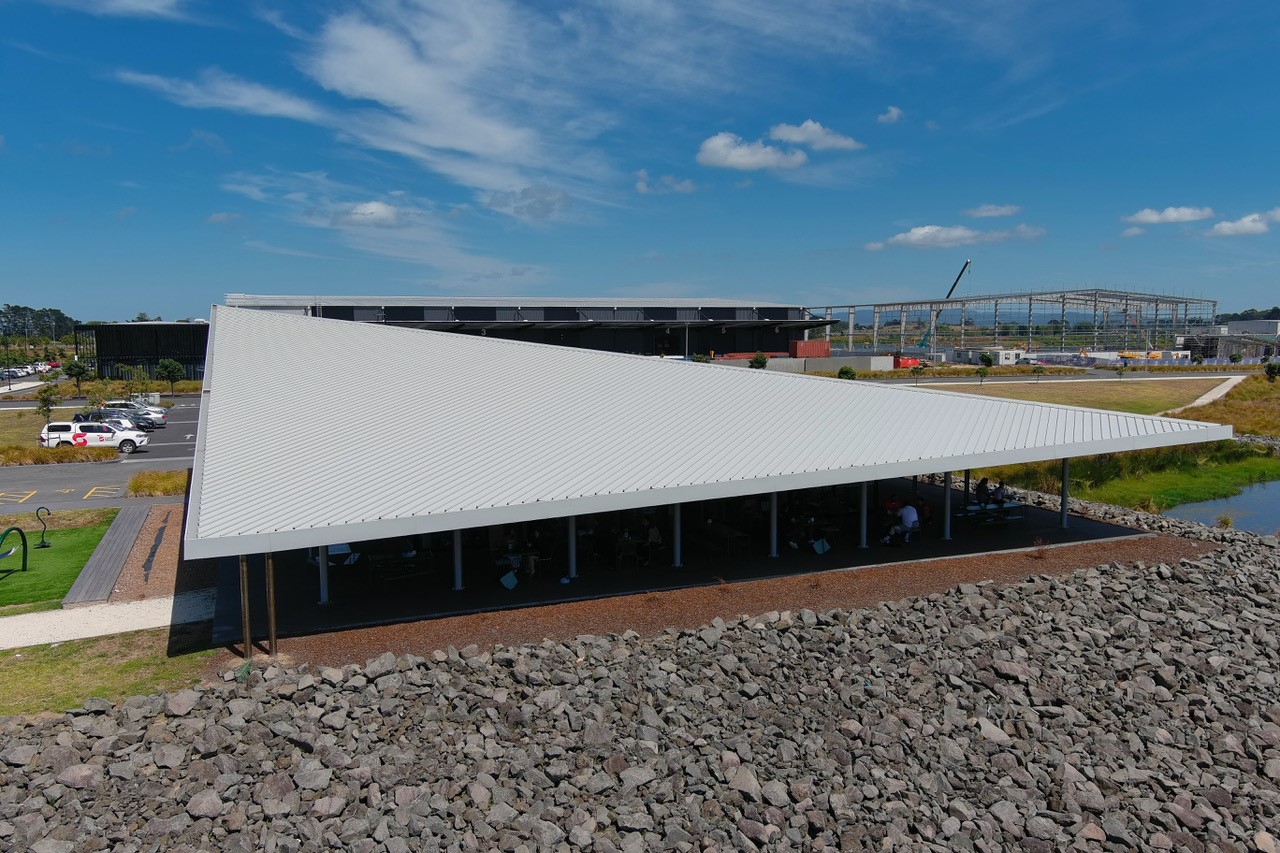

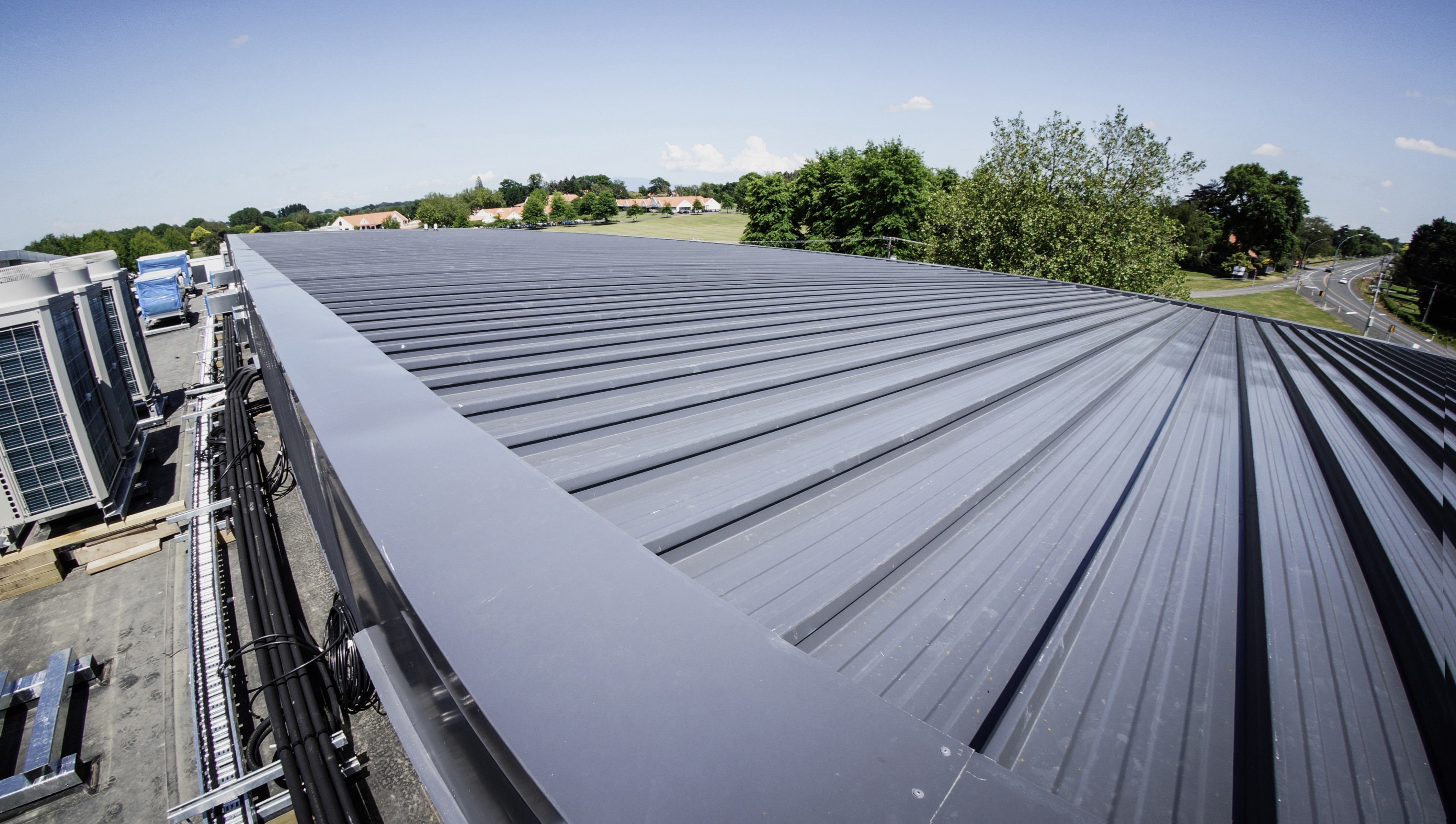

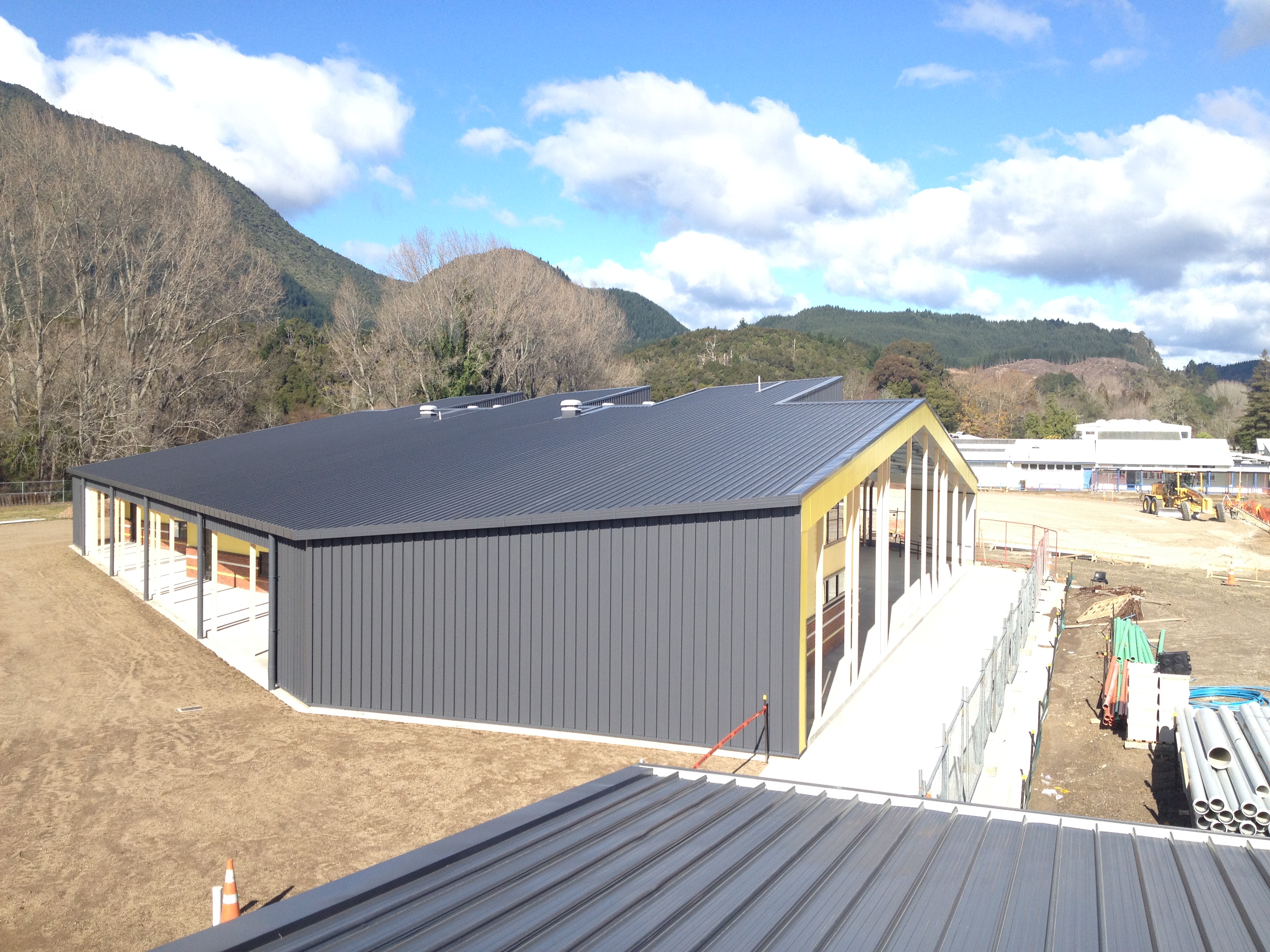

  • Commercial and Industrial cladding
  • Steel & Tube Hi Rib is available in a variety of materials to suit the environment including galvanised, Zincalume and aluminium
  • A full range of matching accessories are available including ridging, underlays, safety mesh, fasteners and rainwater systems.
