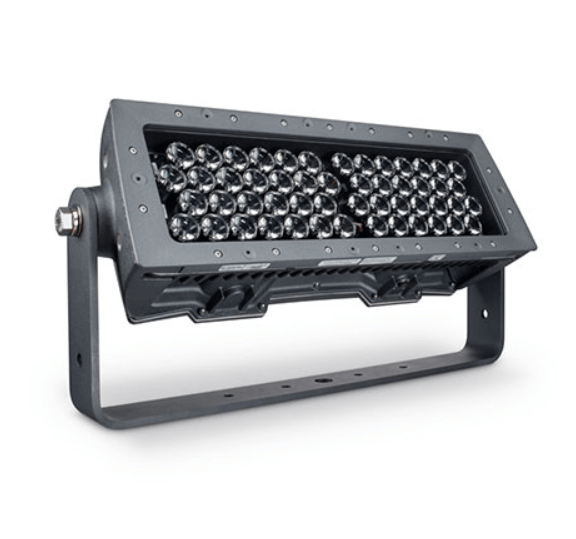

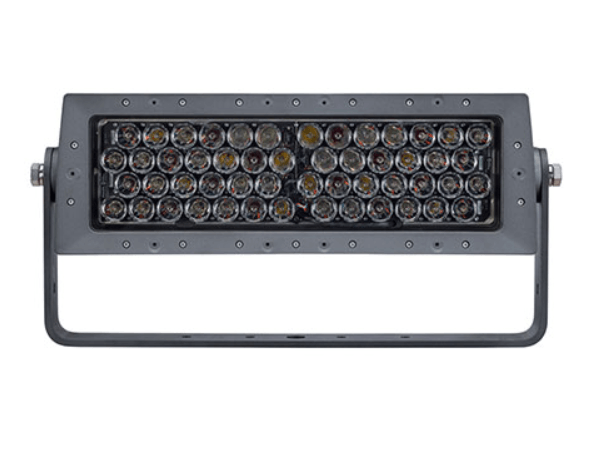

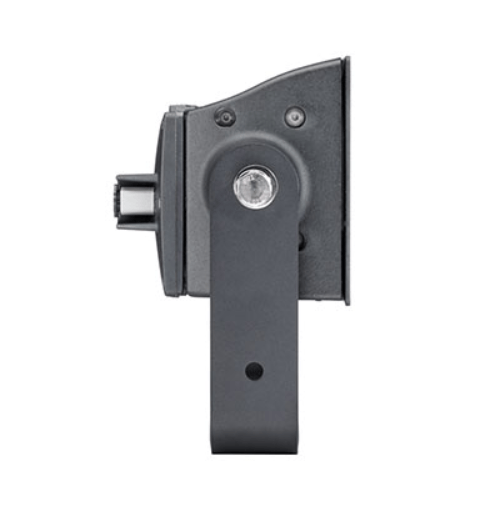

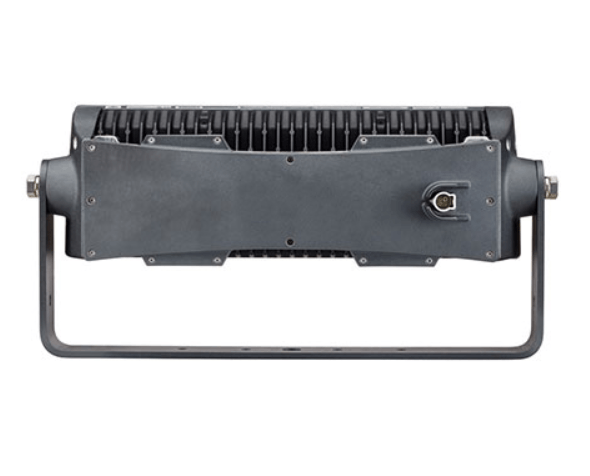

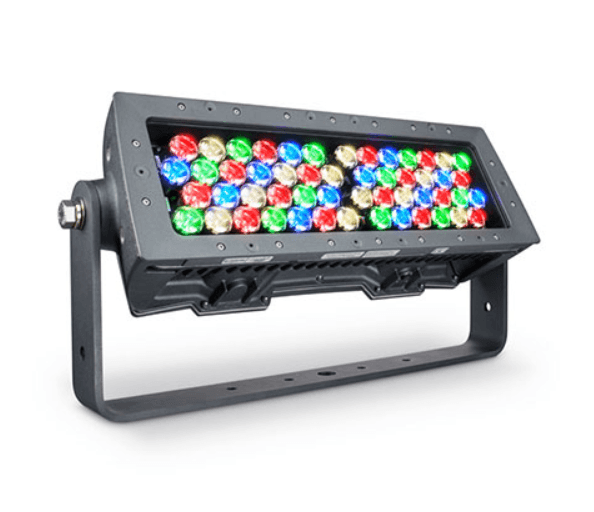

ColorReach Compact Powercore, RGBW

Product Description

ColorReach Compact Powercore combines all the benefits of LED-based lighting and control in a premium exterior long-throw dynamic color-changing luminaire for lighting tall buildings, bridges, and iconic structures. This compact luminaire delivers intense, energy-efficient output at a reasonable price, opening up new possibilities for exterior illumination. ColorReach Compact Powercore offers a range of accessories that allow for customizable beam angles for floodlighting, spotlighting, wall washing, and grazing, along with the efficiency and cost-effectiveness of Powercore technology in a rugged die-cast aluminium housing. Custom configurations with custom channels of white or color LED sources are also available to support special applications.



  • Beam Angle: 5°, 8°, 13°, 23°, 43°, 63°, 5° x 17°
  • Lumens: † 4,550 to 5,553
  • LED Channels: Red/Green/Blue/4000 K
  • Power Consumption: 130 W (CQC), 135 W (UL/CE)
  • Input Voltage: 100 to 277 VAC, auto-ranging, 50/60 Hz
  • Housing Materia:l Extruded anodized aluminium
  • Approbations: UL/cUL, FCC Class A, CE, PSE, CQC, C-Tick
  • Environment: Dry/Damp/Wet Location, IP66
  • Applications: Wall Grazing, Wall Washing
