iColor Flex LMX gen2

Product Description

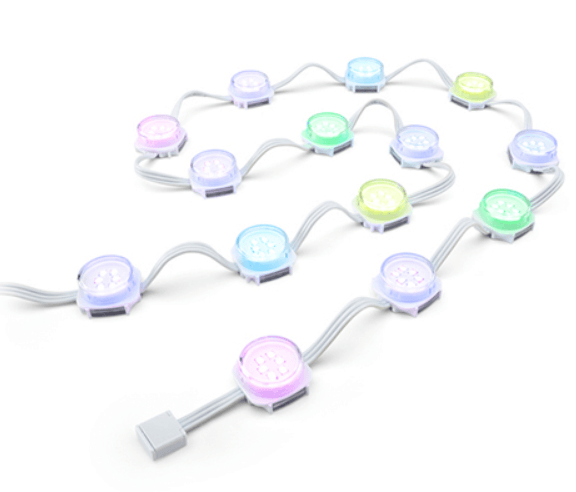

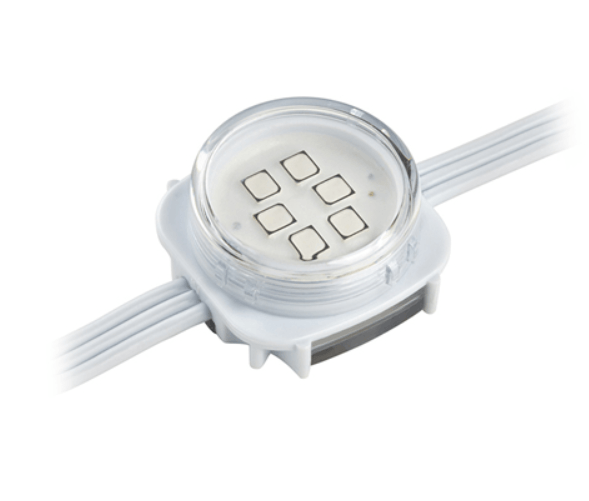

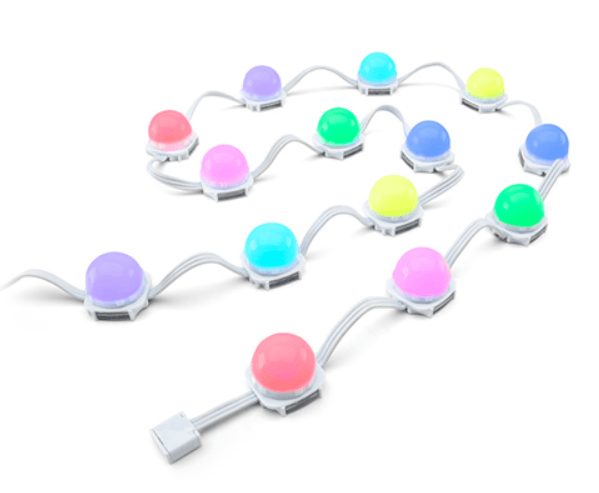

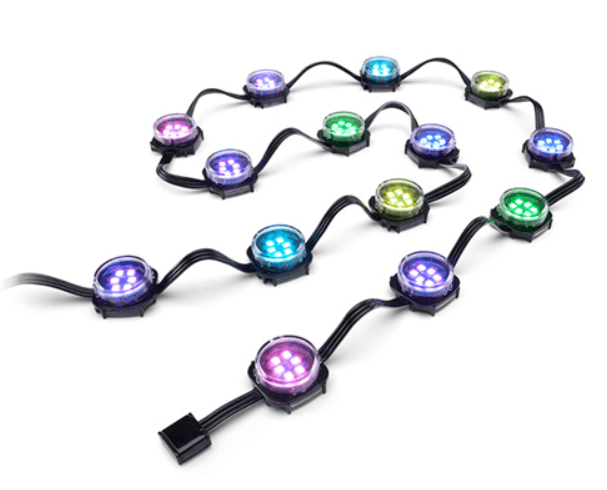

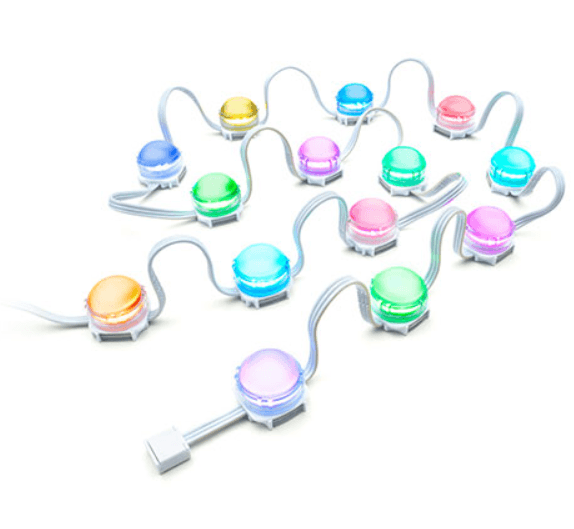

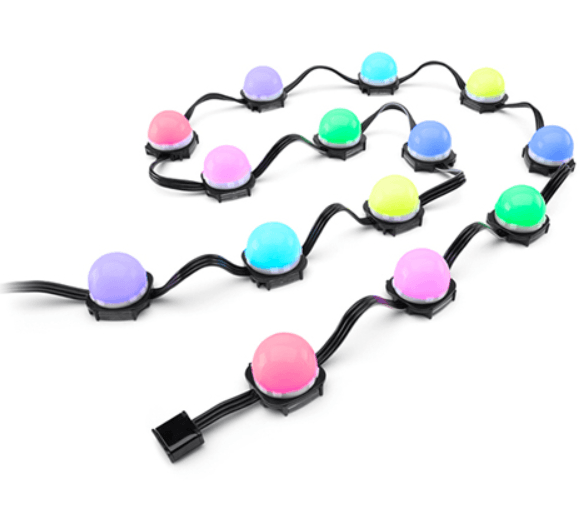

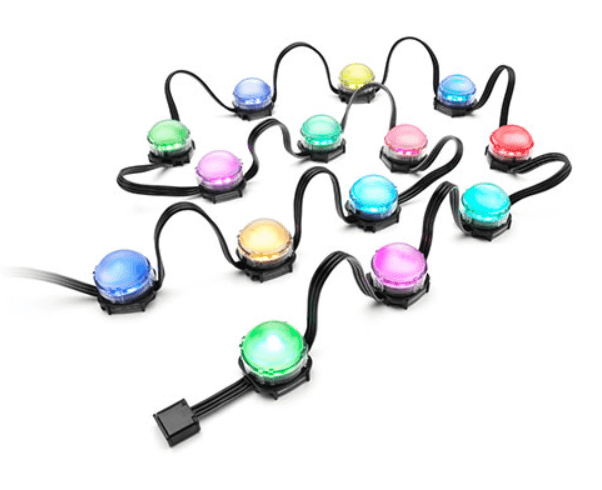

iColor Flex LMX gen2 are flexible strands of large, highintensity, full-color LED nodes designed for extraordinary effects and expansive installations without the constraints of luminaire size, shape, or space. Each iColor Flex LMX gen2
strand consists of 50 individually addressable LED nodes, featuring dynamic integration of power, communication, and
control. The flexible form factor accommodates two- and three-dimensional configurations, while high light output
affords superior long-distance viewing for architectural accent and perimeter lighting, large-scale signage, and buildingcovering video displays.


Viewing Angle
  • iColor Flex MX gen2 and eW Flex Micro - 105°, 165°
  • iColor Flex LMX gen2 and iW Flec Compact - 36°, 105°, 165°
  • eW Flex Compact - 36°, 105°, 200°
LED Channels iColor Flex MX gen2, iColor Flex LMX gen2 -
  • iW Flex Compact - 2700 K and 6500 K
  • eW Flex Compact - 2700 K, 3000 K, 3500 K, 4000 K
  • eW Flex Micro - 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, 5700 K
Input Voltage iColor Flex MX gen2 - 7.5 VDC via sPDS-480ca, and PDS-60ca
All others - 24 VDC via PDS-60ca 24V, sPDS-60ca 24V, sPDS-480ca 24V, or CM-150 CA 24V

Housing Material: Polycarbonate

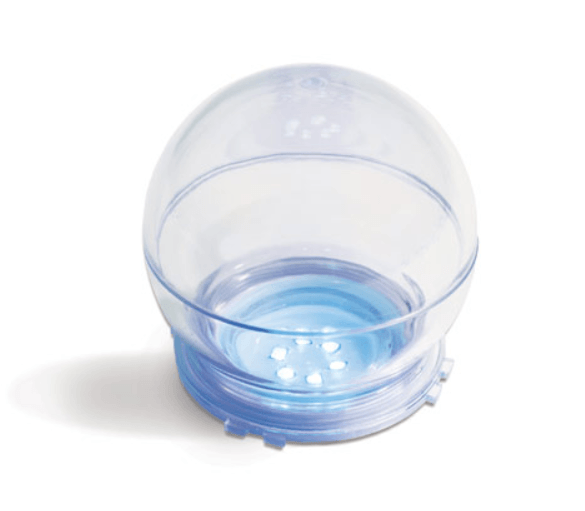

Lens: Clear or Translucent UV-protected polycarbonate

Approbations: UL/cUL, FCC Class A, CE

Environment: Dry/Damp/Wet Location, IP66


See more information like weight and node dimension in the family product guide.
