Trespa Profix TS10 Concealed Fixed Weatherboard Facade System

Product Description

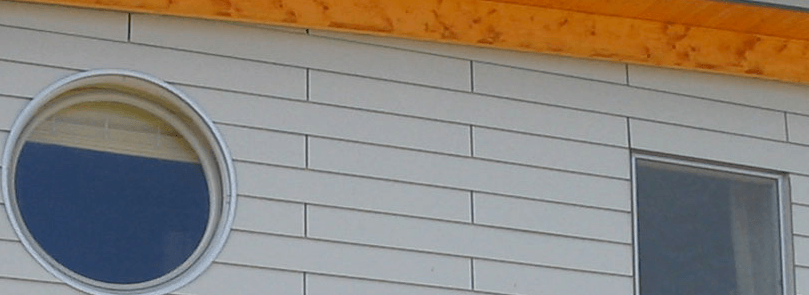

Profix TS10 Concealed fixed weatherboard facade system, is a unique aluminium rail system that ventilates and drains at each horizontal lap. Specifically designed for use with Trespa® Meteon®, the panels are creatively machined in length to form horizontal weatherboards that can be varied in width and length to suit many configurations and colour options creating a traditional or ultramodern look to your cladding system. Profix Systems are tested to AS/NZS 4284 and compliant with the requirements of NZBC sections B1 Structure, B2 Durability and E2 External Moisture.

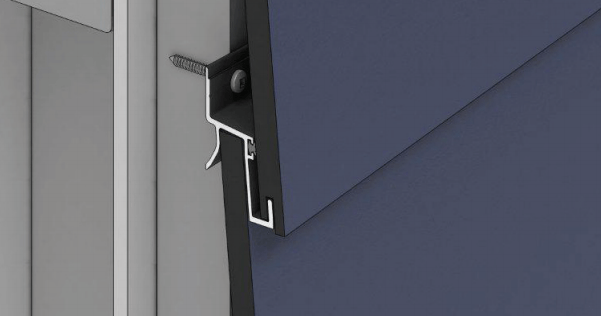

TS10 rails are fixed independently to a 35mm timber cavity batten that enables the façade to be fixed without penetrating the air seal or framing. All weatherboard panels are grooved on edge providing easy engagement into the TS10 horizontal rail. Panels are ship-lapped at vertical joints to effectively weatherproof the joint whilst allowing for movement between panels.

TS10 is further enhanced with an extensive range of Trespa® Meteon® colours and a full range of anodised flashing components for windows and internal and external corners.

Scope: Where to use TS10

  • Suitable for use as a residential or commercial cladding façade up to 4 levels
  • Fixed over a Rigid Air Barrier compliant with NZBC E2/AS1/Table 23: 1 August 2011 and NZS 3604:2011
  • Approved for use in wind zones up to 2.5 kPa ULS wind pressure or 64.5 m/s with reference to AS/NZS 4284
  • For use in wind zones exceeding 2.5kPa wind pressure the system and fixings must be specified as site specific by the system suppliers
  • Suitable for use in all environments including sea spray and geothermal zones
  • Suitable for use with 10mm Trespa® Meteon® in panel widths from 150mm – 750mm wide and lengths up to 3.630m
