Trespa Profix TS20 Concealed Fixed Flat Panel Facade System

Product Description

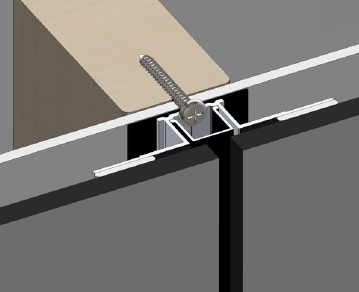

Trespa Profix TS20 Concealed fixed flat panel façade system is a unique 20mm aluminium vertical rail system specifically designed for use with Trespa® Meteon® panels. TS20 offers a cost effective method for fixing Trespa® Meteon® panels with a vertical set out and up to a maximum height of 4.6 meters. Profix Systems are tested to AS/NZS 4284 and compliant with the requirements of NZBC sections B1 Structure, B2 Durability and E2 External Moisture.

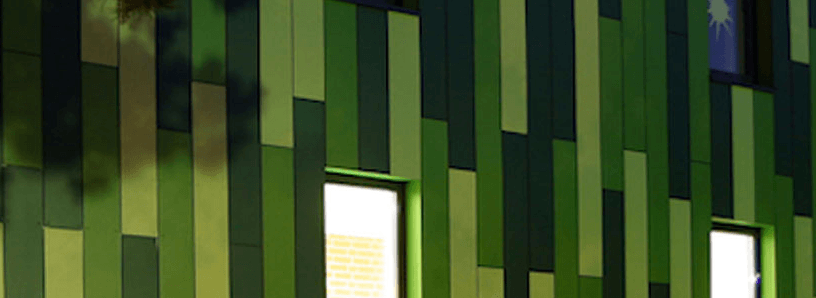

TS20 is perfect for single storey buildings, parapets and all simple low level construction. Panels are configured vertically with either a ship-lapped or expressed vertical joint. Horizontal joints are formed with a simple horizontal shiplap that enables panels to extend to 4.6 meters high. Panels can be configured creatively to utilise various colours and widths to enhance even the simplest build, adding colour and tonal variation.

TS20 is further enhanced with an extensive range of Trespa® Meteon® colours and a full range of flashing components for windows and internal and external corners. A range of powder coated colour finishes can be selected for the aluminium rail and flashing components.

Scope: Where to use TS20

  • Suitable for use as a residential or commercial cladding façade up to 4.6 meters
  • Fixed over a Rigid Air Barrier or Building wrap compliant with NZBC E2/AS1/Table 23: 1 August 2011 and NZS 3604: 2011 as follows:

With Building Wrap:

  1. Up to “Very High” wind zone at 50 m/s or
  2. 1.5 Kpa ULS wind pressure

With Rigid Air Barrier:

  1. Up to “Extra High” wind zone at 55 m/s or
  2. 1.8 Kpa ULS wind pressure
  • For use in wind zones exceeding 1.8 Kpa wind pressure the system and fixings must be specified as site specific by the system suppliers
  • Suitable for use in all environments including sea spray and geothermal zones
  • Suitable for use with either 8.0mm or 10mm Trespa® Meteon® in vertical panel sizes up to 2.5m x 1.2m. The use of panel sizes exceeding 2.5m must be specified as site specific by the system suppliers
