Sunclear - Corrugated PVC, Plastic Roofing & Skylights
Product Description
Sunclear - Corrugated PVC, Plastic Roofing & Skylights by Ampelite is a corrugated sheeting product which can be used for roofing, cladding, and skylighting, protecting your outdoor living areas from wind and rain so that they can be enjoyed all year round. Because Sunclear corrugated PVC sheeting is clear, it allows natural light in and can be used in places where you still require the light of day, such as pergolas, windbreaks, and carports.
Planning

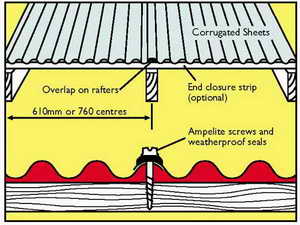

Sunclear corrugated PVC sheeting is good value: it is inexpensive, lightweight, and easy to handle or store, so even bigger projects, such as creating an outdoor living area or a carport, can become a satisfying and satisfactory DIY job. Sunclear is available with effective sheet coverage of 610mm or 760mm. Before ordering materials and commencing to build, please check the spanning table below which will give you the maximum distance between battens and purlins. The sheet’s length and the sheet coverage table will help you calculate how many sheets you will need.
SUNCLEAR INFORMATION | ||||
PROFILE | COLOURS | LENGTHS (M) | COVER (mm) | |
Corrugated | Clear | 1.8, 2.4, 3.0, & 3.6 | 610 & 760 | |
SPANNING CAPACITY (BETWEEN PURLINS) | ||||
MAX SPAN | CORRUGATED 610 & 760 | 750mm | ||

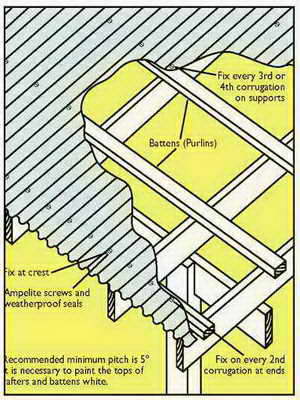

The span between battens and supporters should not exceed the above measurements and have a minimum fall of 5 degrees. |
||||
SHEET COVERAGE TABLE 610mm | ||||
1 sheet | 2 sheets | 3 sheets | 4 sheets | 5 sheets |
660mm | 1270mm | 1880mm | 2490mm | 3100mm |
SHEET COVERAGE TABLE 760m | ||||
1 sheet | 2 sheets | 3 sheets | 4 sheets | 5 sheets |
810mm | 1570mm | 2330mm | 3090mm | 3850mm |
