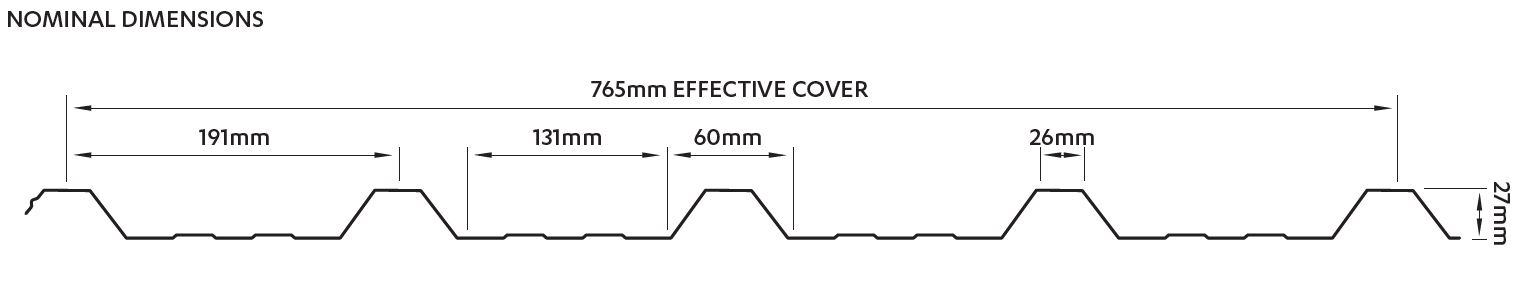

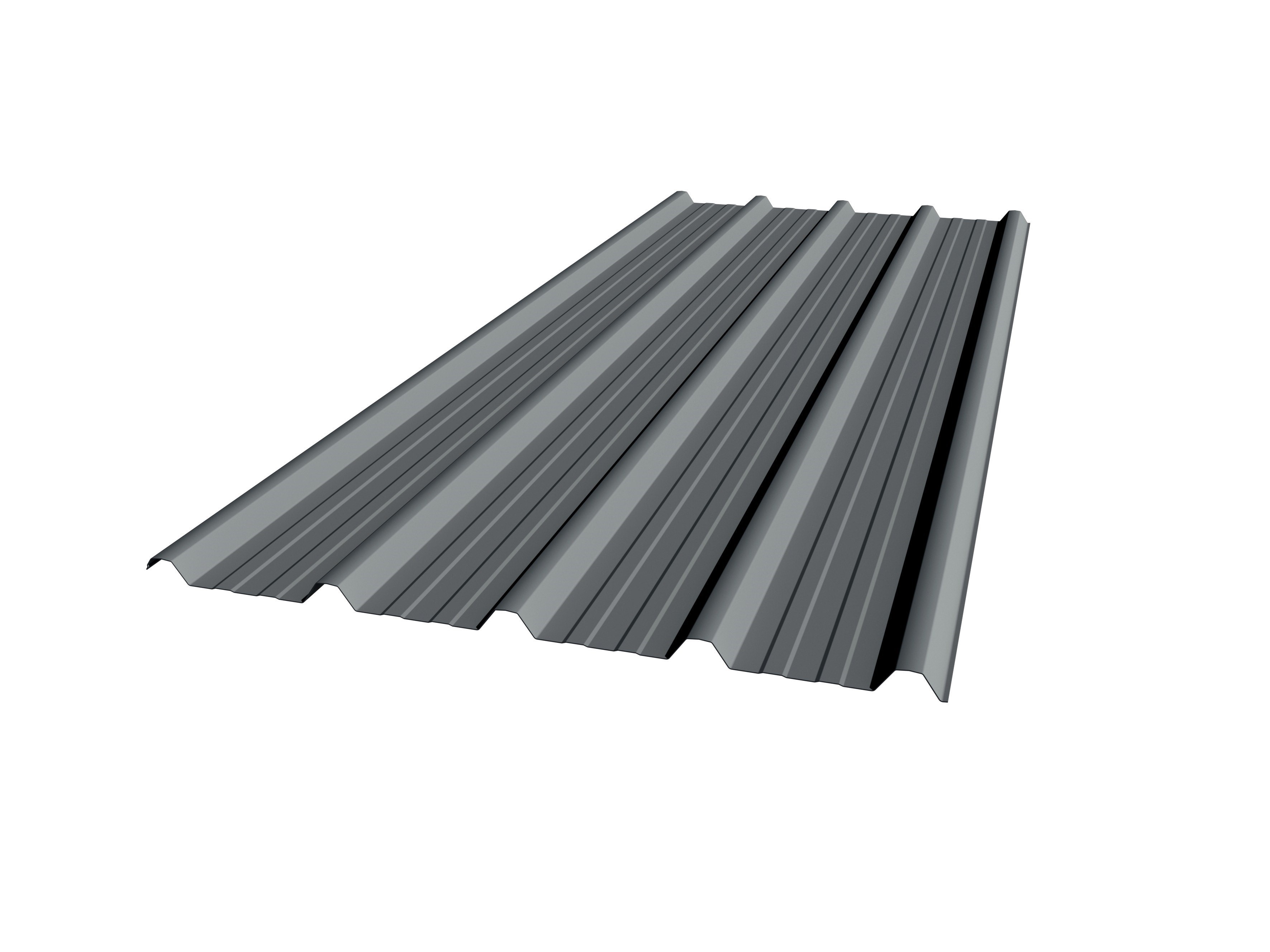

Plumbdek is a five-ribbed trapezoidal rib profile with a 27 mm rib height and 765mm effective cover. Plumbdek is typically utilised in domestic roofing, or commercial roofing and cladding applications where spanning ability is not a prime requirement.

Steel & Tube Roofing offers four trapezoidal rib products with rib heights varying between 20mm and 30mm manufactured at different locations throughout New Zealand.

All Steel & Tube roofing, cladding and rainwater goods manufactured from COLORSTEEL are accredited with Environmental Choice which contributes to Homestar and Greenstar.

KEY FEATURES

• Manufactured in Auckland, Tauranga and Christchurch
• Minimum pitch 3°
• Top coverage in its class for best economy
• Can be crimp curved to 400mm radius
• Translucent sheeting available to match

APPLICATIONS

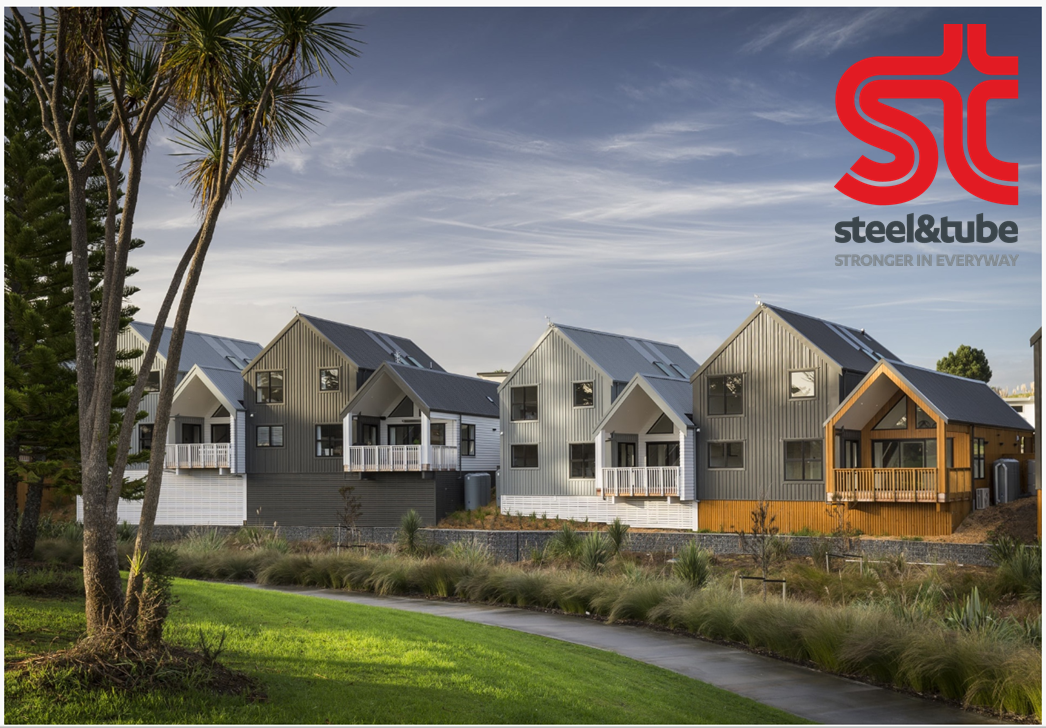

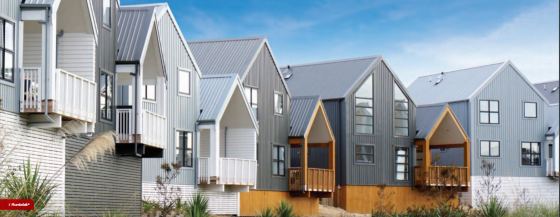

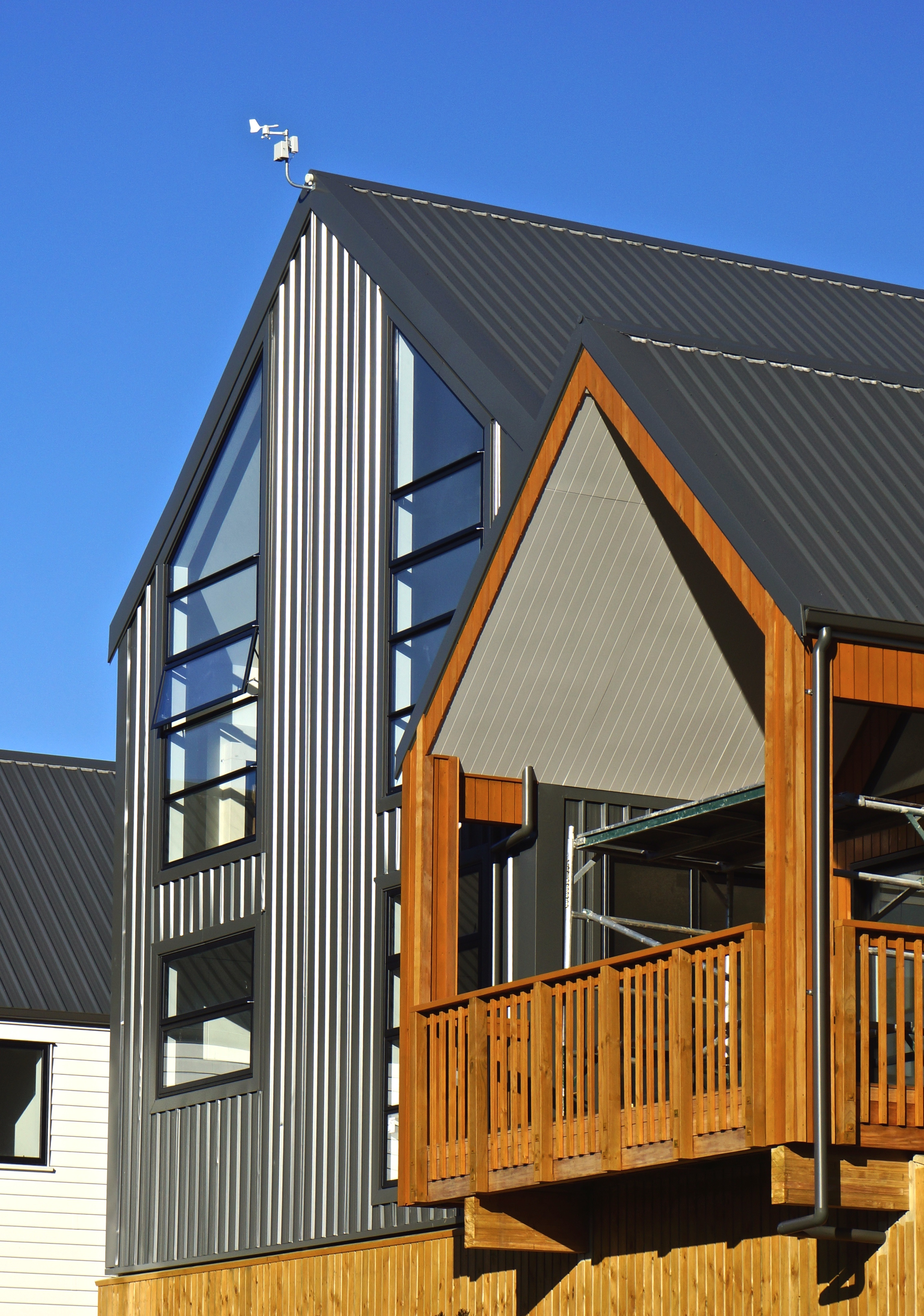

• Residential roofing and cladding

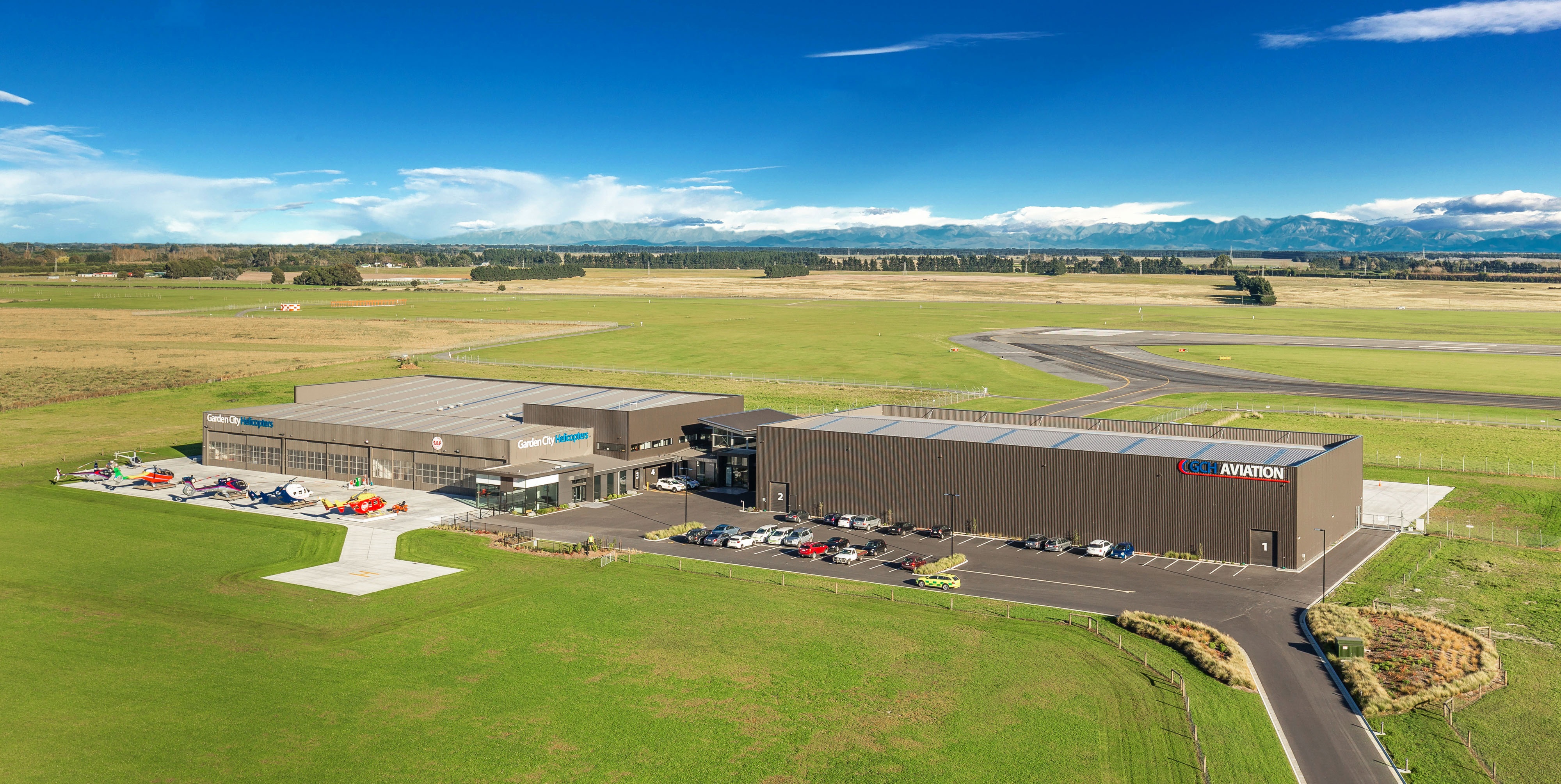

• Commercial and Industrial roofing and cladding
• Drape curving
• Steel & Tube Plumbdek is available in a variety of materials to suit the environment including galvanised, Zincalume and aluminium
• Matching glass reinforced natural lighting sheets are available in trafficable, non-trafficable, thermal and condensation control and fire ratings to suit your project.
• A full range of matching accessories are available including ridging, underlays, safety mesh, fasteners and rainwater systems.
