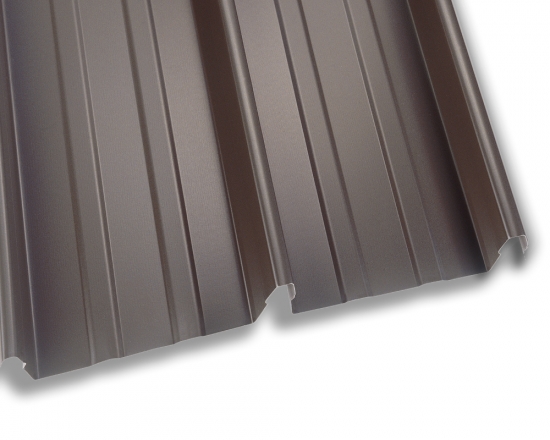

Steel & Tube's trough section profiles are designed to meet a variety of needs from low pitch and long lengths to steep pitches where the clean lines are enhanced by the secret fixings.

Legacy, Hi Rib and Kliplok deliver exceptional performance capabilities because they are all manufactured from high tensile steel.

All Steel & Tube roofing, cladding and rainwater goods manufactured from COLORSTEEL are accredited with Environmental Choice which contributes to Homestar and Greenstar.

KEY FEATURES

• Manufactured in Wellington
• Minimum pitch 3°

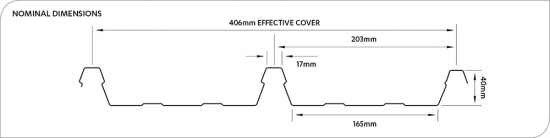

• 165mm wide swaged pan, 40 mm rib and 406mm effective cover

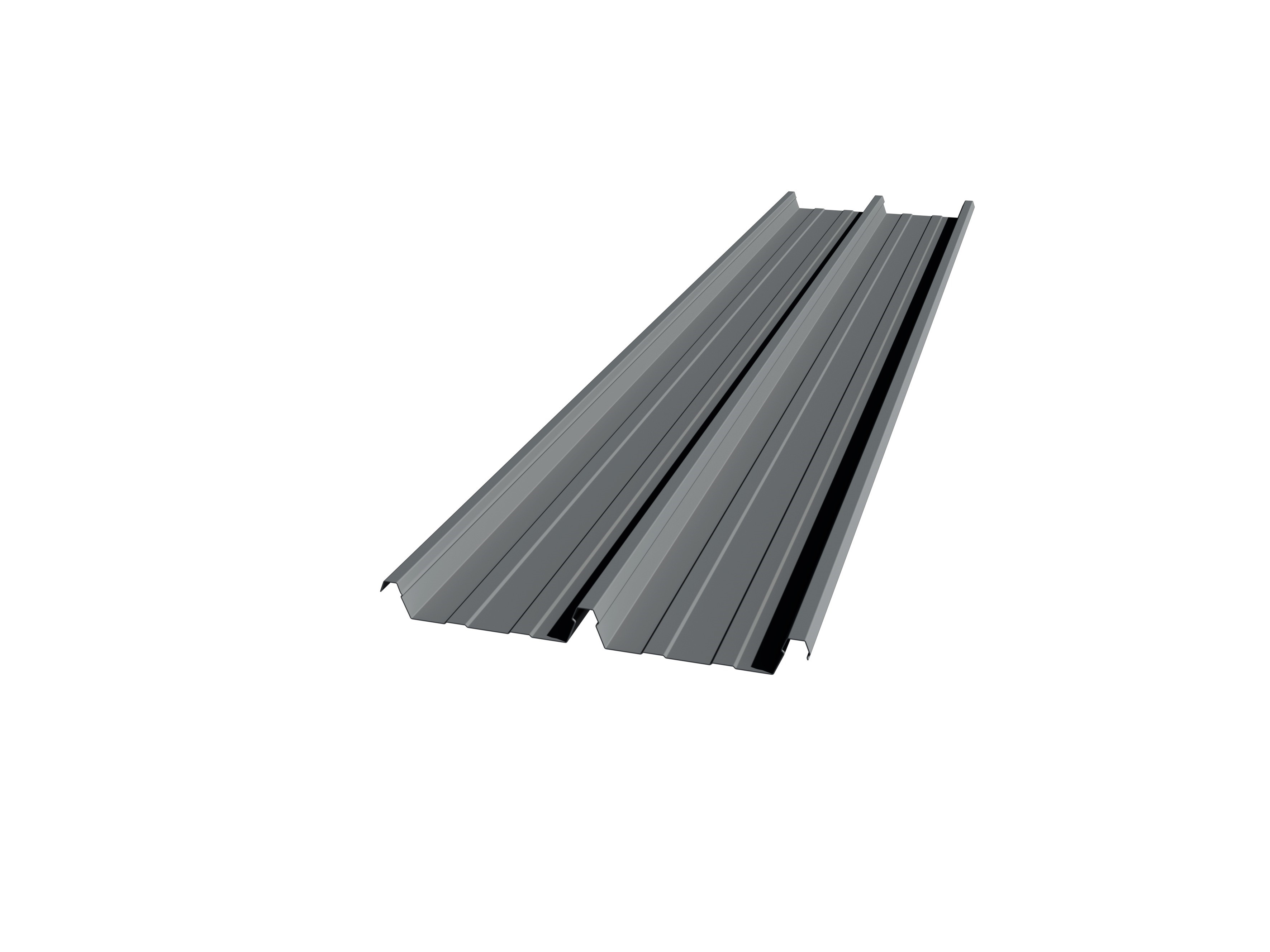

• Secret fixed trough section profile
• High tensile steel for greater strength
• Trapezoidal rib for greater stability
• Can be end lapped
• Minimum pitch 3°
• Available in a wide selection of materials
• Translucent sheeting available to match

APPLICATIONS

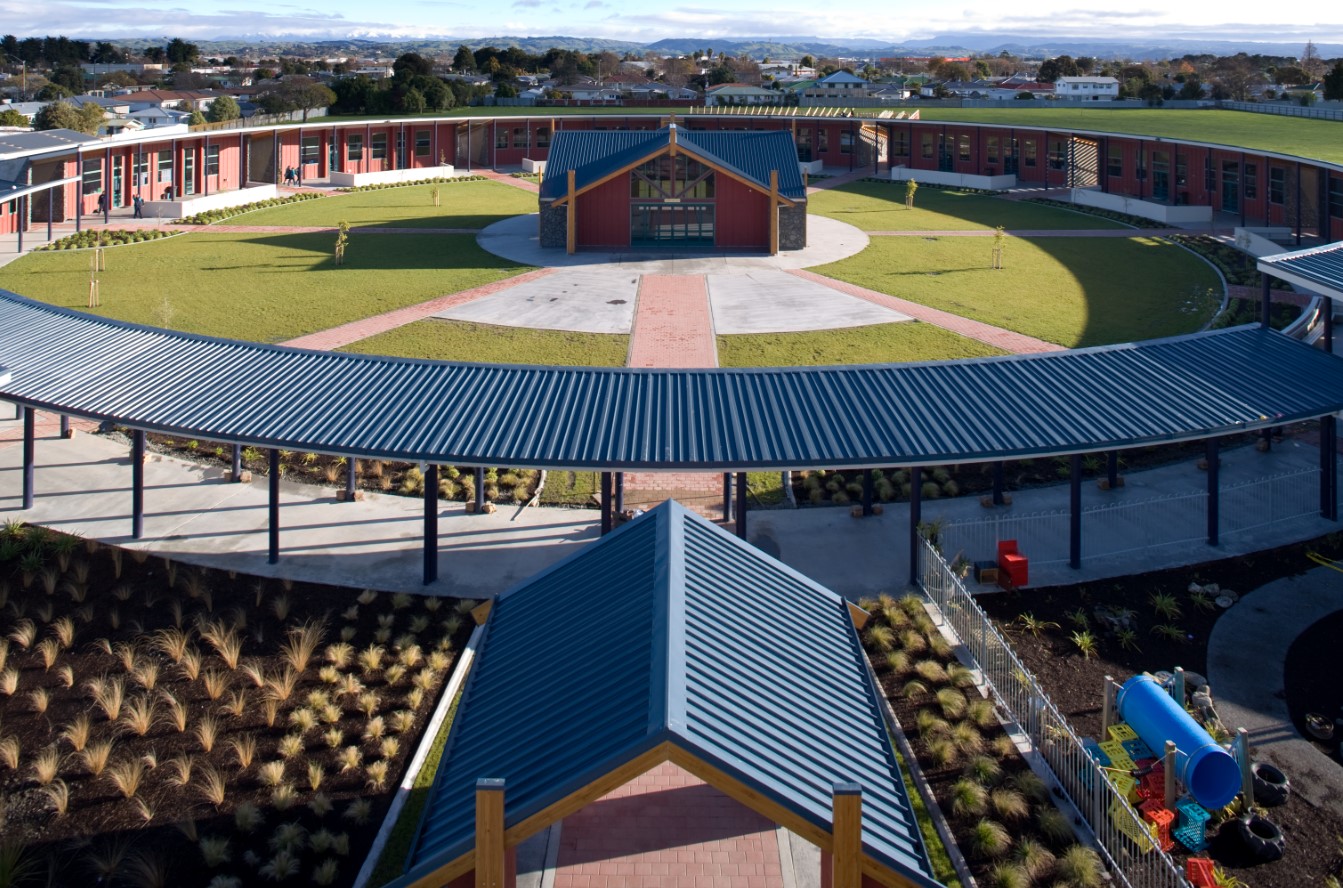

• Residential roofing and cladding

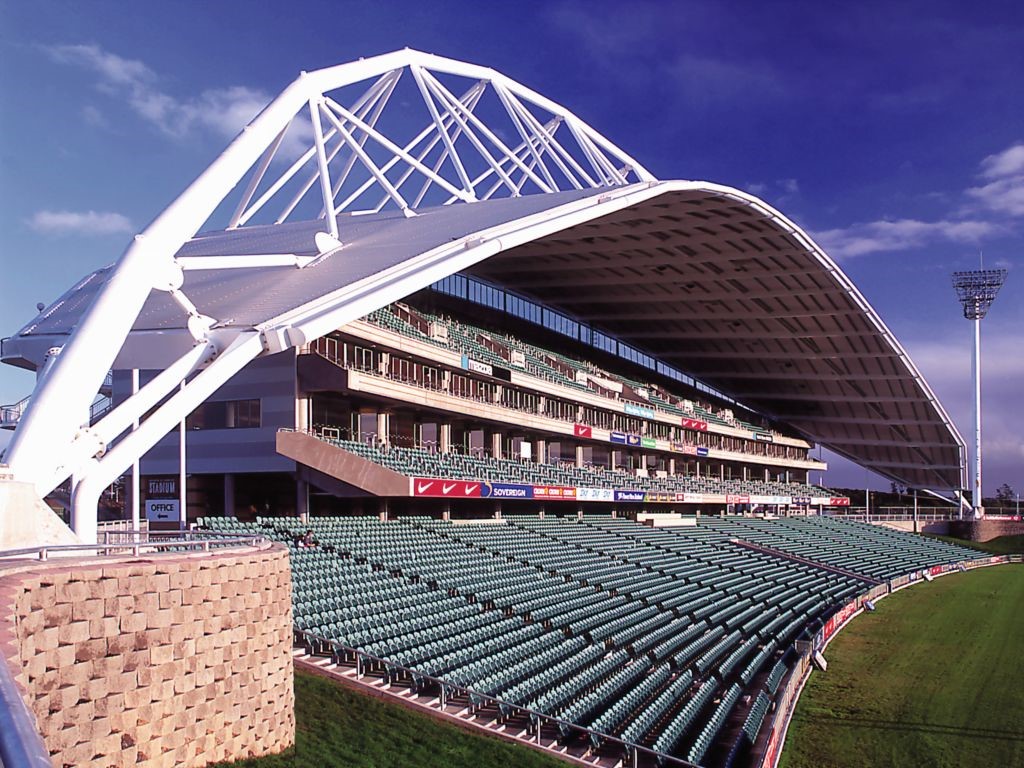

• Commercial and Industrial cladding
• Steel & Tube Kliplok is available in a variety of materials to suit the environment including galvanised, Zincalume and aluminium
• A full range of matching accessories are available including ridging, underlays, safety mesh, fasteners and rainwater systems.
