IBS PanelLine Brace V-Groove MDF

IBS MDF V-Groove PanelLine Brace is a medium density fibreboard (MDF) manufactured by Nelson Pine Industries Limited from Pinus Radiata, in accordance with AS/NZS 1859.2. IBS supplies MDF V-Groove PanelLine Brace to be used as an internal lining with bracing capacity. Uses for IBS PanelLine Brace include:

• An internal wall bracing system

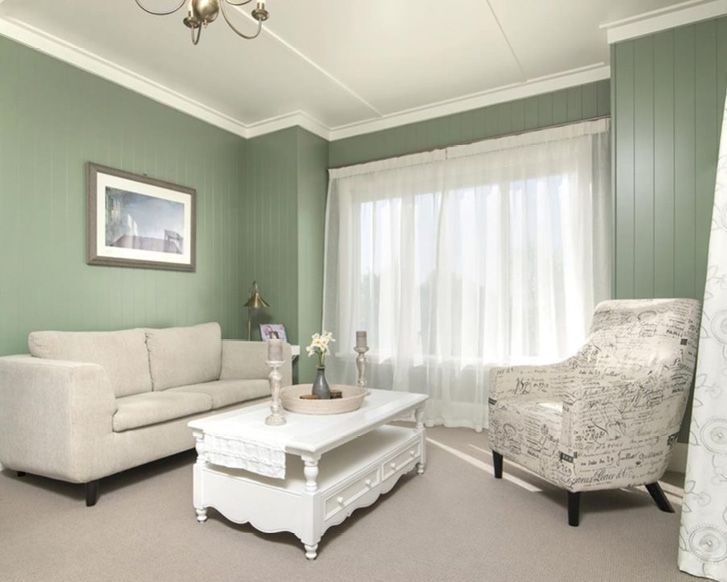

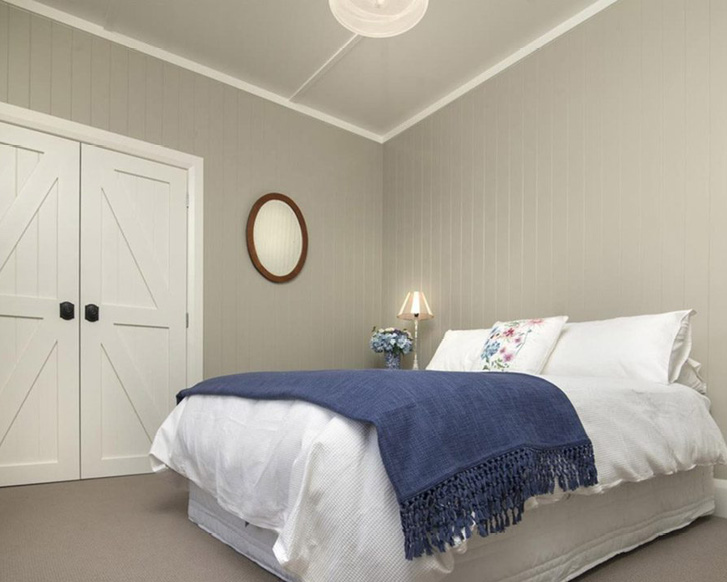

• A full or partial internal wall lining
• A ceiling lining

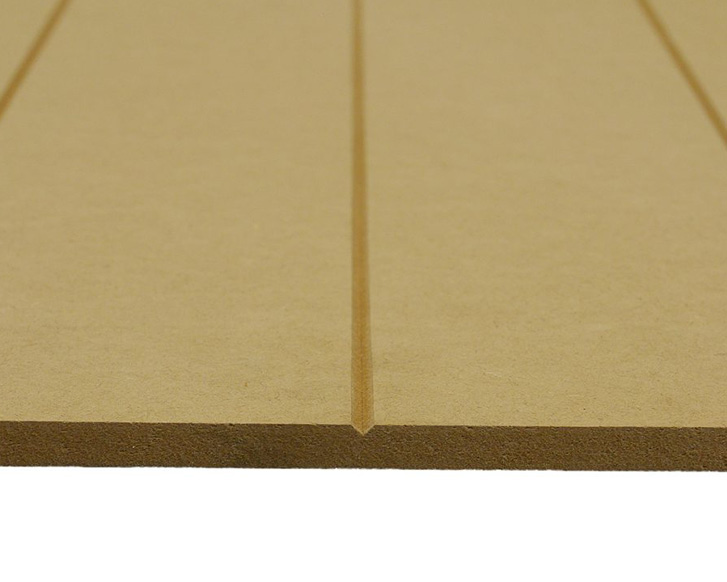

The panels are available with a V groove profile running the length of the panel for easy horizontal or vertical fixing. The ends have a tongue and groove for seamless width joints.

Available Sheet Sizes

• Length (mm): 2440, 2745, 3660
• Width (mm): 1200
• Thickness (mm): 9.0

MDF V-Groove PanelLine Brace Intended Use

Scope

Building

• In new buildings with framing that complies with the NZ Building Code (NZBC).
• In existing buildings where the designer or installer have assured themselves that the existing building is suitable for the intended building work.
• As a wall bracing element on timber framed buildings, in conjunction with GIB HandiBrac® or 400mm x 25mm flat strap with a M12 bottom plate connection.

Limitations

Building

• IBS PanelLine Brace should not be installed if the moisture content of the supporting timber framing exceeds 18%.
• IBS PanelLine Brace is not recommended for use in areas subject to high moisture content or water splashes such as kitchens, bathrooms, toilets or laundries.
• The minimum framing dimensions must be 90 x 45 mm for external walls and 75 x 45 mm for nonstructural
  internal walls.
• Do not expose the sheets to temperatures of 50°c or greater for prolonged periods.
