CD Structural Untreated/Cladding H3.2 Ply

Product Description

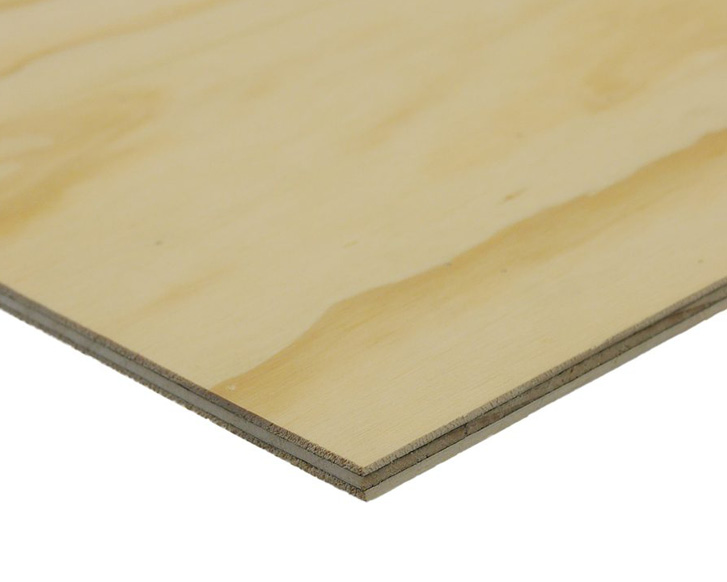

CD Structural Ply is manufactured to AS/NZS 2269:2012 with the veneers being glued with an exterior phenol-formaldehyde resin. The sheets are supplied with a clean face and with solid knots and minor filling.
Sheets are supplied untreated or treated to Hazard Class, H3.2 (CCA) in 2400 mm x 1200 mm sheets with the following thicknesses (mm): 7, 9, 12, 15, 18, 21, 25.

Benefits of CD Structural Ply

IBS Structural Ply is fully in line certified to New Zealand standards by SAI Global. IBS Structural Ply has been manufactured by Arauco and tested to meet all requirements of Plywood Structural Standard AS/NZS 2269 in products that are stamped and labeled accordingly.

It is a certified “A” bond using an exterior phenolformaldehyde resin and is a low formaldehyde emissions (LFE) panel.

A CD Grade is primarily used where the end use is visual. A clean solid face that may have solid knots and splits with a minor filling. Finished with a 150 grit three-step sanding process and 100 grit on the back veneer.

CD Structural Intended Use

For full scope, limitations and assurance refer to the IBS CD Structural pass™ and the IBS CD Structural Ply
Cladding pass™.

IBS supply CD Structural Ply for use as:

  • a wall bracing element
  • floor or roof diaphragm

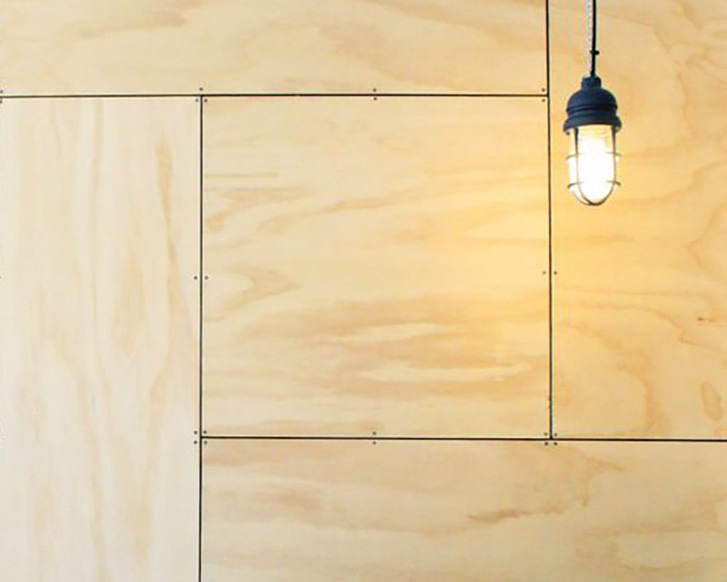

  • external cladding
  • flooring
  • deck or roof substrate

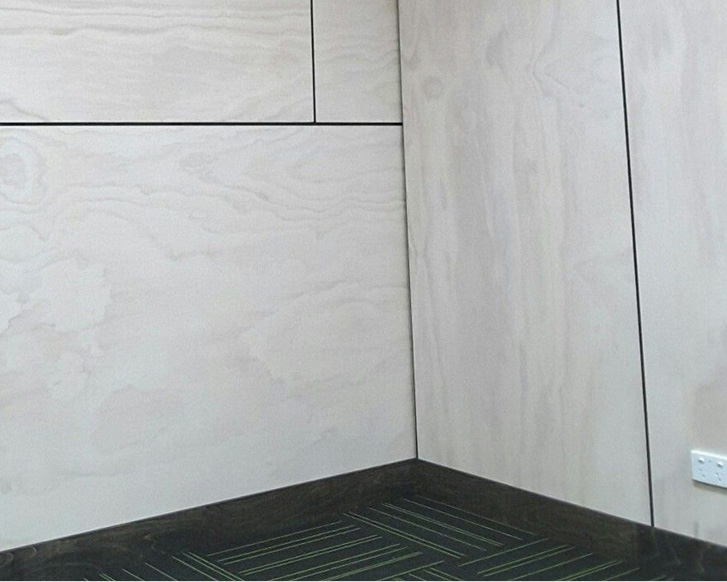

  • internal wall panelling
  • ceiling and soffit linings
  • crafts, general construction and formwork.
