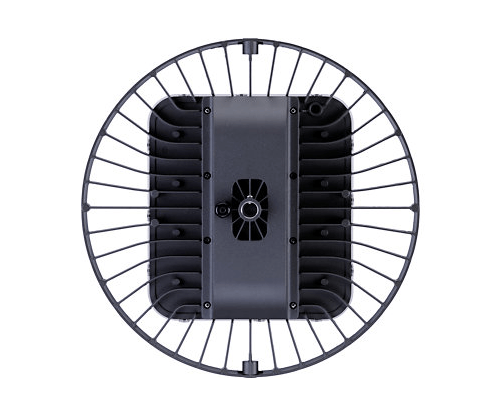

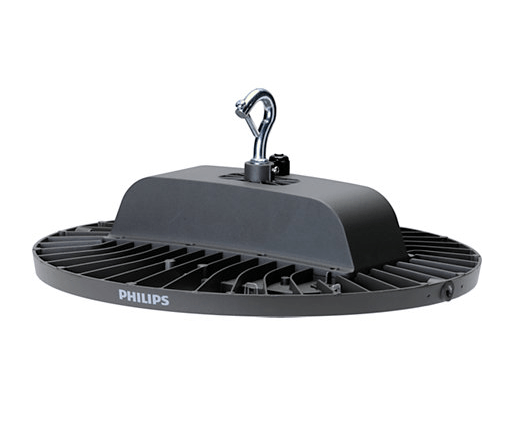

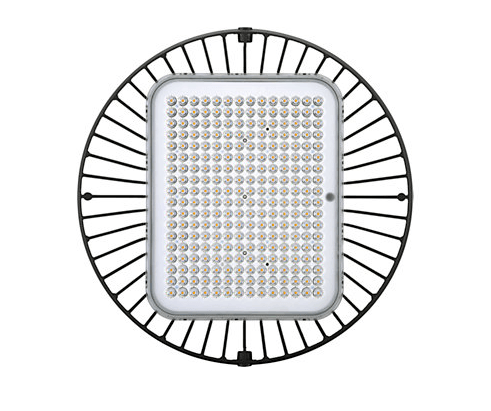

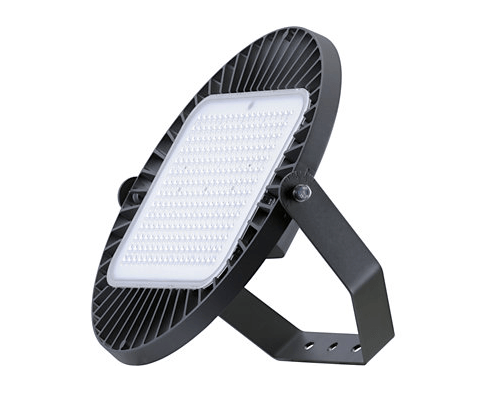

GreenPerform highbay gen3

Product Description

Following the successful introduction of the GreenPerform Highbay G2 in 2013, while continue providing the superior light quality, long service lifetime, reduced energy consumption and less maintenance in the switch on-off (PSU) and Dali dimmable  (PSD) versions, the new generation Highbay seamlessly integrates state-of-the-art LED lighting with an easy-to-use and reliable wireless ZIGBEE control solution (ACW) and simple movement detection solution (PIR).
In the ACW version products, when the situation on the work floor changes, settings such as dimming levels and
timing can be changed wirelessly by the end-users themselves. Luminaires can be combined in groups across the layout, and re-zoning them does not require a hardware change, thus minimising commissioning costs.
The system delivers savings over and above the actual efficiency of the LEDs and is future-proof. In the PIR
version products, when there is no movement detected after 15 minutes, the lighting will dim down to 25% of the lumen output, which helps to maximum your energy saving in a simple way. Easy to understand, easy to design-in, and easy to use, GreenPerform Highbay G3 is a smart way to light up your business.


  • AverageAmbientTemperature: -30 to +45 °C and -30 to +50 °C
  • Beam angle N/A: 30° 60° 100°
  • Color: Dark Gray, Dark Grey (Pantone 8405C)
  • Correlated color temperature: 4000, 6500 K
  • Lumen output: 10000, 11000, 16000, 20000, 29000 lm
  • Input frequency: 50 to 60 Hz
  • Input voltage: 220-240 V
  • Light source color: 840 neutral white, 865 cool daylight
  • Material Housing: aluminum die-cast
  • Material Housing: die-cast aluminum: Cover: polycarbonate, at 50000 h, 40000 h, 30000 h
  • Type:  BY698P (Fix driver and Dali driver versions) and BY698X (1~10V sensor and Dali ZigBee system versions)
