Gerard Milano

Product Description

Click below to access the CAD files and Technical documents.

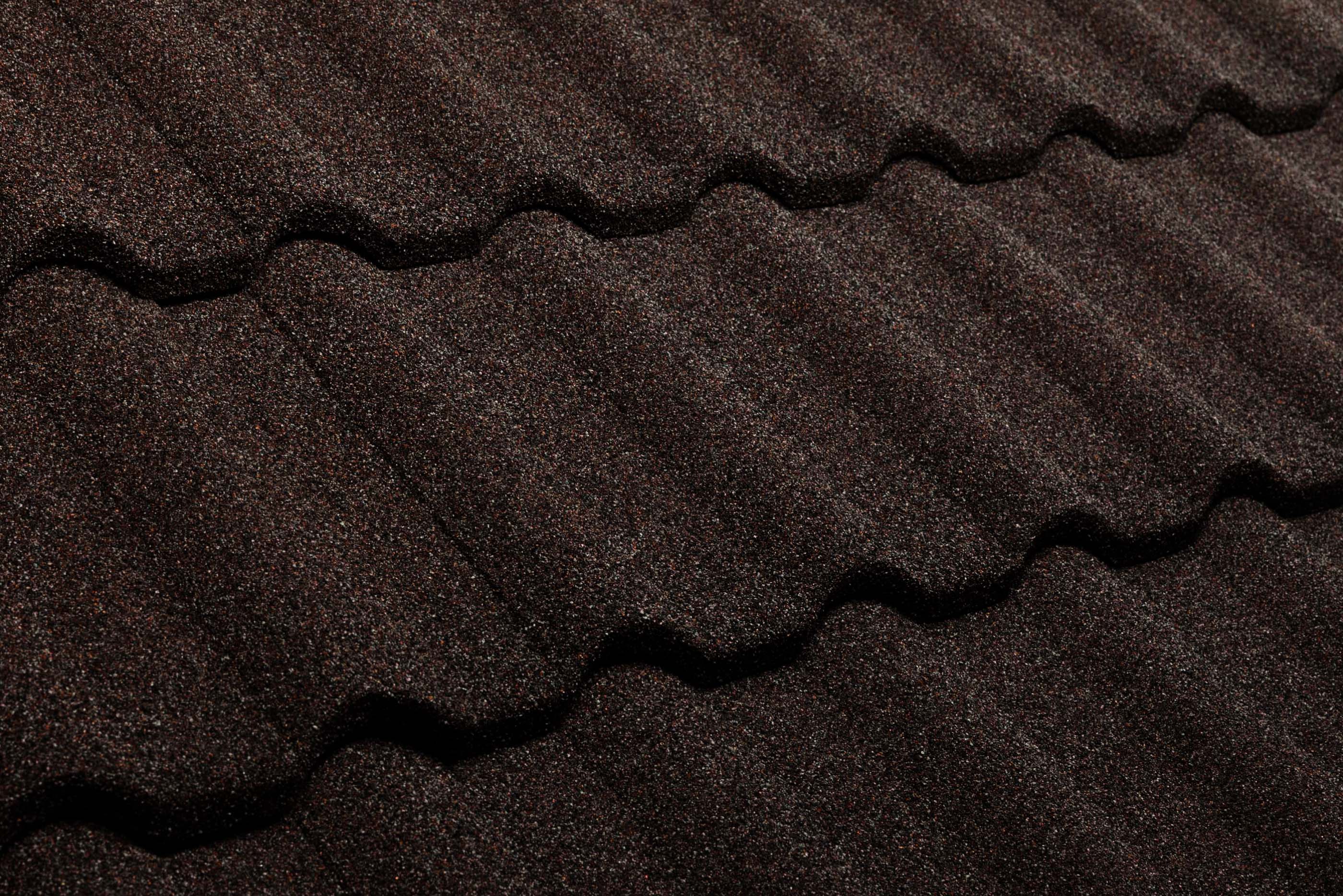

Balanced arches and flats create a perfectly elegant roof with a classic aesthetic. This timeless profile makes a strong statement, especially on steeply pitched roofs.

 Key features

  • Aluminium-zinc alloy coated steel, made to AS 1397, compliant with NZS 4217 Pressed Steel Tile Roofs.
  • Non-combustible - compliant with AS/NZS 1530.3. Approved for use in Australia's highest bush fire zone (BAL-FZ)
  • Efficient to transport

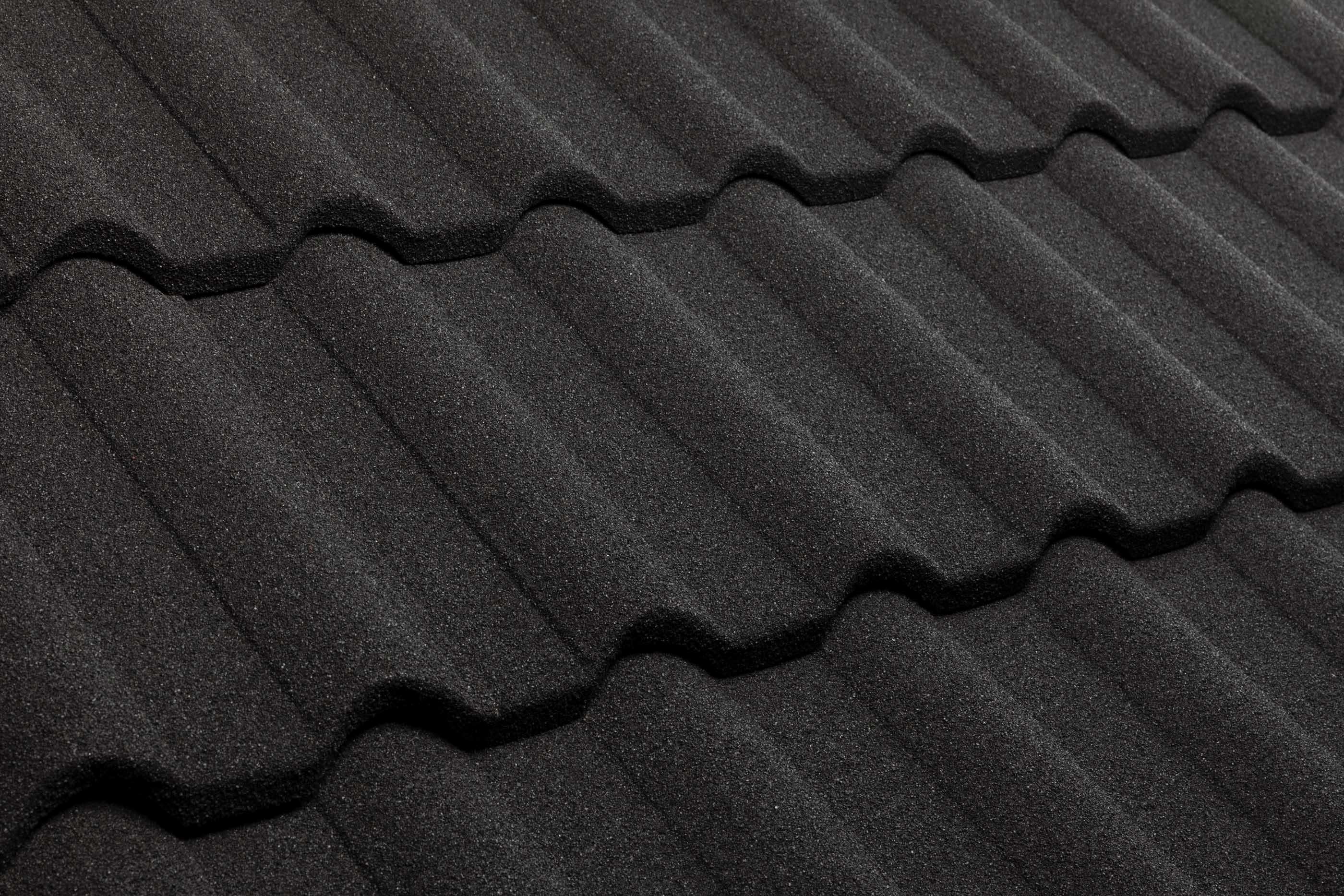

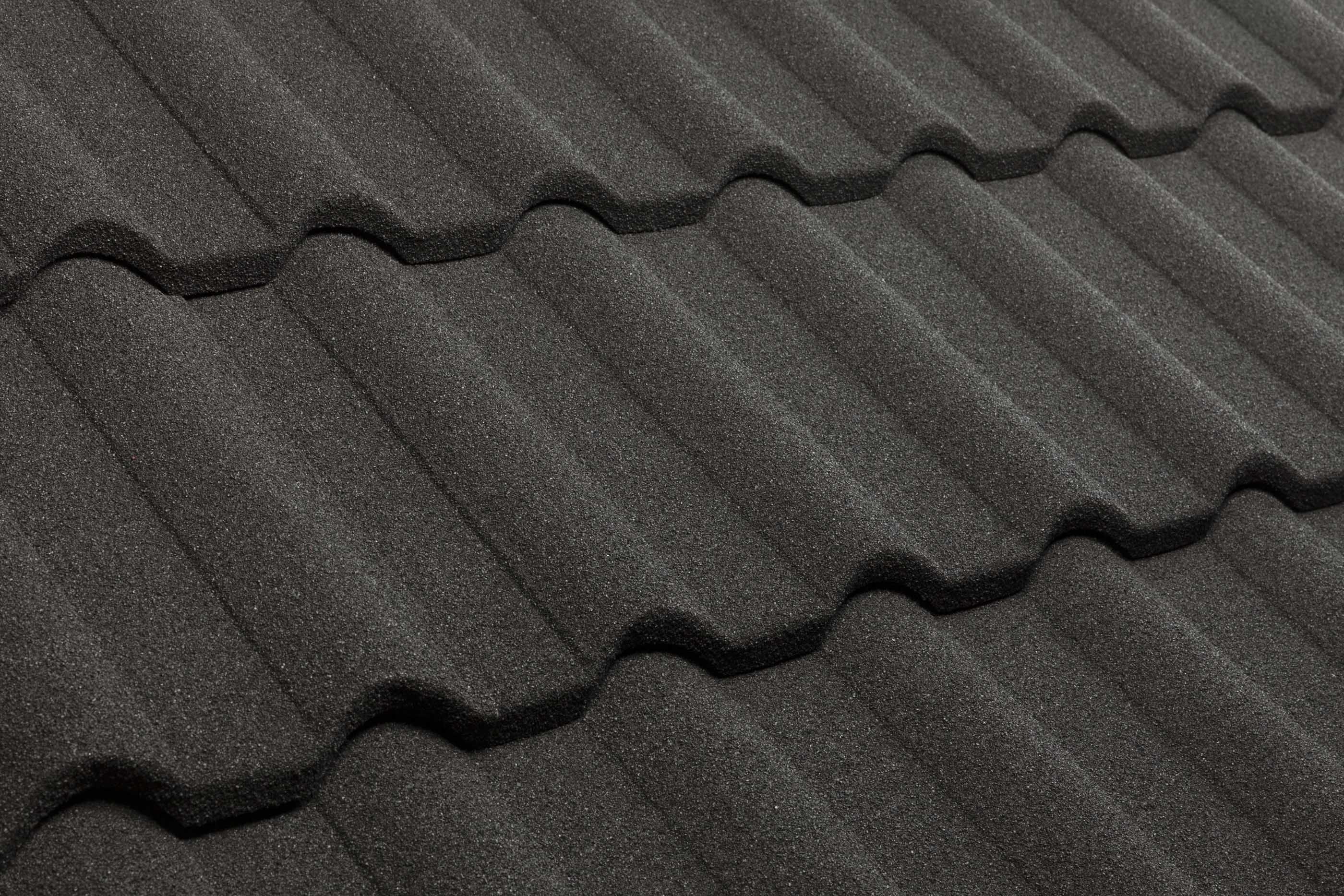

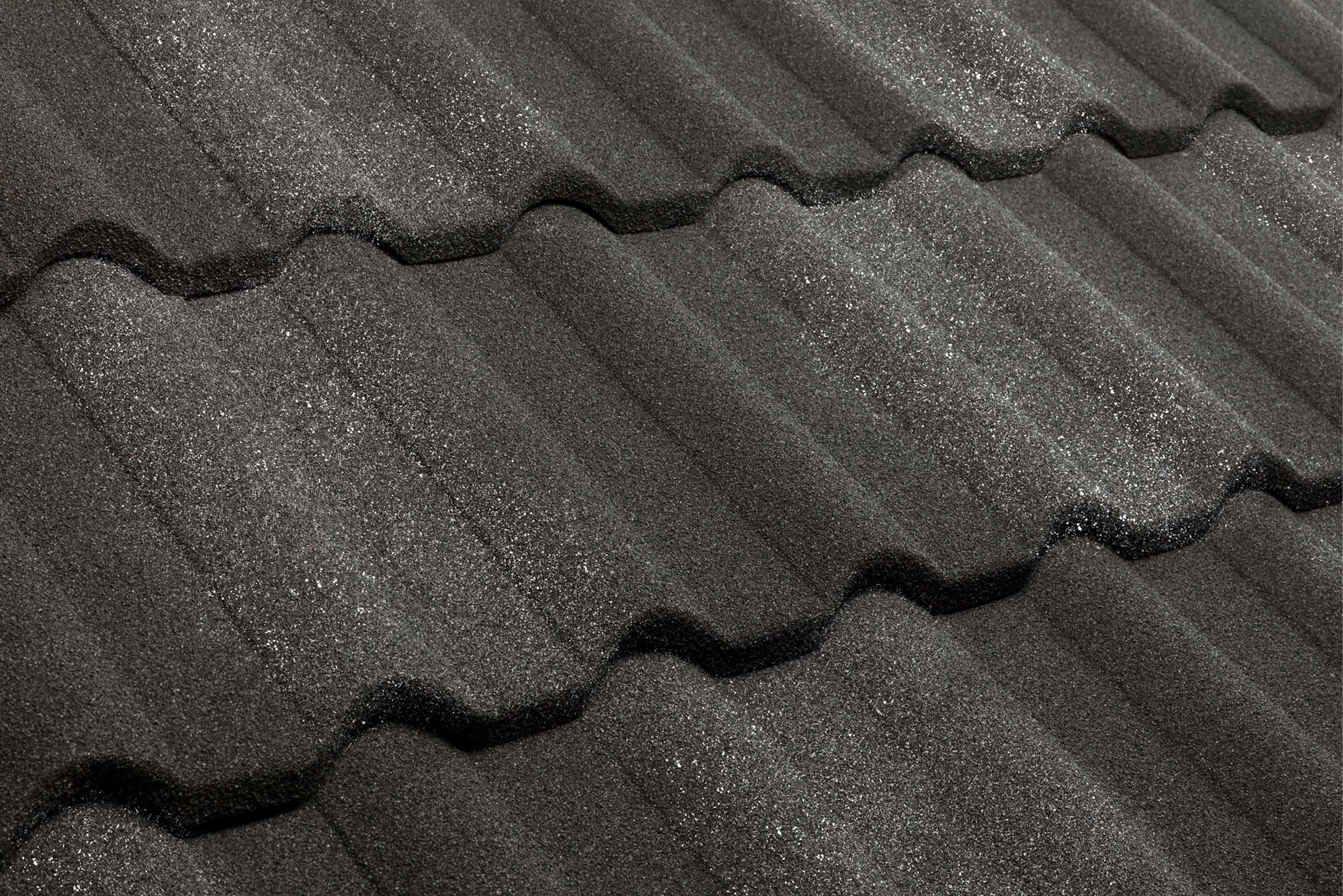

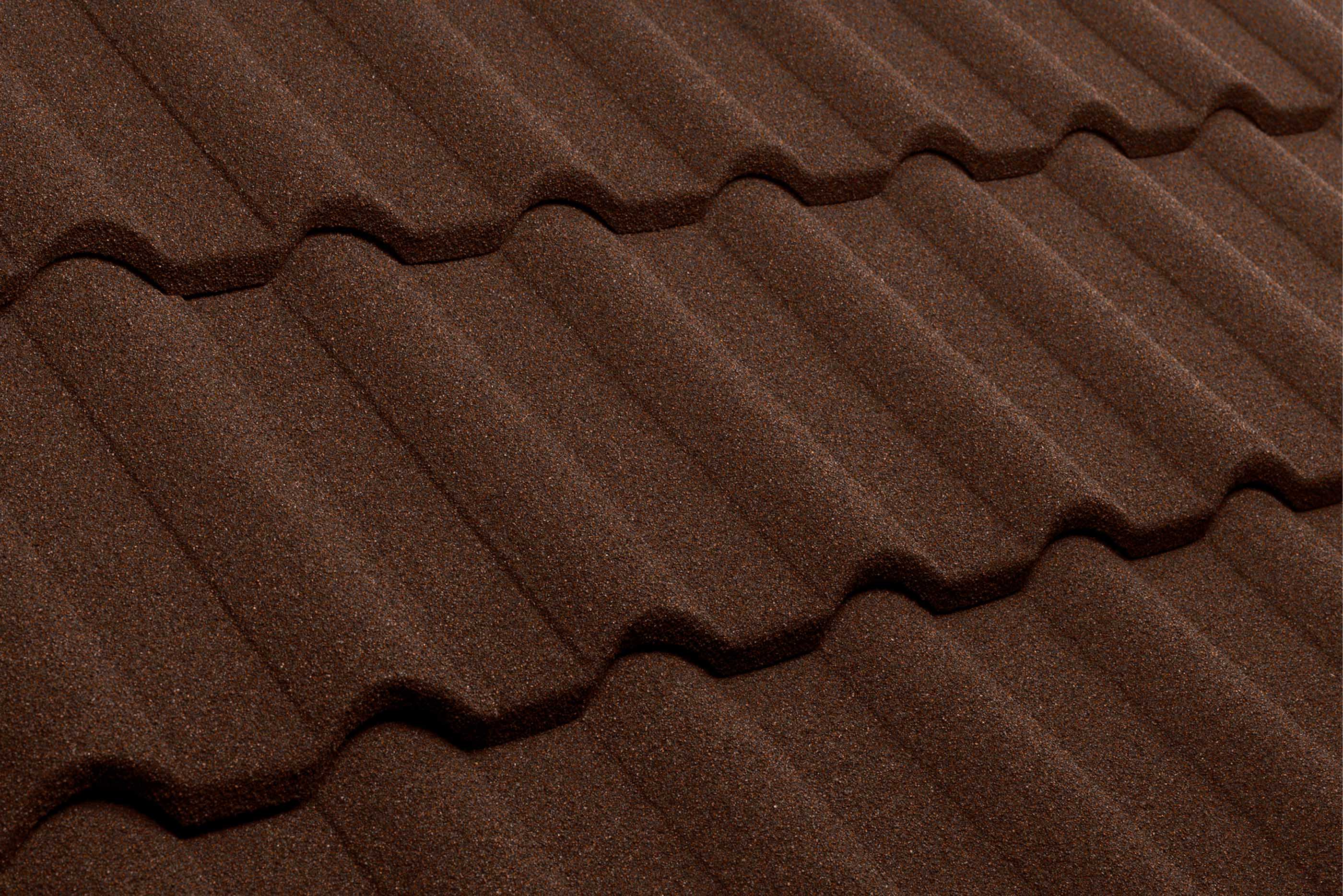

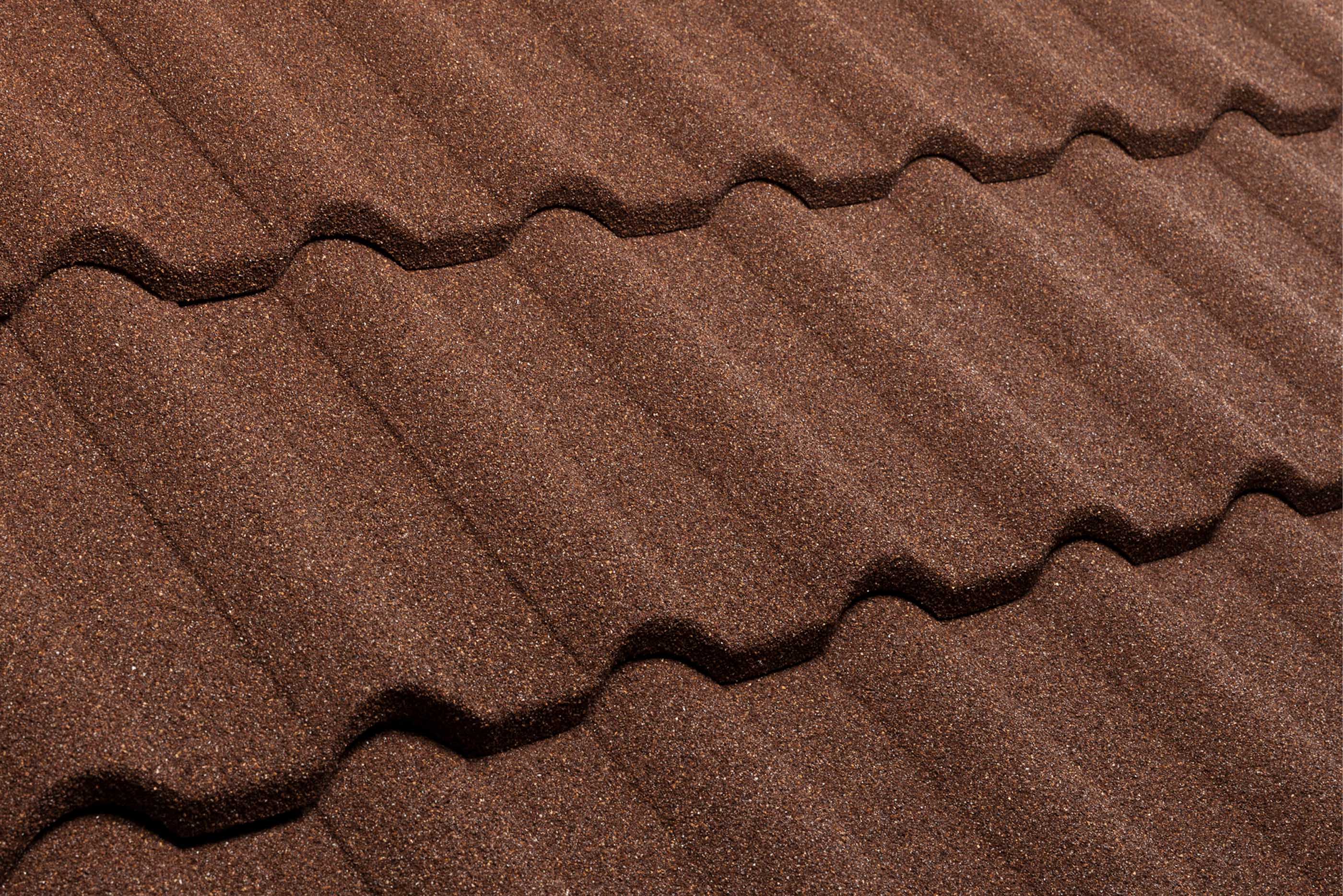

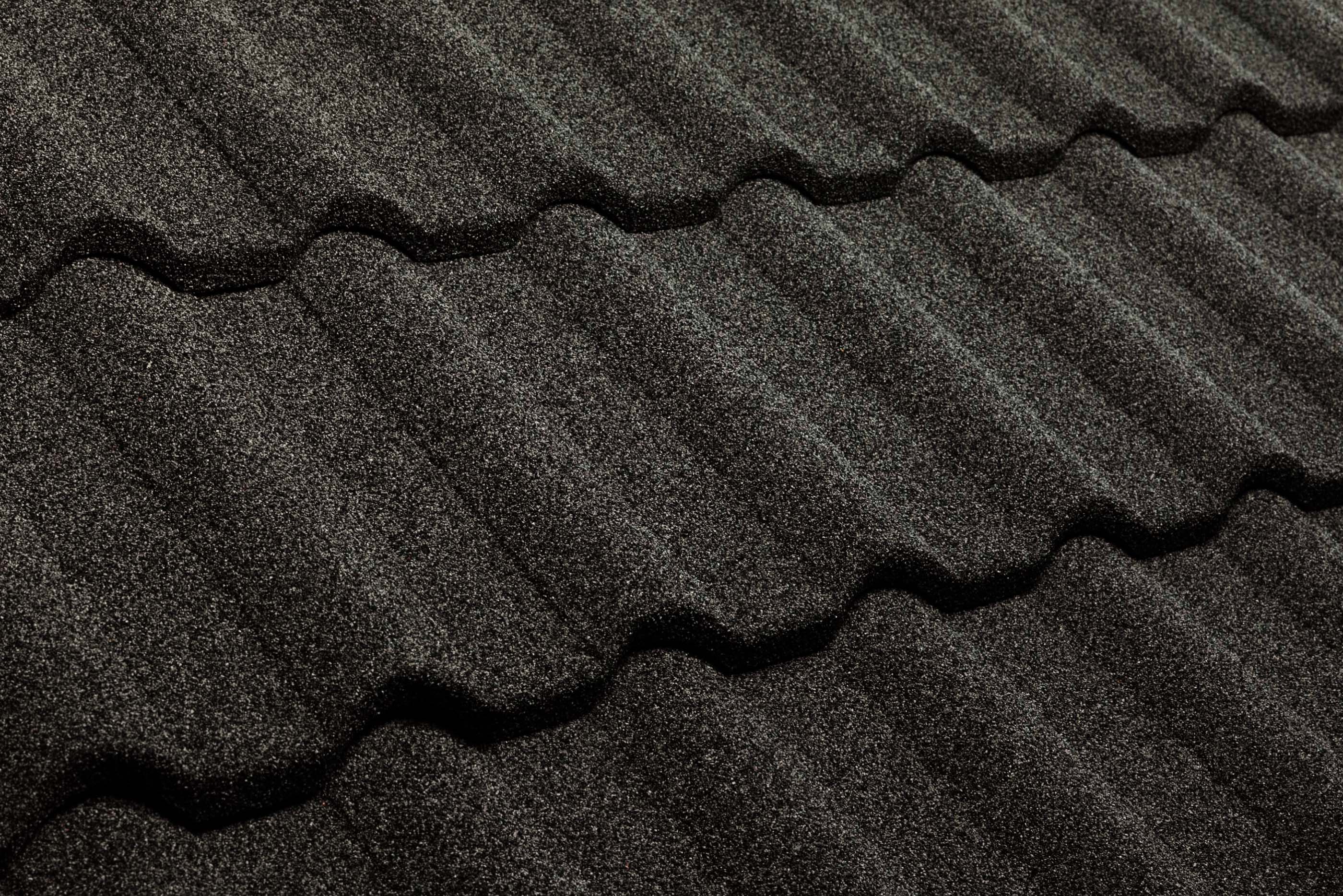

  • Available in 10 textured colors.
  • Warranty up to 30 years.

Other performance attributes

  • Long lasting in any environment.
  • Made from steel - infinitely recyclable
  • Lightweight interlocking design provides strong seismic performance.
  • Opposes wind uplift to improve performance.
  • Exceeds the worlds health organisations standard for water run-off
  • Lightweight with a high strength-to-weight ratio.
Scope of use


Gerard Milano is suitable for use on buildings that comply with NZS 3604.

Code-compliant for the following environmental conditions:

  • Wind Zone - Specific Design
  • Corrosion Zone - Corrosion Zone D
  • Seismic Zone - High

Compatible with Angle and Barrel trims.

Limitations on use


  • Minimum roof pitch 12 degrees.
  • System is Code-compliant on the condition it is installed by a licensed applicator / installer.
  • Rafters and valley boards are to be correctly installed by the builder before roofing can start (refer to the Builders' Checklist).
If alterations are made to the home after the installation of the roof - such as fitting of chimneys, extension, installation of skylights etc - it is important to ensure that the materials that are used are compatible with the roofing material.
It is recommended to chemically clean the roof before growths are seen as a preventative maintenance measure.
Statement of Building Code compliance


The system if designed, used, installed and maintained in accordance with supporting technical information and additional conditions and limitations will meet the following provisions of the New Zealand Building Code:
  • B1 Structure
  • B2 Durability
  • E1 Surface Water
  • E2 External Moisture
