Custom Orb offers the timeless elegance and matchless adaptability of the traditional corrugate profile, together with Steel & Tube's unrivaled technical advice, quality control and after-sales service.

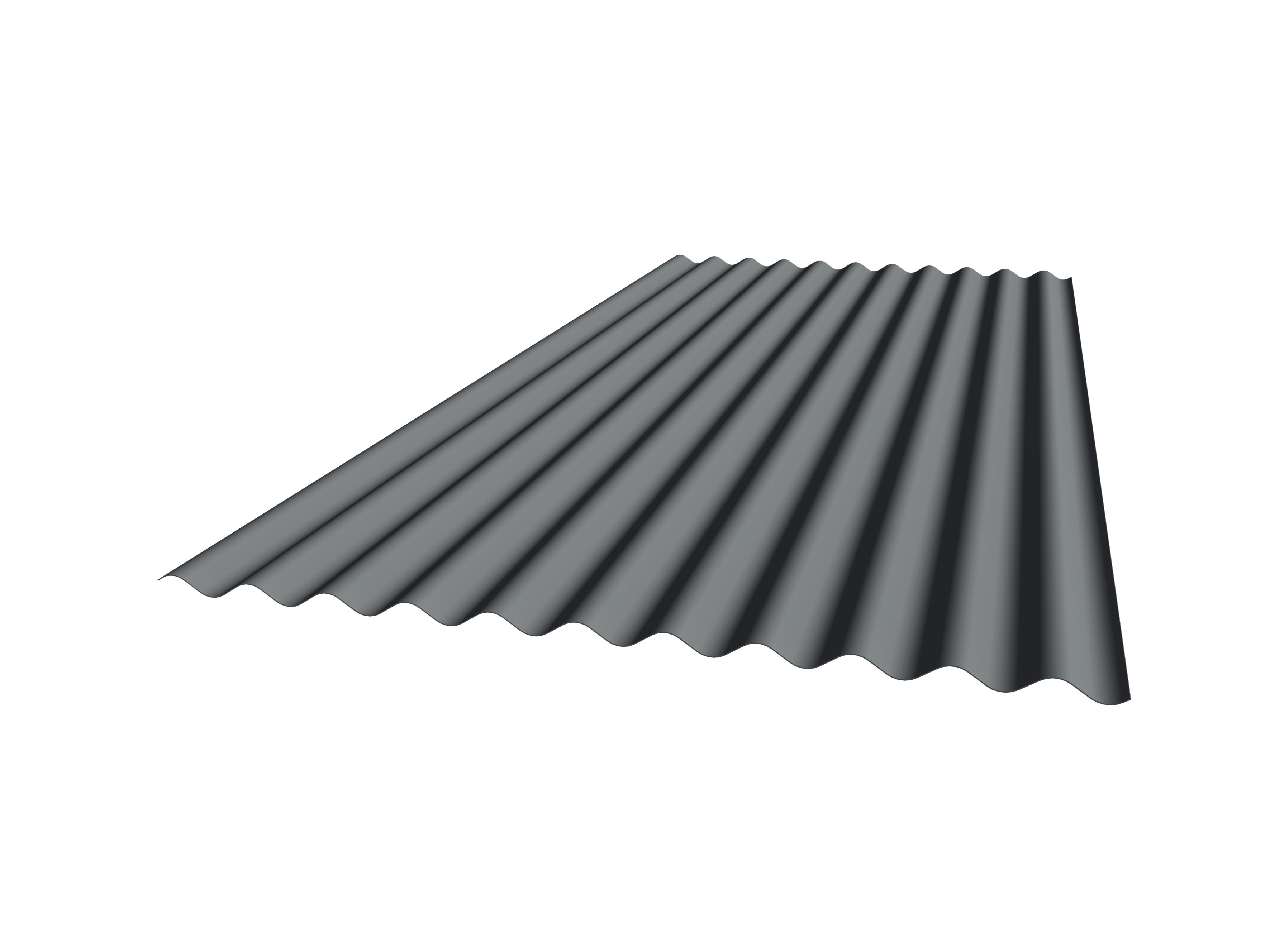

Custom Orb is a corrugate profile with a 17 mm rib height and 765mm effective cover. Custom Orb is typically utilised in domestic roofing, or commercial cladding applications where spanning ability is not a prime requirement.

All Steel & Tube roofing, cladding and rainwater goods manufactured from COLORSTEEL are accredited with Environmental Choice which contributes to Homestar and Greenstar.

KEY FEATURES

• Manufactured in Whangarei, Auckland, Hamitlon, Tauranga,Wellington and Christchurch
• Minimum pitch 8°
• Top coverage in its class for best economy
• Can be roll curved (Bull nosed) to 400mm radius
• Can be crimp curved to 400mm radius
• Spring Curved to a radii greater than 9 metres depending on grade, thickness and material used.
• It is also popular in perforates patterns for decorative or sound control situations.

APPLICATIONS

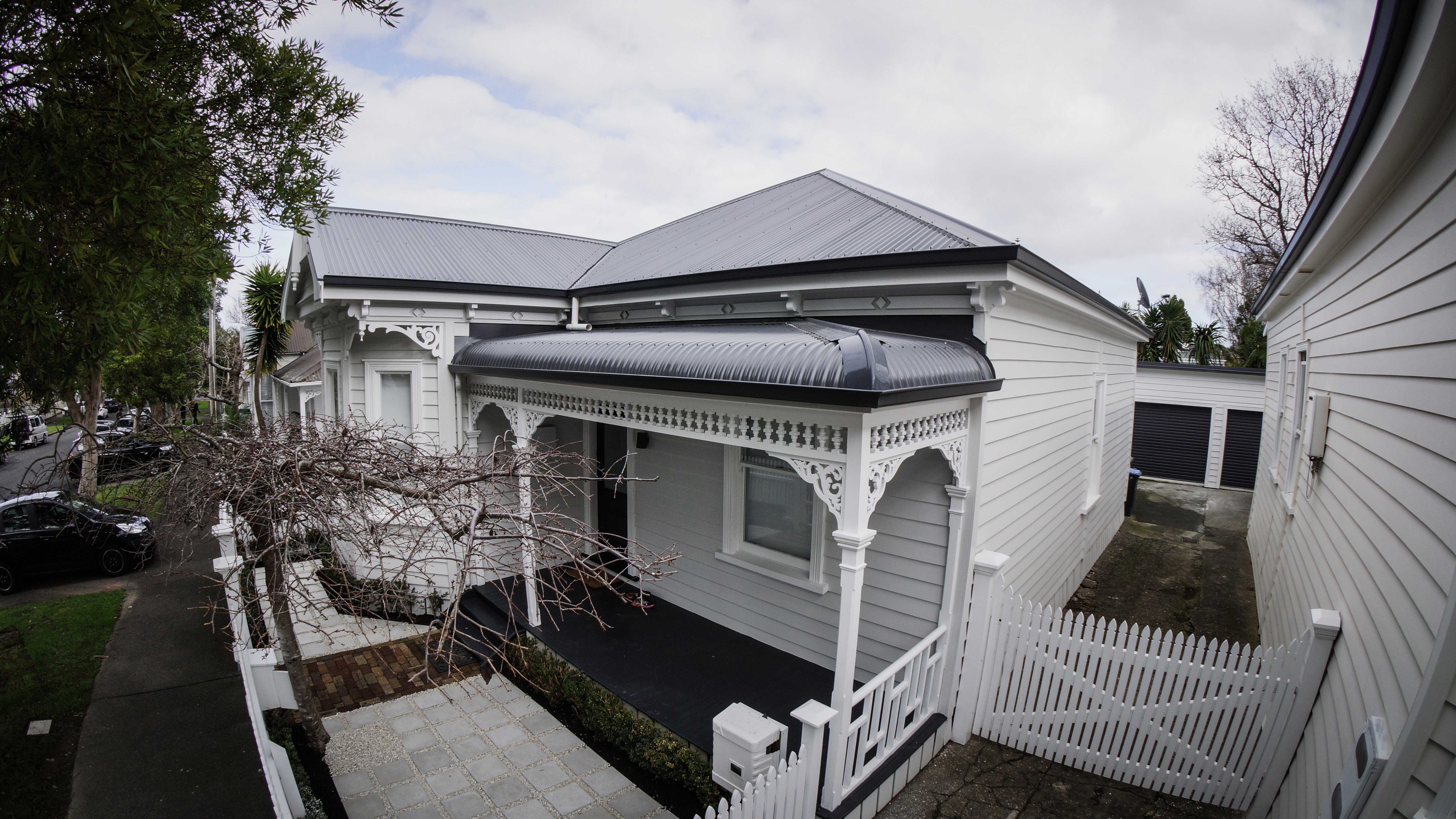

• Residential roofing and cladding

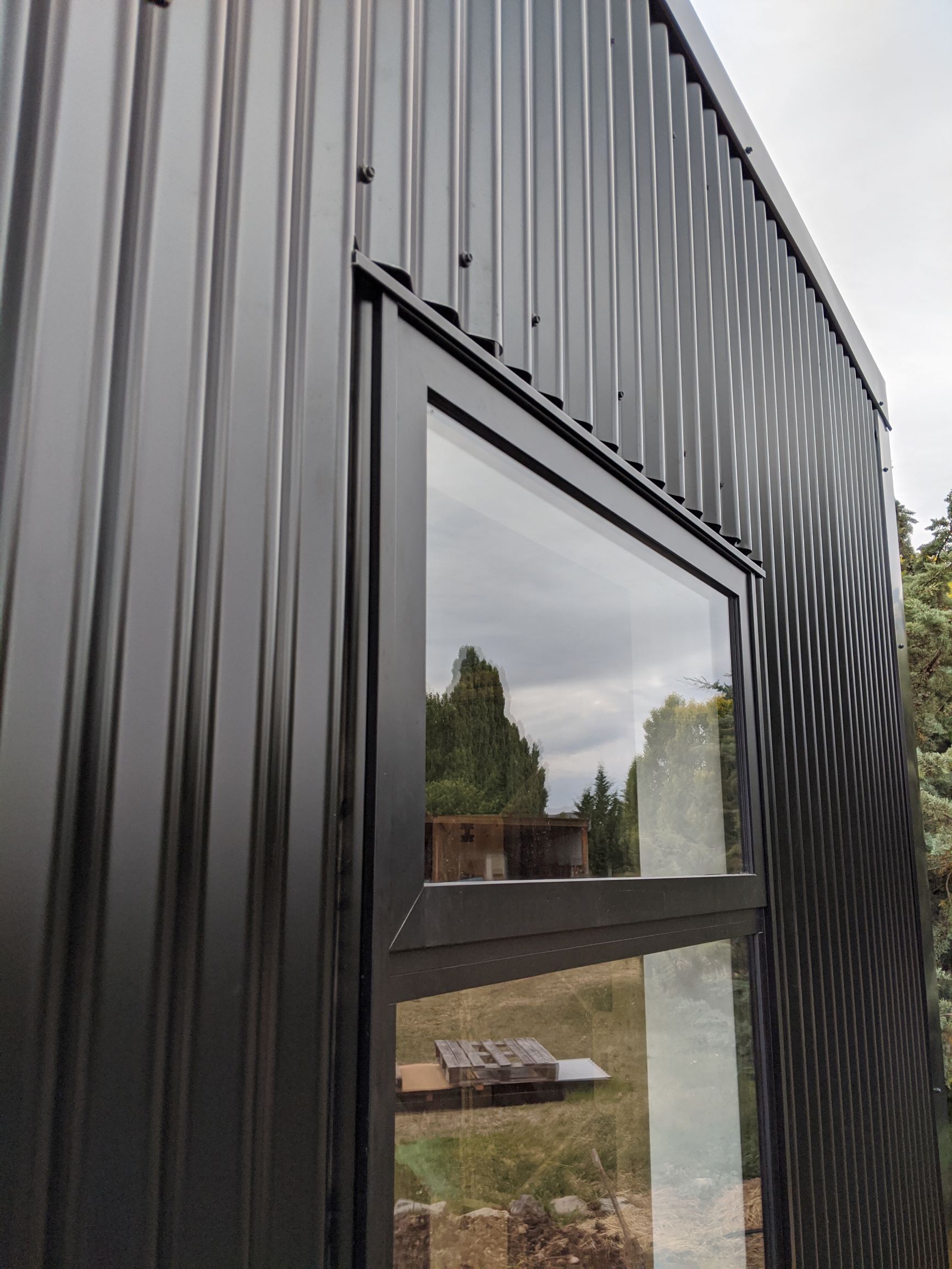

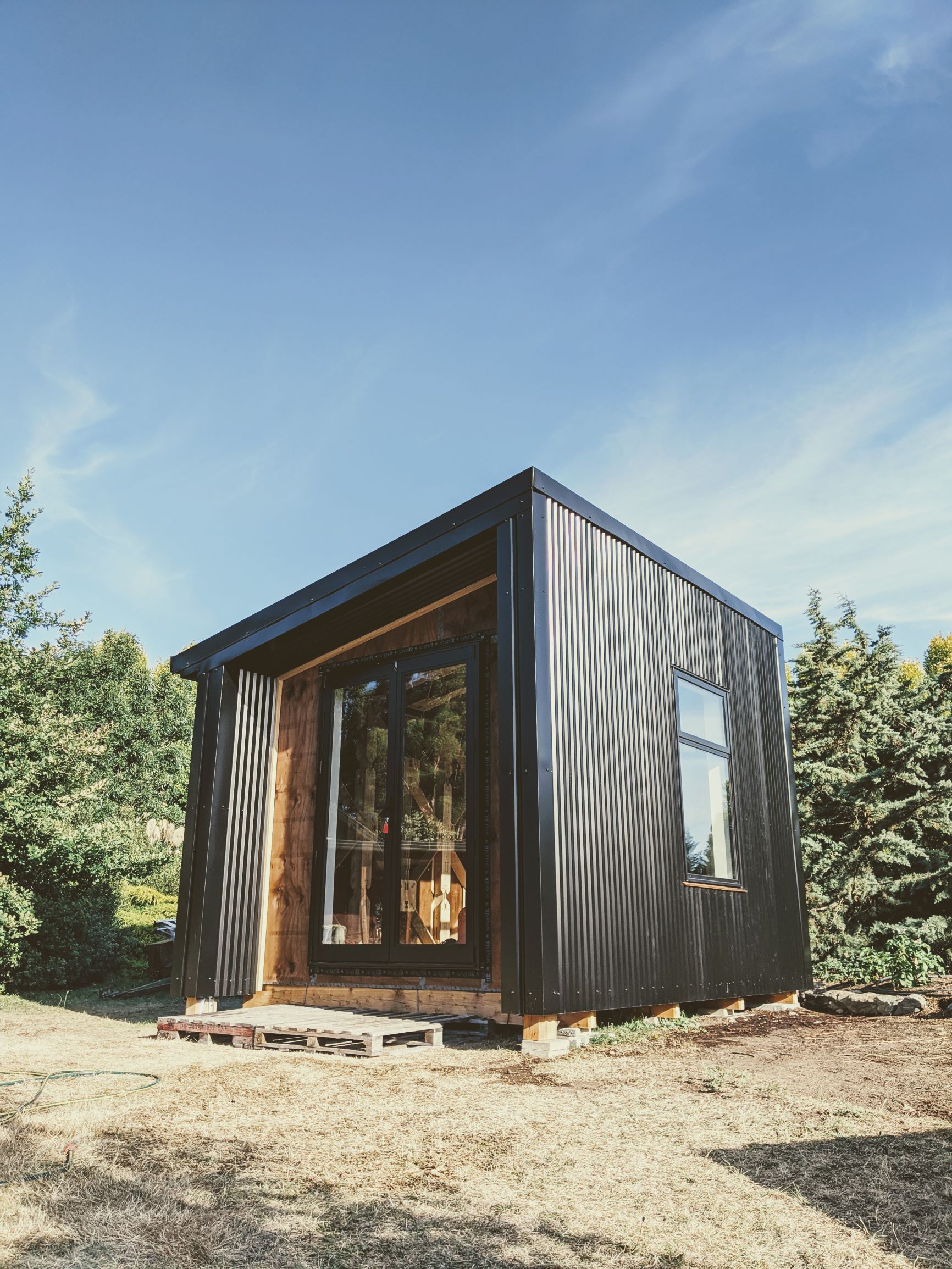

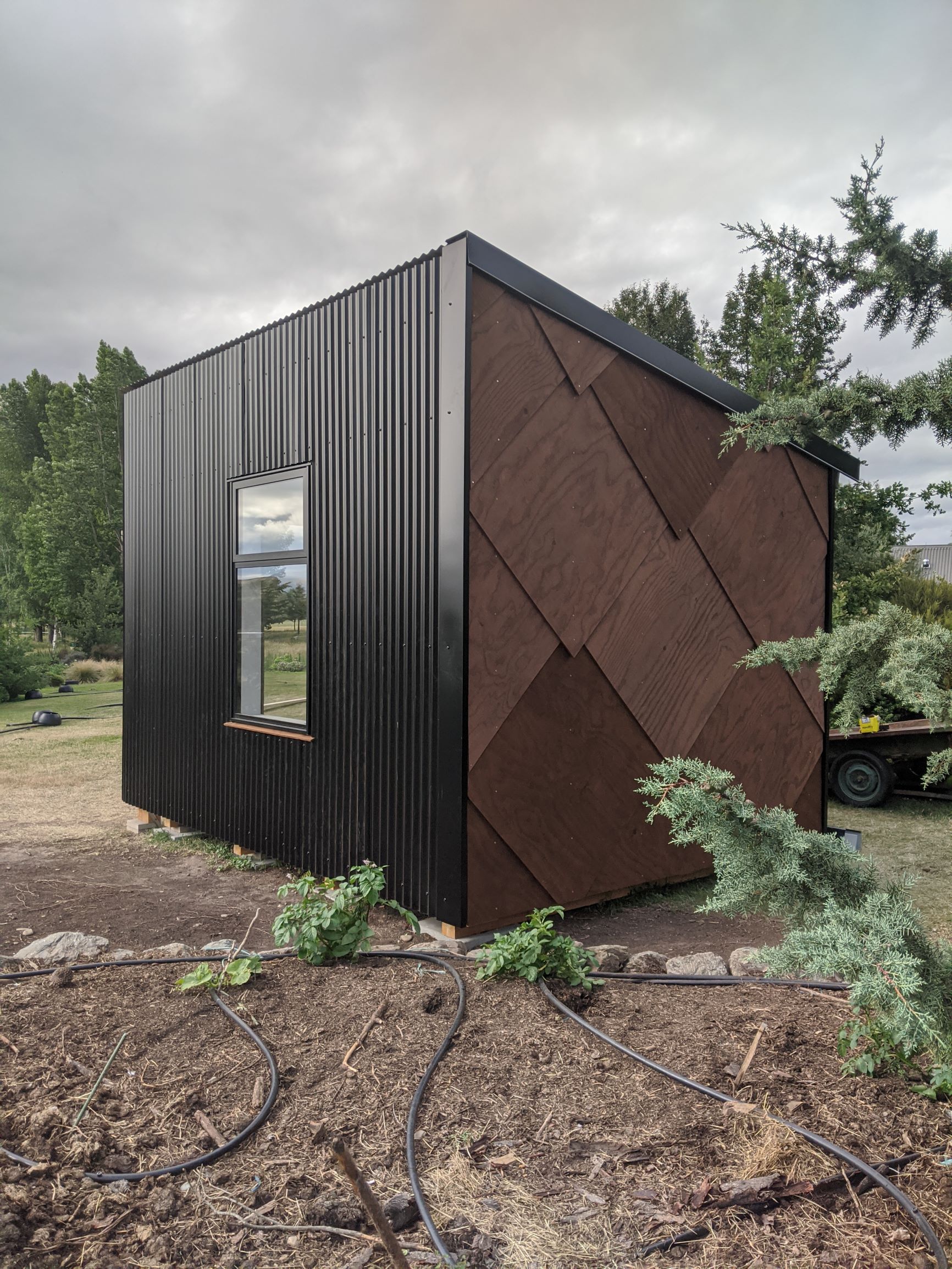

• Commercial and Industrial cladding
• Drape curving
• Steel & Tube Custom Orb is available in a variety of materials to suit the environment including galvanised, Zincalume and aluminium
• Matching glass reinforced natural lighting sheets are available in trafficable, non-trafficable, thermal and condensation control and fire ratings to suit your project.
• A full range of matching accessories are available including ridging, underlays, safety mesh, fasteners and rainwater systems.
