Trimform

BIM/CAD Files
Technical Resources

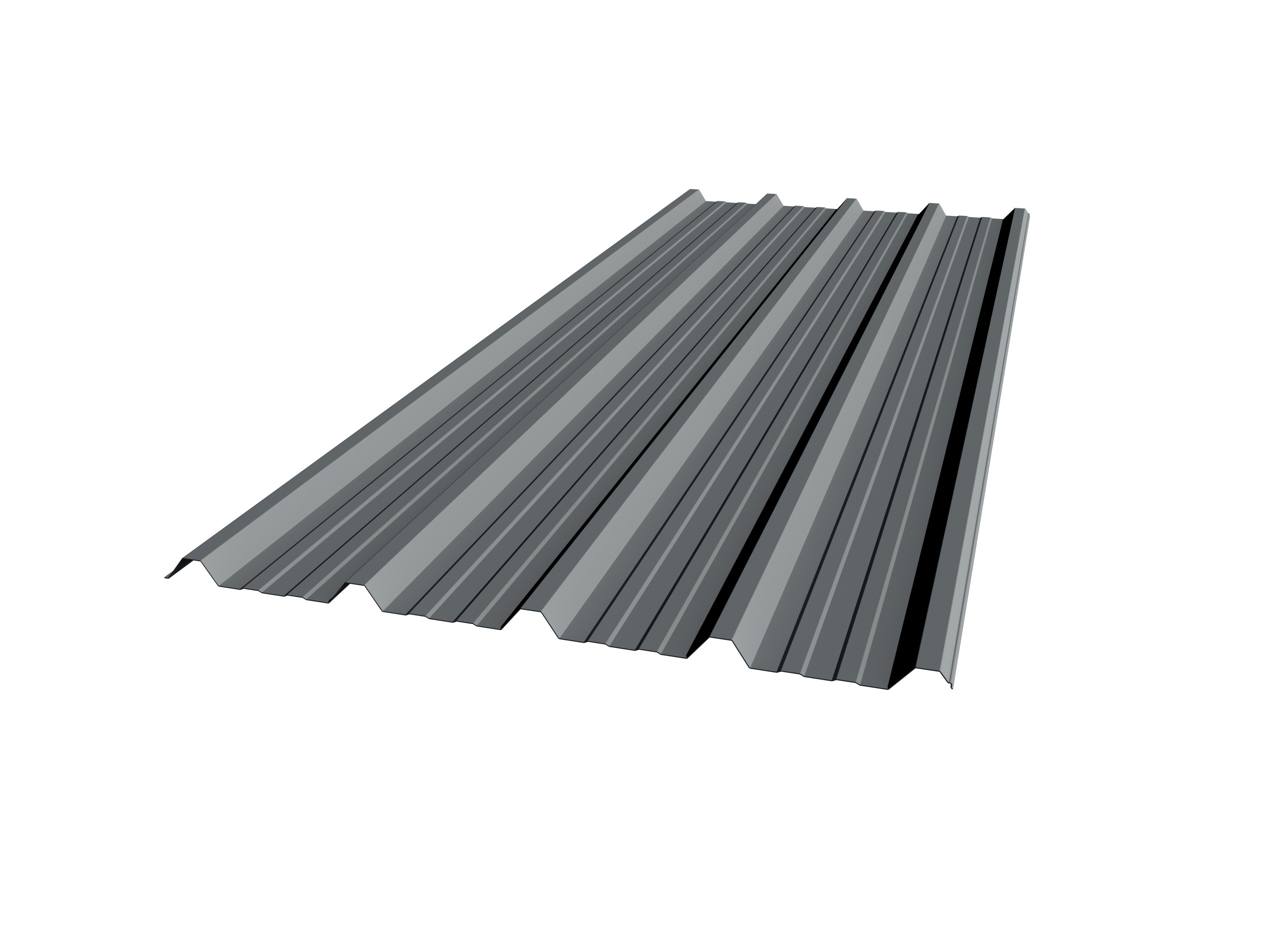

Trimform is a five-ribbed trapezoidal profile with a 27 mm high rib and 765 mm effective cover. Trimform is typically utilised in domestic roofing and cladding or commercial roofing and cladding applications where spanning ability is not a prime requirement.

Steel & Tube offers four trapezoidal rib products with rib heights varying between 20mm and 30mm manufactured at different locations throughout New Zealand.

All Steel & Tube roofing, cladding and rainwater goods manufactured from COLORSTEEL are accredited with Environmental Choice which contributes to Homestar and Greenstar.

KEY FEATURES

• Manufactured in Hamilton
• Minimum pitch 3°
• Can be crimp curved to 400mm radius
• Can be sprung curved to minimum 25 metre radius
• Translucent sheeting available to match

APPLICATIONS

• Residential roofing and cladding
• Commercial and industrial roofing and cladding
• Drape, spring and crimp curving
• Steel & Tube Trimform is available in a variety of materials to suit the environment including galvanised, Zincalume and aluminium.
• Matching reinforced natural lighting sheets are available in trafficable, non-trafficable, thermal and condensation control and fire ratings to suit your project.
• A full range of matching accessories are available including ridging, underlays, safety mesh, fasteners and rainwater systems.

Steel & Tube Coil Suppliers are:

• https://www.colorsteel.co.nz/
• https://www.colorcote.co.nz/

Steel & Tube Translucent Suppliers are:

• https://www.ampelite.co.nz/index.php?pr=Home
• https://alsynite.co.nz/
