QwickBuild® for Composite Decking

MODULAR FRAMING & SUPPORT SYSTEM

QwickBuild is the only system that provides a low height, level & stable solution for supporting not only decking but also for exterior tiles, turf or a combination. Designed as a low risk floating floor system for installations over waterproof membranes.  The versatile system is also ideal as a sub-frame over concrete, pavers or natural ground.  QwickBuild can support Outdure's composite decking ranges CasaDeck & ResortDeck or, if your prefer, other premium composites can also be used.

DESIGNED AS A SOLUTION FOR ROOFTOP SPACES & LOW HEIGHT DECKS CHANGING HOW EXTERIOR SPACES ARE DESIGNED & BUILT

MADE OF MOISTURE-PROOF, LIGHTWEIGHT MATERIALS

The proprietary system comprises of a comprehensive range of patented beam profiles, fastening & support components & additional accessories.  The beams & components are manufactured from lightweight structural aluminium with marine-grade anodized or powder coated finish or electrophoresis 304 stainless steel.  Other system components include brackets, clips, anchors, fasteners, access & ventilation grates, adjustable heights pedestals & aluminium turf baseboards to support the synthetic turf over the frames.

UNMATCHED BENEFITS

• COMPLIANT LOW-RISK SOLUTION

The system is designed to "float" on waterproof membrane without penetrating.

• DURABLE AND LIGHT-WEIGHT

Manufactured from moisture-proof materials: structural aluminium and 304 stainless steel components/fixings.

• VERSATILE

Infinitely configurable to accommodate various heights and engineering requirements.

• MULTI-SURFACE INTEGRATION

Mix and match from Outdure's ranges of decking, tiles, turf or select a preferred surface option.

• COST-EFFECTIVE

Cost-savings through fast installation with interlocking components and hidden fasteners.

• ONE SYSTEM

For the structure and surfaces, reducing the number of trades required on a project

• STABLE AND LEVEL

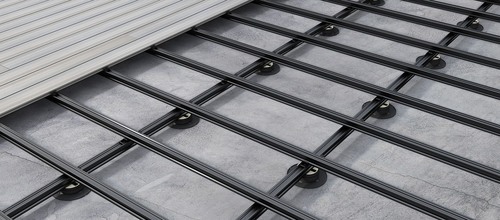

Aluminium joists sit on adjustable deck jack pedestals or posts

• ACCESS SOLUTION

Add QuickGrates as a convenient solution for ventilation and access to drains and services.

QwickBuild technical attributes

• 71mm Height - Capped Composite Decking on QwickBuild ultra-low height long-span capabilities.
• 304 SS Components - Marine Grade Aluminium Joist & Bearer Profiles.
• 5kN Point Load - Engineered for residential and commercial applications.
• 5kPa UDL - Engineered for residential and commercial applications.

How are pavers and tiles installed on QuickBuild?

In addition to installing tiles using traditional methods such as pedestals, QwickBuild sub-structure system is a durable, stable solution ideal for many projects including tiles over membrane & when a low finish is required.

INSTALL OVER MULTIPLE SUBSTRATES

Designed for waterproof membranes, concrete & existing tiles & pavers & natural ground.  QwickBuild offers the most features & benefits for deck structures under 400mm in height, especially areas where deck structures are built over a waterproof membrane.  The system offers low height capabilities enabling the construction of deck structures with flush internal & external floor levels that are complex integrated surfaces.  the convenience of transporting made-to-measure frames to site and significantly reduced installation time on site makes QwickBuild cost-effective.

EASY SUPPLY & INSTALL

• Loose components(off the shelf /// Kit-set (Cut to size)
• Made to adjust prefab frames /// made to measure prefab frames

All QwickBuild projects are supplied with customised construction drawings including optional design features such as stairs, seats, screens and curves.​​
