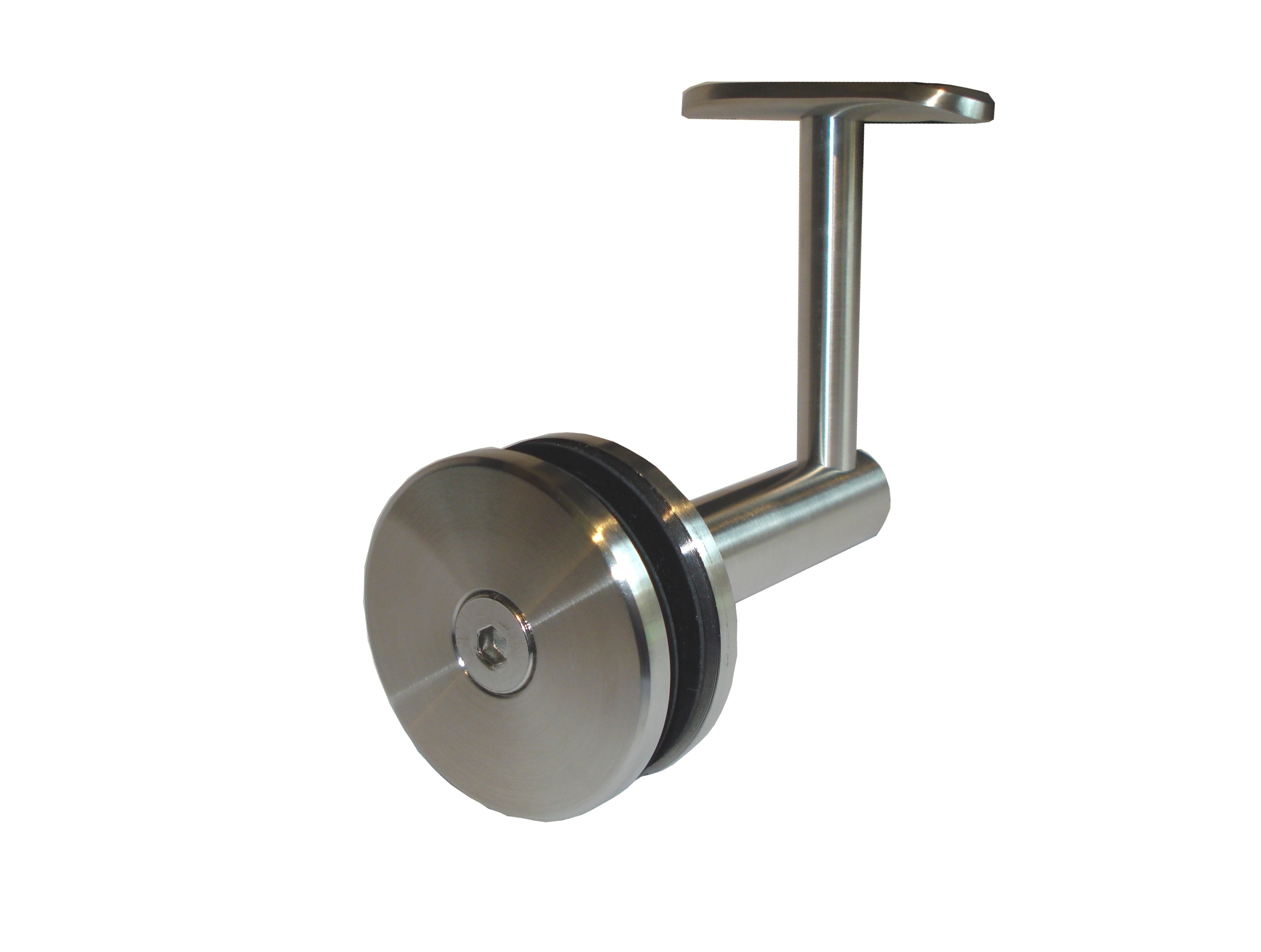

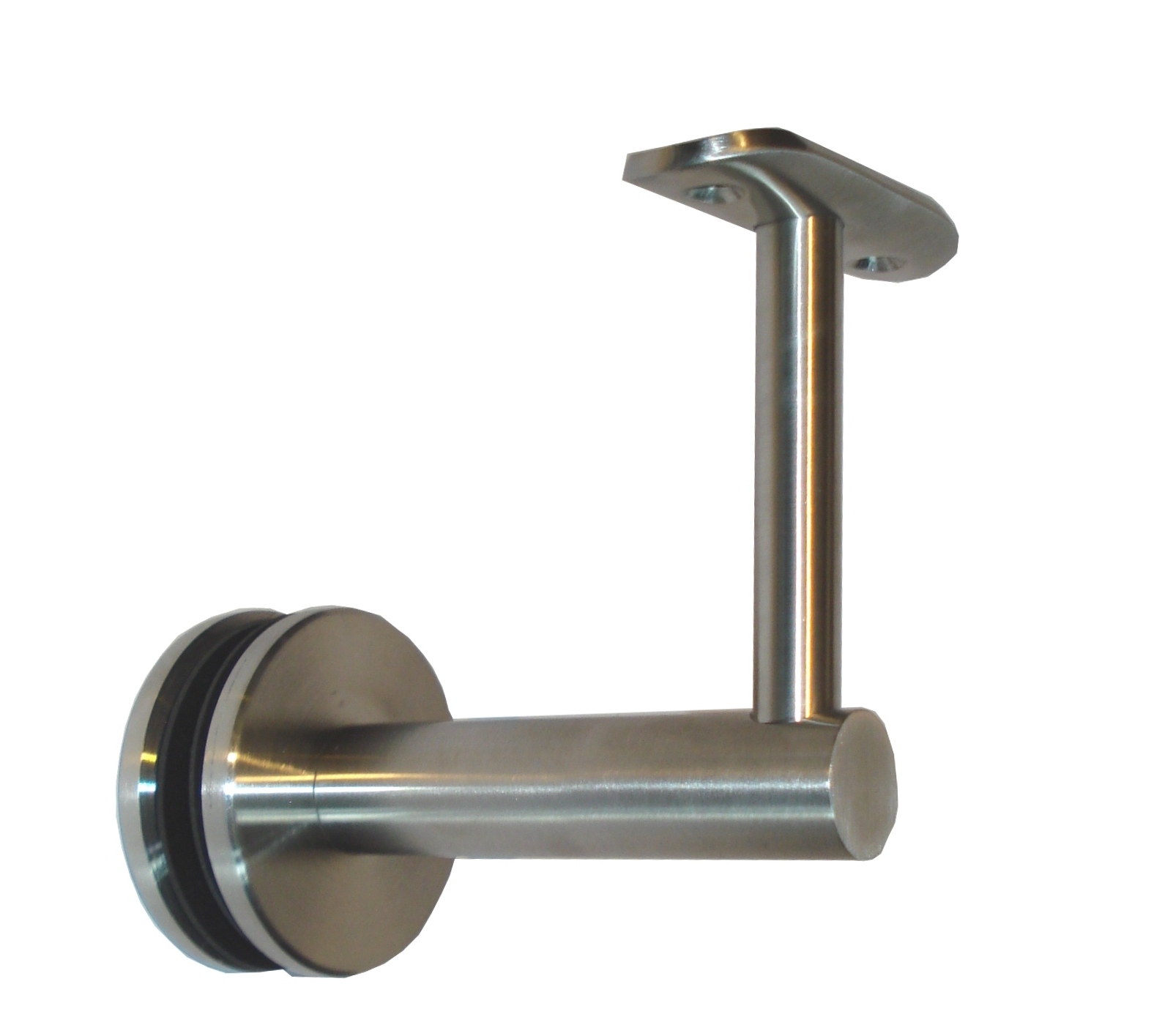

Modena Glaze Handrail Bracket For Glass

Product Description

Handrail bracket for fixing handrail to glass.

Fits glass up to 15mm

Suitable for both commercial and residential use with both interior or exterior applications.

  • Solid 20mm Rod with 2 x 56mm diameter bases (matched to Modena Grande HBR20B wall bracket)
  • All bushes and washers supplied
  • Weld on or with optional saddles
  • Saddles for flat or curved tube available
  • Available in AISI304 & AISI316 satin & mirror
  • Recommended spacing maximum 1000mm

This bracket complies with BIA acceptable solutions D1/AS1.
