Gerard Sanitary Port (G110 series)

Click below to access the CAD files and Technical documents.

CAD Files and Technical Documents



The Gerard Sanitary Port (G110 series) is an integrated extraction vent solution for both new builds and roof refurbishments, providing an outlet for both passive and mechanically vented spaces.

The Gerard Sanitary Port (G110 series) is supplied with an integrated pipe, insulating the vent to the top for efficient outlet of humid air – preventing condensation that could cause damage. The insulated pipe comes with a 110mm outlet to which a Gerard Flexi Pipe can be connected.

Primarily used for sanitary ventilation, it also be used for living quarters such as kitchens and laundry rooms, or as a stack pipe.

The design of the Sanitary Port allows rain to be diverted from the outlet, and a built in protective grille keeps out leaf fall.

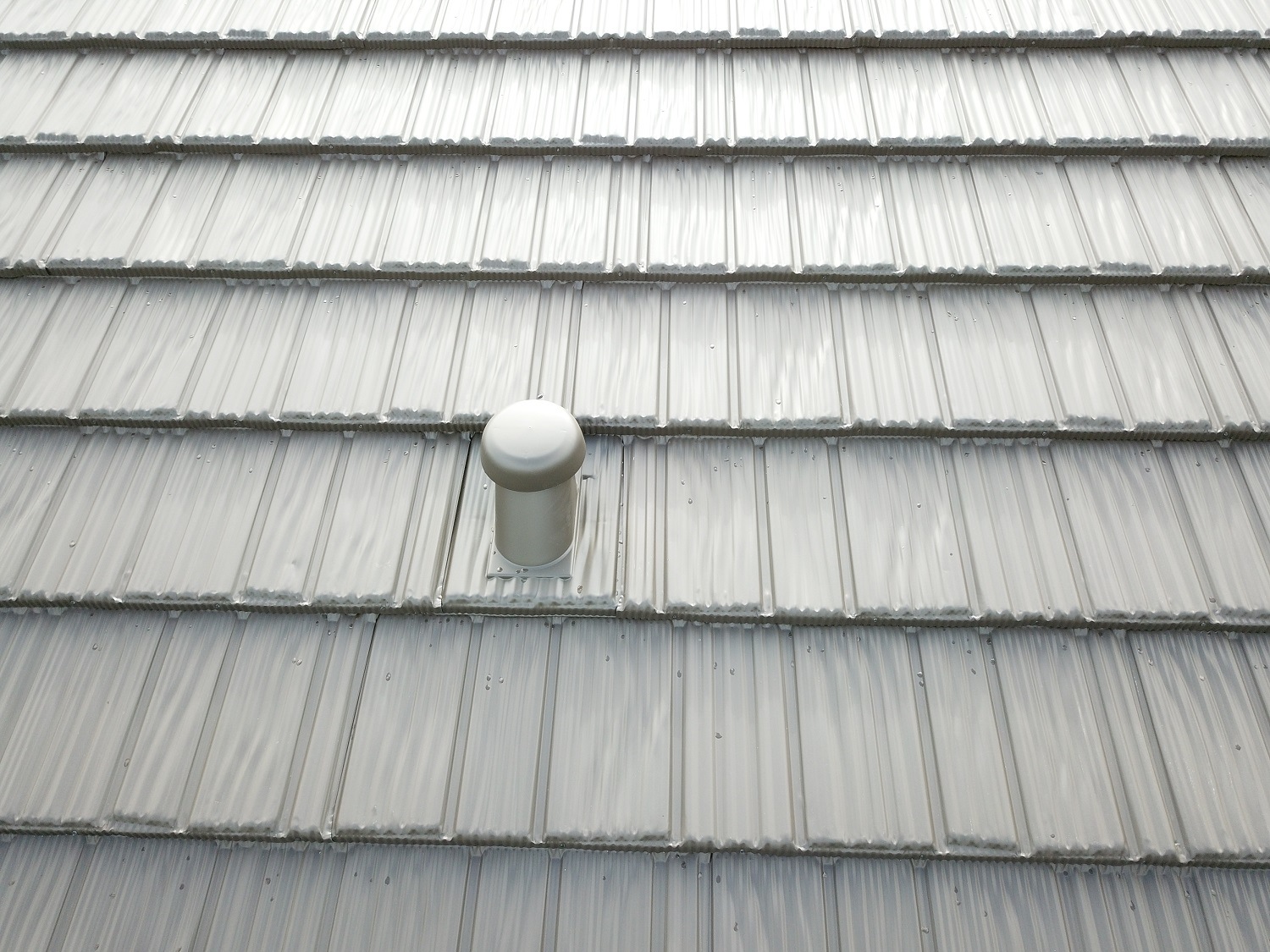

On installation, the Gerard Sanitary Port (G110 series) is overlapped by the above and side tiles to become integrated with the roof. Fasteners installed next to the laps - but not through the vents - complete the installation.

Key features:

• Discreet, integrated sanitary ventilation solution, suitable for both mechanical and passive vent systems.
• Vent and pipe manufactured from HIPS (High Impact Polystyrene) and is ideal for highly corrosive areas. Insulation of the pipe manufactured from EPS (Expanded Polystyrene).
• Designed to divert rain and prohibit the entry of leaf fall.

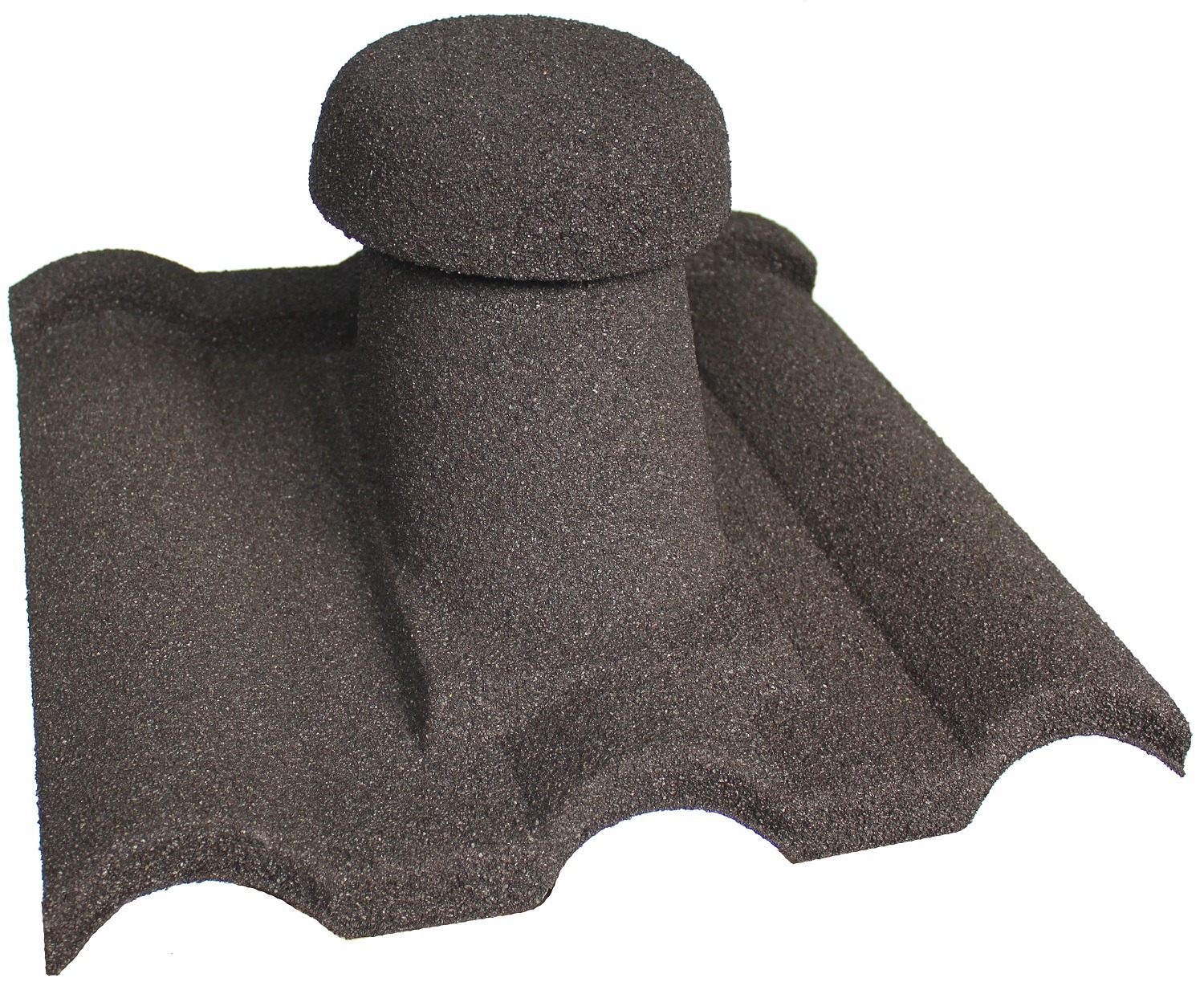

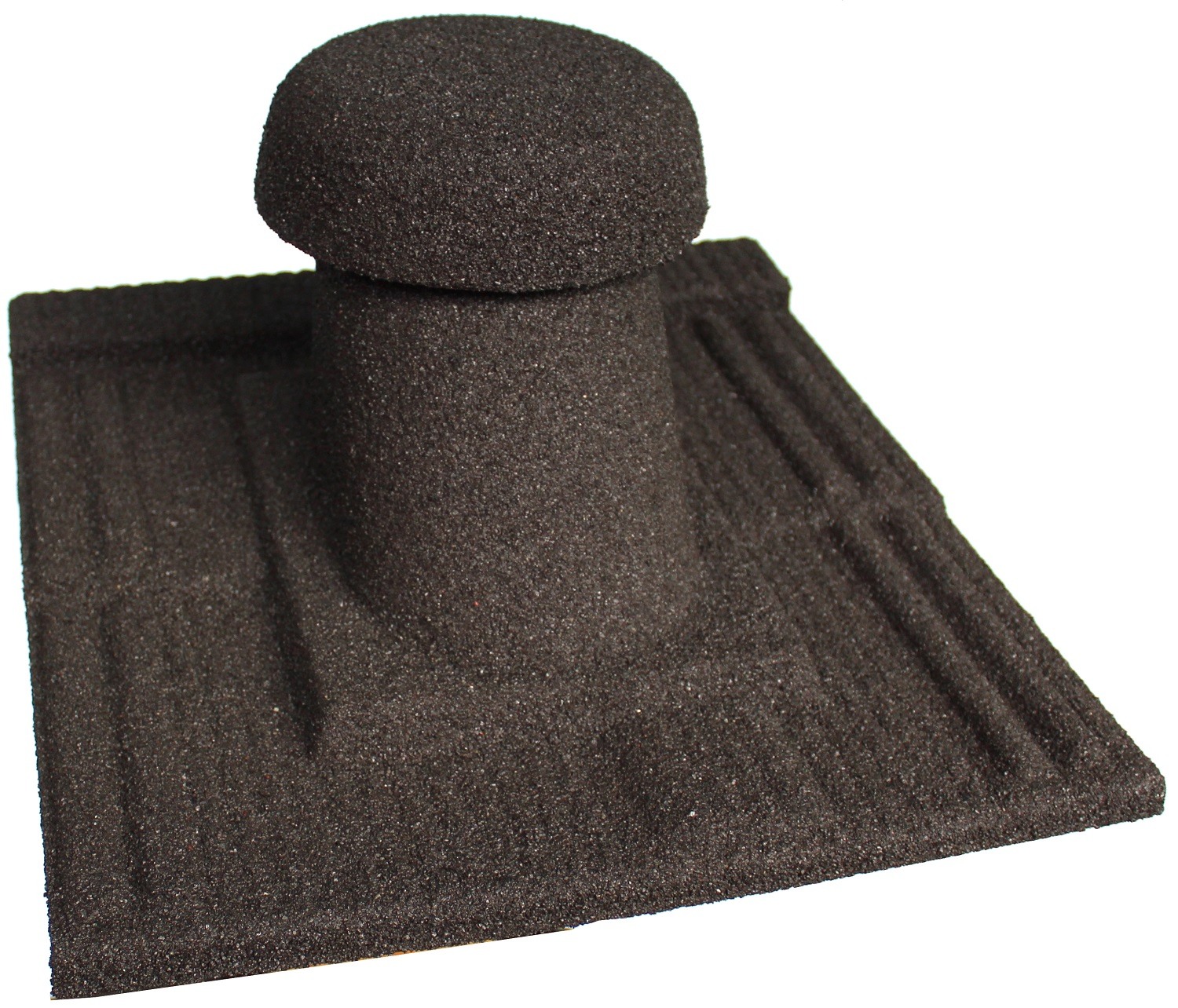

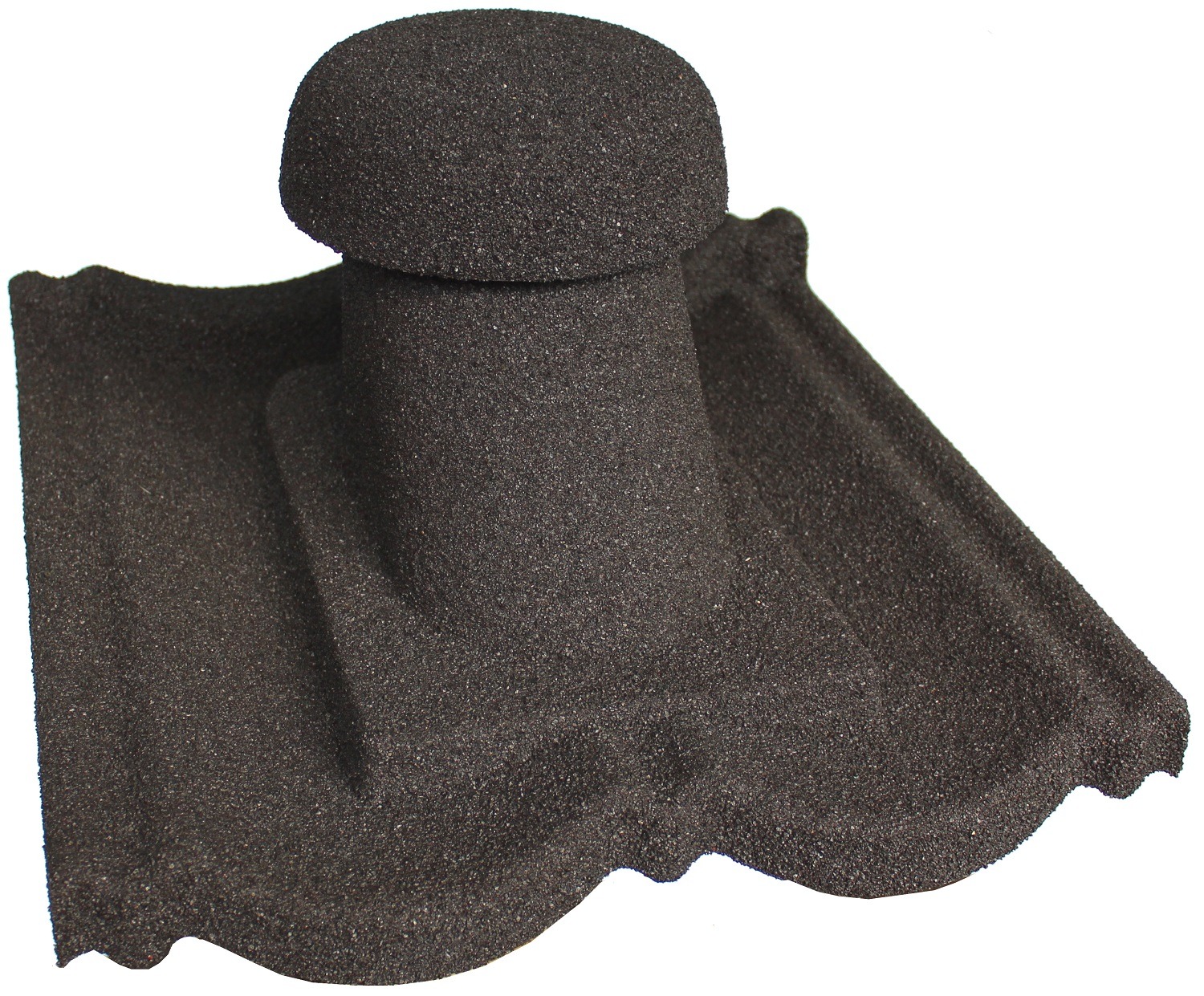

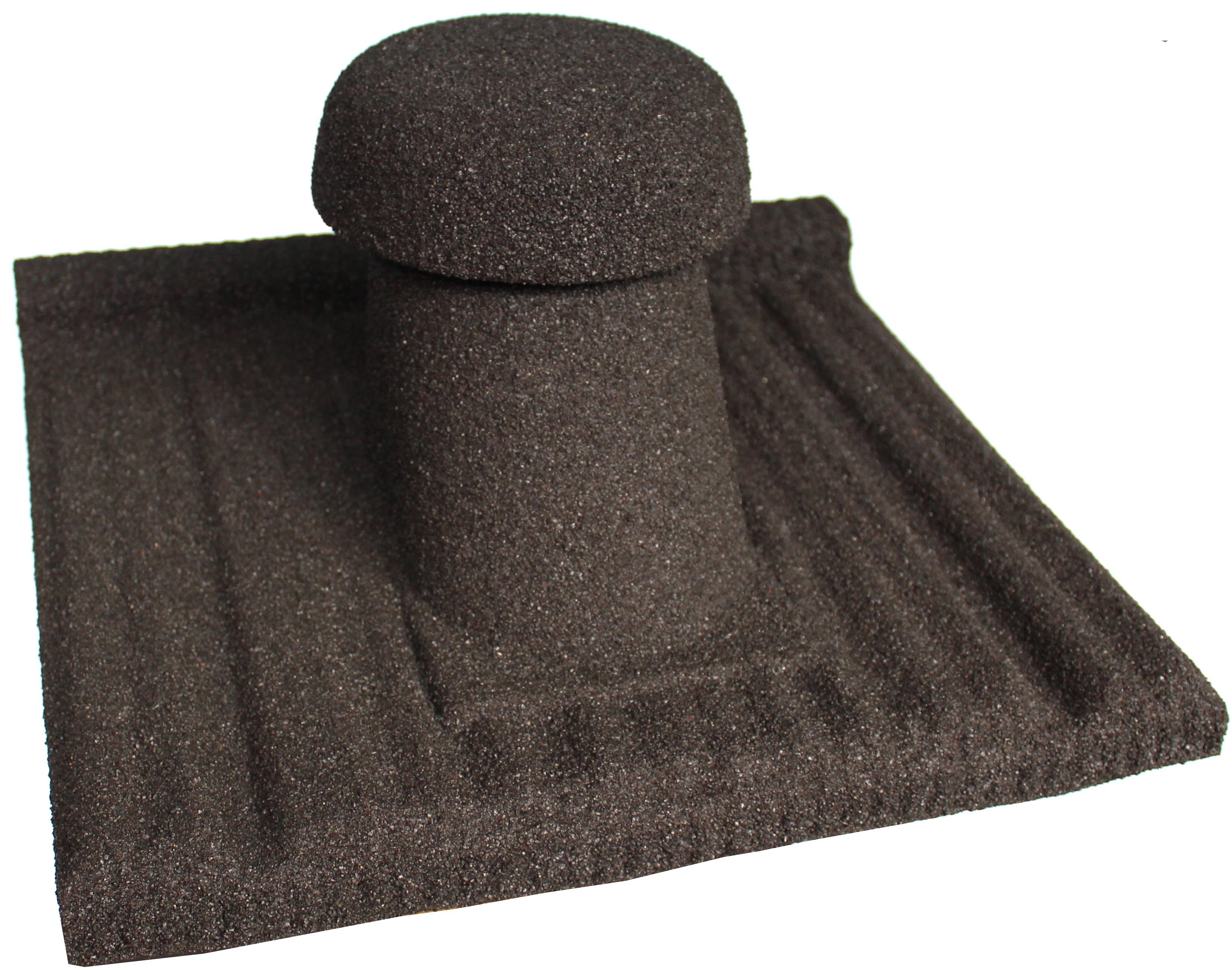

• Compatible with seven Gerard profiles – vent is supplied installed on a base plate shaped to fit desired profile.
• Installed as fully integrated part of a Gerard pressed steel roof system.
• Covered by Gerard Roofs’ warranty when installed as part of a Gerard pressed steel roof system, and by a Gerard Certified Roofer (GCR).

​Range:

With different design iterations, the Gerard Sanitary Port (G110 series) can be matched to most profiles and applicable colours and textures in the Gerard range.

(Unique product IDs in brackets)

• Gerard Heritage (TG110)
• Gerard Stratos (CG110)
• Gerard Milano (MG110)
• Gerard Senator (OBG110)
• Gerard Classic (GG110)

Scope of use:

Suitable for use in new builds and roofs being refurbished using Gerard pressed steel system:

• 15–45 degree in pitch.
• Wind zones up to and including extra high as defined in NZS3604:2011.
• All corrosion zones as defined in NZS3604:2011.

​
Limitations on use:

• The Gerard Sanitary Port (G110 series) is designed for use with Gerard pressed steel roof systems only.
• System is not compatible with the Gerard Oberon profile.

Statement of Building Code compliance:

The Gerard Sanitary Port (G110 series) complies with the following sections of the New Zealand Building Code:

• B1 Structure
• B2 Durability



Roof Tile Group and Gerard Roofs are ISO 9001:2015 accredited by Telarc (Certificate #739). Certified since 1995.

In-service history:

Gerard Roofs has been supplying passive flow roof vents for Gerard pressed steel roof systems worldwide, for over 30 years.

The Gerard Sanitary Port (110 series), and Gerard Free-flow Port (LV200) are new solutions for the New Zealand market, imported from Europe.

Other performance attributes:

• Manufactured from HIPS (High Impact Polystyrene) and coated with Gerard’s Textured or Satin finish.
• Covered by Gerard Roofs’ warranty when installed as part of a Gerard pressed steel roof system, and by a Gerard Certified Roofer (GCR).
