Edgetec Double Disc Anchor Balustrade

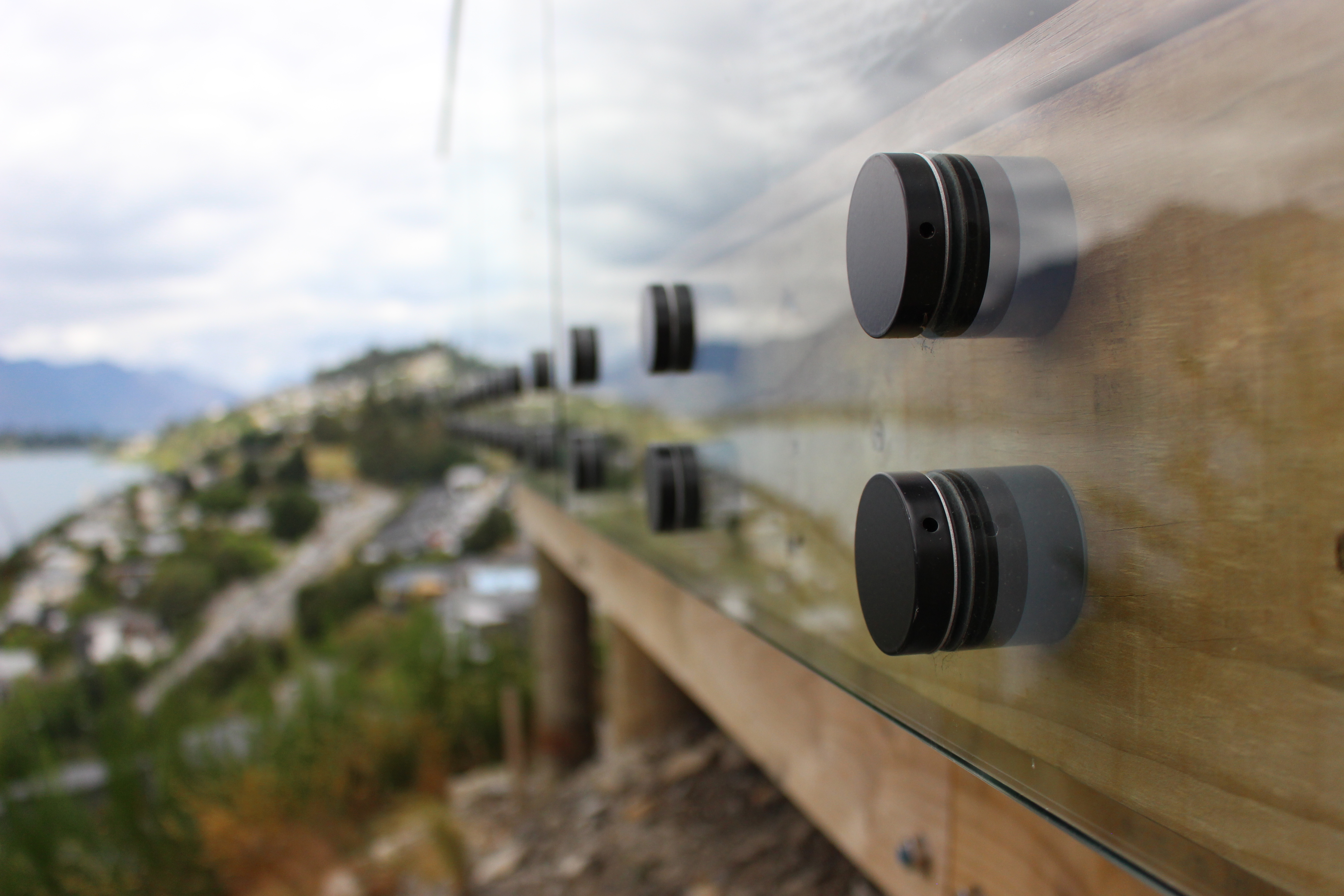

The Edgetec Double Disc Anchor is a traditional 50mm diameter anchor fixing, available in powder coated aluminium and polished or satin stainless steel finishes. For 12 or 15mm toughened glass panels with an interlinking top rail, or 15.2mm or 17.2mm Laminated Glass (with glass clamps) and 13.52mm or 17.52mm SentryGlas with no interlinking top rail.

Key Features

• Manufactured from architectural grade aluminium
• Surface finished in New Zealand in a choice of Dulux powder coat colours
• Also available in solid 316 marine grade polished or satin stainless steel
• Hidden fixing details standard
• 30mm long body sets panels out from deck for easier water drainage and cleaning

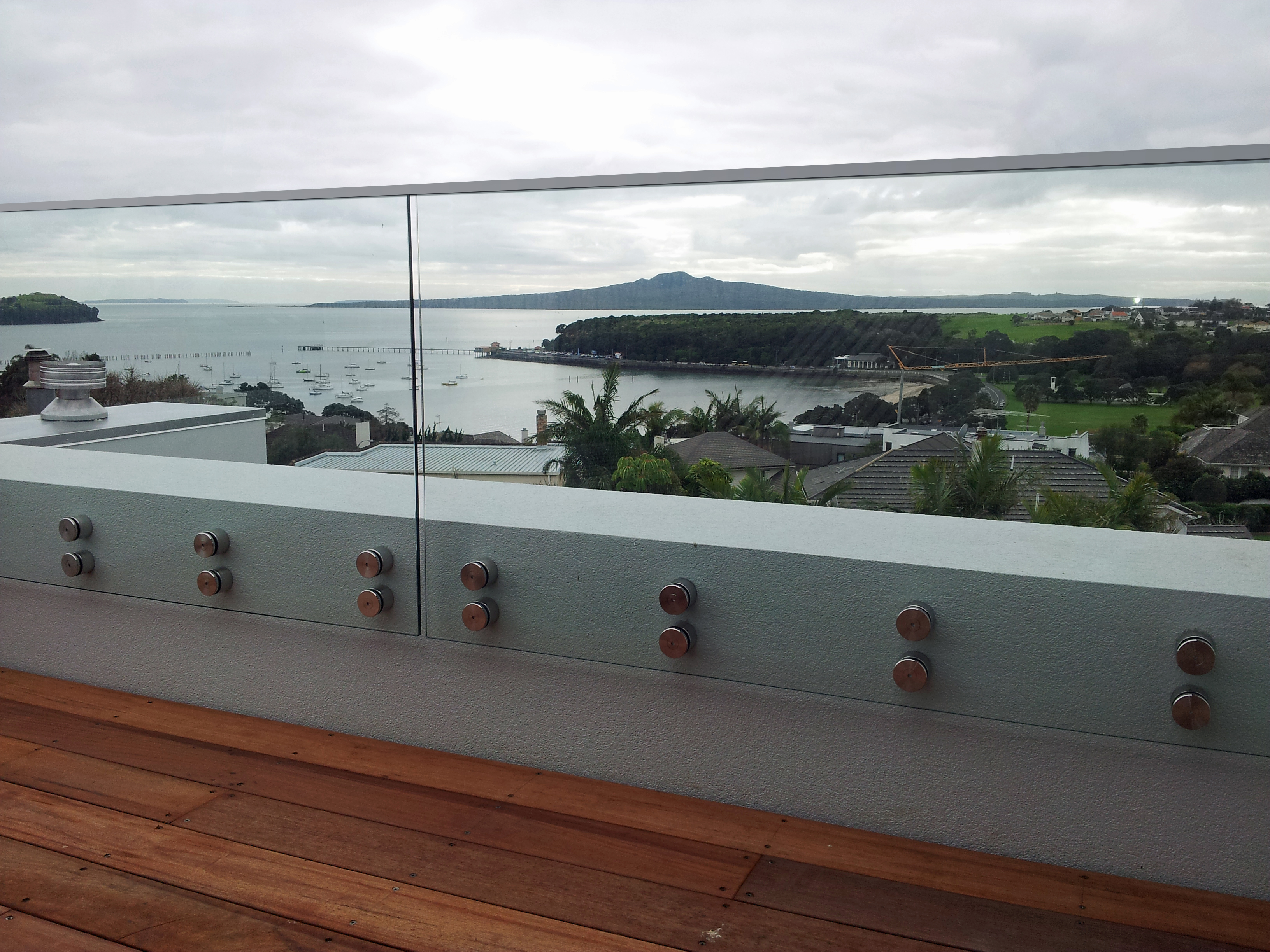

• Available in 12 or 15mm toughened glass with Interlinking Top Rail
• No Interlinking Top Rail finish available using 15.2 or 17.2mm laminated glass and 13.52mm or 17.22mm Sentry laminated glass.
• A range of glass stiffener brackets available for NZS4223.3.2016 conformance (laminated glass)
• Complies with NZS1170:2002
• No fixings seen at deck level
• Custom made balustrade solution

Scope of Use

Edgetec Double Disc Anchor balustrade is suitable for deck and balcony barriers, pool fencing, internal stairways or landings and can be fixed to timber (including waterproof decks), concrete, and steel.

Suitable for:

• Residential and Domestic Occupancy types A, A Other, and C3
• Commercial Occupancy types B, E, and C3

A hidden fixing detail is standard for Double Disc Anchor fixings.

Limitations on Use

• The Edgetec Double Disc Anchor system must only be installed in accordance with the Edgetec Double Disc Anchor product manual
• Glass must have a minimum strength of 100MPa
• All glass edges must be polished
• All glass holes must be smooth and free of chips and cracks

Statement of Building Code Compliance

• The Edgetec Double Disc Anchor balustrade system has been engineered and tested by independent engineers to comply with NZ standards AS/NZS1170 and NZS4223.3.2016, New Zealand Building Code B1, B2, F2, F4, F9 and section 162C of the Building Act (pool fencing regulations)
• Edgetec Double Disc Anchor balustrade is suitable for Residential and Domestic Occupancy types A, A Other, and C3
• Edgetec Double Disc Anchor balustrade is suitable for Commercial Occupancy types B, E, and C3

Other Performance Attributes

• Powder coated aluminium — finished in NZ in a choice of Dulux powder coat colours
• Also available in solid 316 marine grade polished or satin stainless steel
