Decortech Hole Perforation Patterns

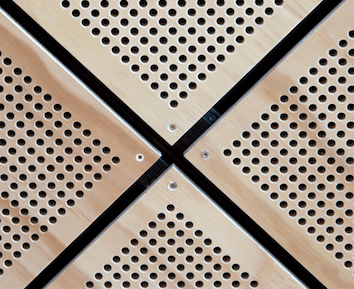

Decortech has 10 standard hole patterns ranging from 5 – 30% open areas and can achieve NRC values up to .85. Holes sizes range from 5 – 25mm diameter and 13.5 or 27mm pitch. Decortech can also create customised versions to fulfil any project requirements and can route to custom sizes as well as supplying negative edge details and specialist edge details such as mitres, rebates, and drop in tile profiles.

Data sheets are available for all standard perorations that advise open areas and NRC values for all panels. Talk to us today about how to achieve the open area you require for your project.

Substrates available are painted or Real timber veneer MDF or Firesafe MDF (Group 1s), Firesafe Radiata or Plywood. See our Technical Specification Sheets for more information on these substrates.

All panels come with Decoustic 85 felt bonded to the back as standard. Acoustic blanket can also be provided if required. All Decortech panels are prefinished saving time and cost onsite and reducing potential issues such as spills, overspray or damage.

Shop drawings are done for all our panels prior to manufacturing allowing panels to be reviewed and changed as necessary before starting.

Decortech recommend the use of an acoustic engineer when specifying the acoustic requirements for your project.
