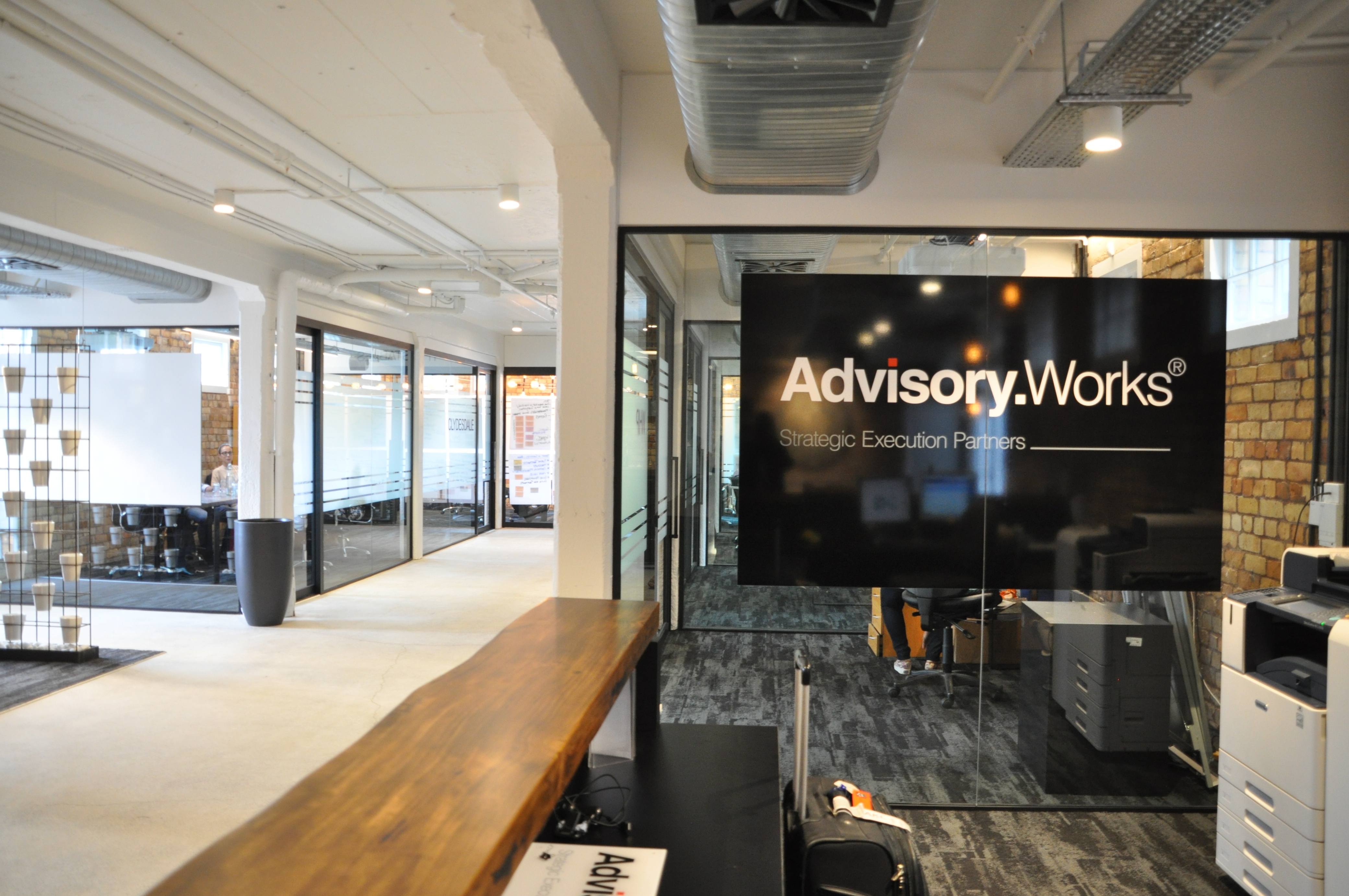

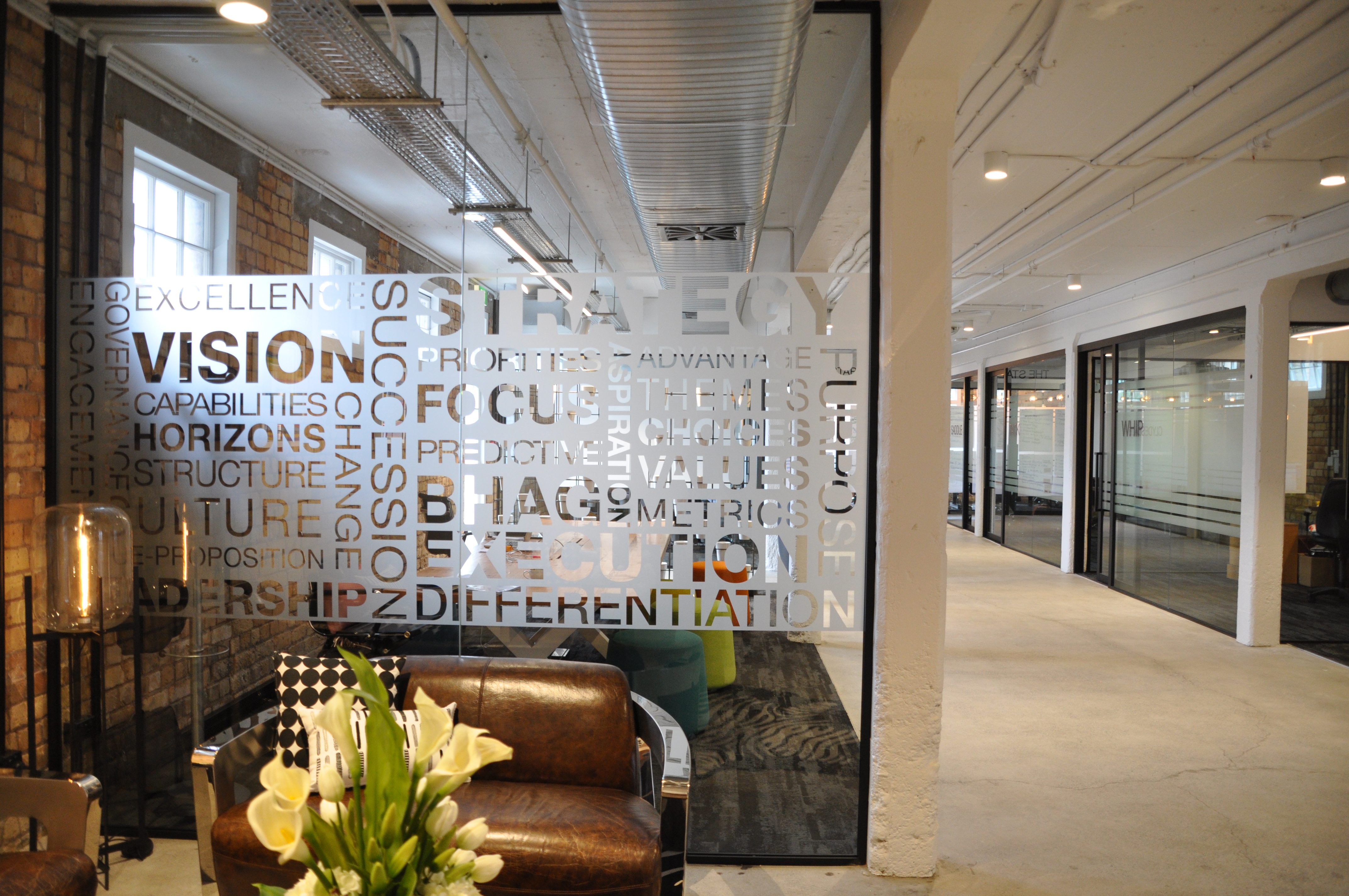

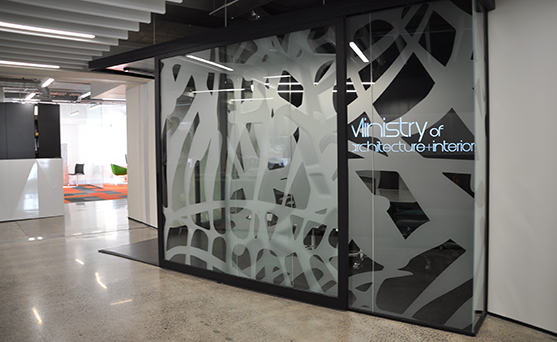

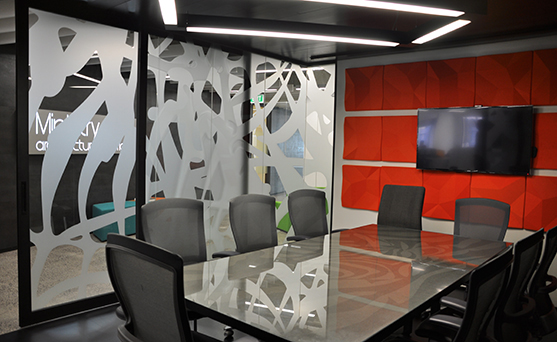

C Series 45 - Partitioning System

Product Description

C Series 45 - Partitioning is used as a commodity system when budget is an factor but can also be designed into the A Series for a slimmer look.

The system has the following options available:

  • Standard glazing profile of 45mm wide x 25mm high
  • Standard wall size based around 64mm or 92mm steel stud with one layer of plaster boars each side
  • Can accommodate glass thickness between 6mm - 12.38mm max
  • Door thicknesses between 38mm - 50mm max can be used
  • Can be fixed to standard openings or fixed to 105 or 132 series head/sill track
