AMF THERMATEX Star

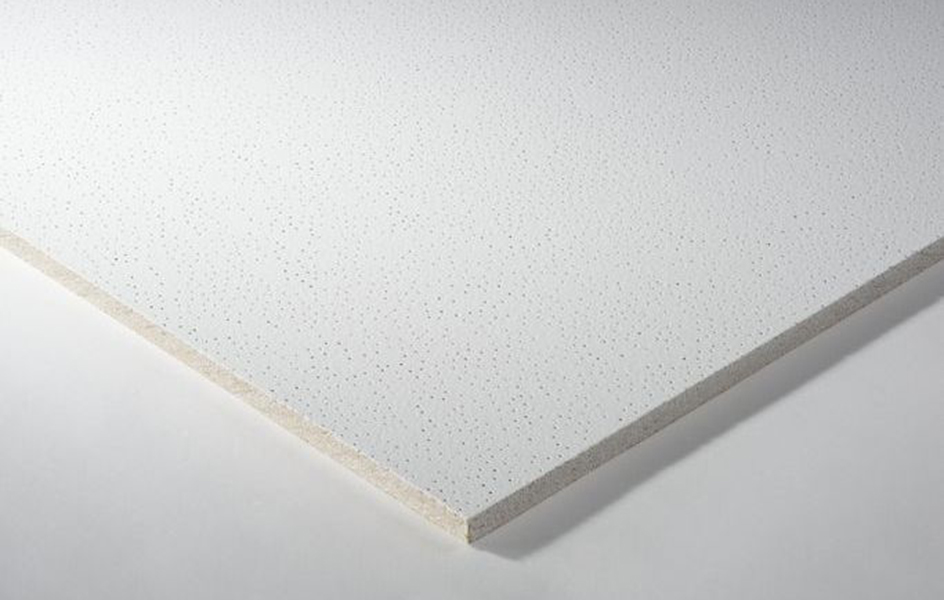

The fine perforation of THERMATEX® Star produces a remarkable acoustic performance and fulfills all fire protection requirements in a suspended ceiling tile.

The very fine, irregular hole structure, on the otherwise smooth surface, forms a striking and elegant ceiling design and fits perfectly into modern, design concepts.

Our AMF Acoustic Range carries the Declare label.

• System - Exposed Grid System, demountable ceiling
• Dimensions - 600 x 600 mm, 1200 x 600 mm
• Thickness / Weight - 15mm (c.4kg/m2)
• Colour - White similar to RAL 9010
• Edge details - SK, VT 15/24 (*on request)
• Fire Resistance class - F30 - F120 according to DIN 4102 part 2 (according to test certificate)REI30 - REI120 according to EN 13501 part 2 (according to test certificate)
• Building material class - A2-s1, d0 according to DIN EN 13501-01
• Sound absorption - DIN EN ISO 354αw = 0,60 according to DIN EN ISO 11654NRC=0,60 according to ASTM C 423
• NRC - 0.60 as per ASTM C 423
• Sound attenuation - Dn,c,w = 34 dB as per EN 20140-9 (15 mm thickness)
• Light reflectance - For white similar to RAL 9010 glare-free approx. 90%
• Thermal conductivity λ - 0.052 – 0.057 W/mK as per DIN 52612
• Humidity - Up to 95 % RH
