Safetor Concrete Through Bolt Anchor (CTB)
Product Description
Safetor Concrete Through Bolt Anchor (CTB)
Type Of Anchor Proprietary Anchor
Size
16mm Dia
Concrete thickness:100mm - 200mm
Design

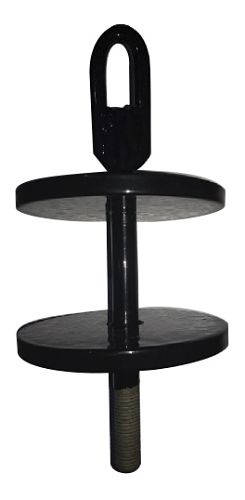

This anchor is designed to be bolted through concrete.

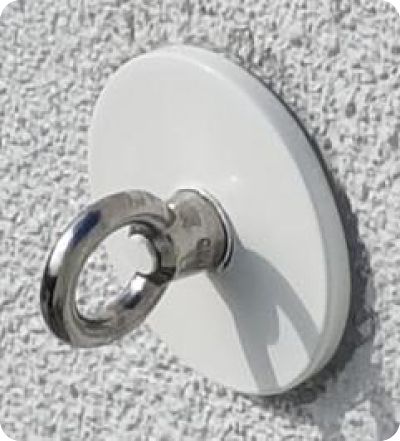

A round disc washer 10mm thick is placed on both sides to protect the concrete from
chipping at the edges of the hole, both washers are bonded to the concrete with
Sika flex 11FC as this provides a seal/gasket and an adhesive for added strength.
Ultimate Yield
16mm = 15kN
30mm = 21kN
Application As Per AS/NZS1891.4:2009 Standards
1 Person Free Fall Arrest: 15kN
2 Person Free Fall Arrest: 21kN
1 Person Limited Free Fall Arrest: 12kN
