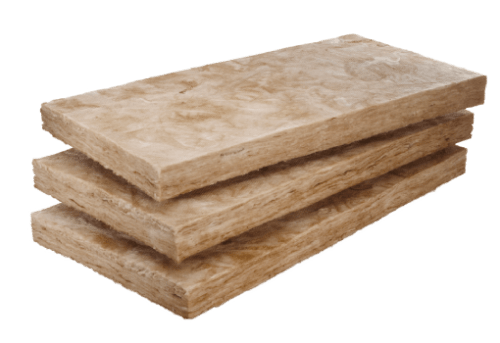

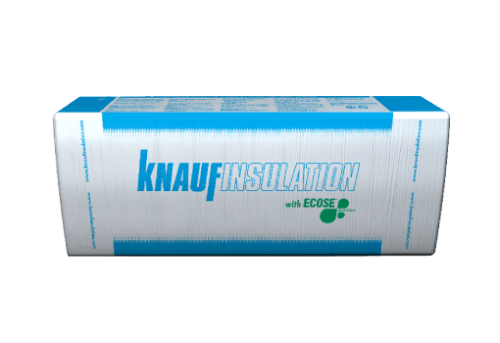

Knauf Insulation Acoustic batts

Product Description

The Knauf Insulation Acoustic batt range includes a selection of densities to provide builders, designers, installers the opportunity to choose the best acoustic performance for their project. Knauf Insulation acoustic batt will improve the acoustic performance of the building in which it has been installed by absorbing the transfer of unwanted sound from external sources and between adjoining rooms.



The super-soft and easy to handle benefits of Knauf Insulation glasswool have been further enhanced with TwinTech®. TwinTech heralds another advancement in insulation manufacture — the dual forming technique ensures there is a smooth finish on both sides of the insulation, which improves product handling and appearance. Knauf Insulation glasswool is made using up to 80% recycled glass and with ECOSE® Technology, a sustainable, bio-based binder that contains no added formaldehyde.



Enhanced moisture resistance with DriTherm® technology. Knauf Insulation glasswool is silicone treated, which provides moisture resistance.



Benefits

  • DriTherm® Technology - silicone treated glasswool for increased durability
  • TwinTech® - smooth finish on both sides
  • High thermal performance - year round comfort
  • Sound absorbing
  • Non-combustible
  • Saves energy - lower energy bills
  • No added formaldehyde
  • Soft to handle and install
  • Compression packed - more product per pack
  • Odourless



Knauf Insulation Acoustic (Timber Frame Partition Walls)

Material Code R-Value (m²K/W) Thickness (mm) Width (mm) Length (mm) Area per pack (m² Pieces per pack
683655

2.6

90 430 1160 7.0 14
683656 2.6 90 580 1160 9.4 14
683646 2.8 90 430 1160 5.0 10
683647 2.8 90 580 1160 6.7

10

691267 4.1 140 580 1160 6.1 9
779911 4.4 140 580  1160 4.0 6

Knauf Insulation Acoustic (Steel Frame Partition Walls)

Material Code R-Value (m²K/W) Thickness (mm) Width (mm) Length (mm) Area per pack (m²)  Pieces per pack
683669

1.3

50 600 2700* 32.4 20
683670 1.9 75 600 2700* 22.7 14

*Folded segments

Knauf Insulation Acoustic (Mid-Floor)

Material Code R-Value (m²K/W) Thickness (mm) Width (mm) Length (mm) Area per pack (m²)  Pieces per pack
683655

2.6

90 430 1160 7.0 14
683646 2.8 90 430 1160 5.0 10

Knauf Insulation Acoustic (Skillion Roof)

Material Code R-Value (m²K/W) Thickness (mm) Width (mm) Length (mm) Area per pack (m²)  Pieces per pack
683642

3.2 Skillion

105 430 1160 5.5 11
779683 5.0 Skillion 165 430 1160 3.0 6
781973 6.0 Skillion 215 430 1160 3.5 7
781979 7.4 Skillion 265 430 1160 3.0

6
