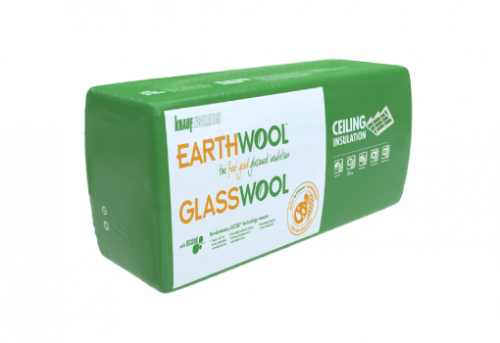

Earthwool® glasswool insulation: Ceiling batts
Product Description
The Earthwool® glasswool insulation: Ceiling batt range includes a selection of R-values to provide builders, designers, installers the opportunity to choose the best thermal performance for their project. Earthwool glasswool insulation: Ceiling batt will improve the thermal comfort and energy efficiency of the building in which it has been installed thus keeping it cool in summer and warm in winter.
The super-soft and easy to handle benefits of Earthwool glasswool have been further enhanced with TwinTech®. TwinTech heralds another advancement in insulation manufacture — the dual forming technique ensures there is a smooth finish on both sides of the insulation, which improves product handling and appearance.
Earthwool glasswool insulation: Ceiling batt is made using up to 80% recycled glass and with ECOSE® Technology, a sustainable, bio-based binder that contains no added formaldehyde.
Enhanced moisture resistance with DriTherm® Technology. Earthwool glasswool insulation is silicone treated, which provides moisture resistance for up to 50 years.

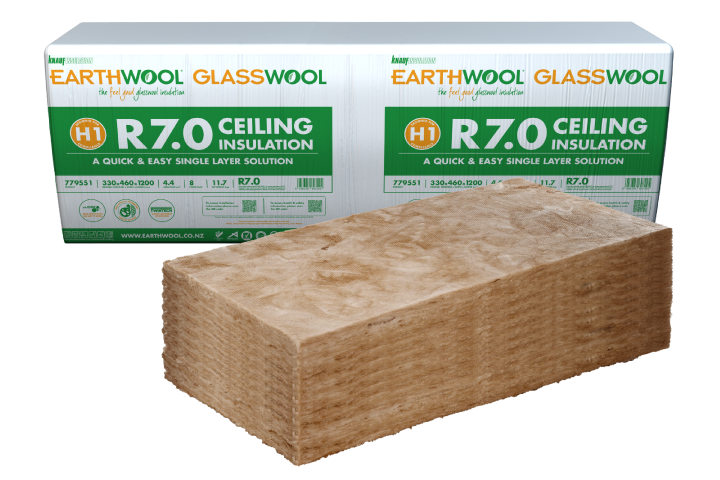

The R7.0 ceiling batt is extra thick, allowing it to be installed in a single layer with no notching to meet new H1 compliance standards.
Benefits
- DriTherm® Technology - silicone treated glasswool for increased durability
- TwinTech® - smooth finish on both sides
- High thermal performance - year round comfort
- Sound absorbing
- Non-combustible
- Saves energy - lower energy bills
- No added formaldehyde
- Soft to handle and install
- 50 year warranty
- Compression packed - more product per pack
- Odourless
Earthwool® glasswool insulation: Ceiling Segments
| Material Code | R-Value (m²K/W) | Thickness (mm) | Width (mm) | Length (mm) | Area per pack (m²) | Pieces per pack |
|---|---|---|---|---|---|---|
| 779554 | 8.0 | 330 | 460 | 1200 | 3.3 | 6 |
| 779551 | 7.0 | 330 | 460 | 1200 | 4.4 | 8 |
| 683653 | 5.2 | 210 | 430 | 1160 | 5.5 | 11 |
| 731846 | 4.1 | 195 | 430 | 1160 | 7.5 | 15 |
| 731850 | 3.6 | 175 | 430 | 1160 | 8.5 | 17 |
| 812468 | 3.4 | 110 | 580 | 1160 | 4.7 | 20 |
| 683674 | 3.3 | 155 | 430 | 1160 | 10.5 | 21 |
Earthwool® glasswool insulation: Ceiling Segments - Skillion roof
| Material Code | R-Value (m²K/W) | Thickness (mm) | Width (mm) | Length (mm) | Area per pack (m²) | Pieces per pack |
|---|---|---|---|---|---|---|
| 781979 | 7.4 | 265 | 430 | 1160 | 3.0 | 6 |
| 781973 | 6.0 | 215 | 430 | 1160 | 3.5 | 7 |
| 779683 | 5.0 | 165 | 430 | 1160 | 3.0 | 6 |
| 683642 | 3.2 | 105 | 430 | 1160 | 5.5 | 11 |
| 812468 | 3.4 | 110 | 580 | 1160 | 4.7 | 20 |
