Keylite Top Hung Roof Window
By Adlux
Product Description

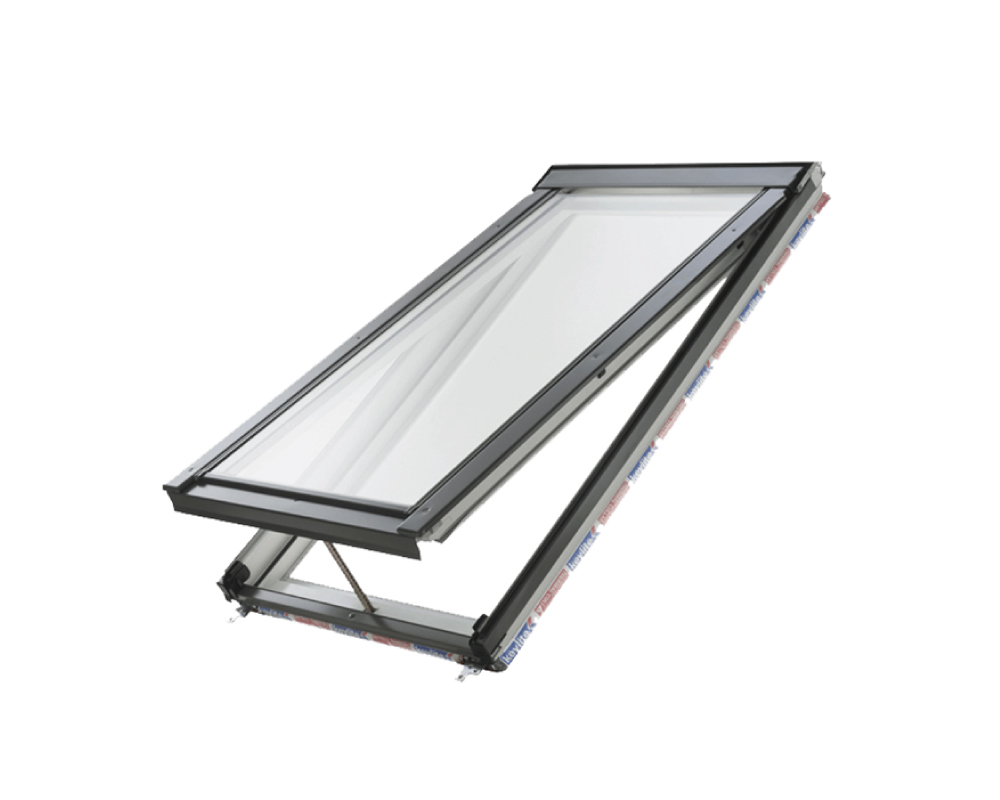

Top Hung Roof Window
Maximise daylight and natural ventilation.

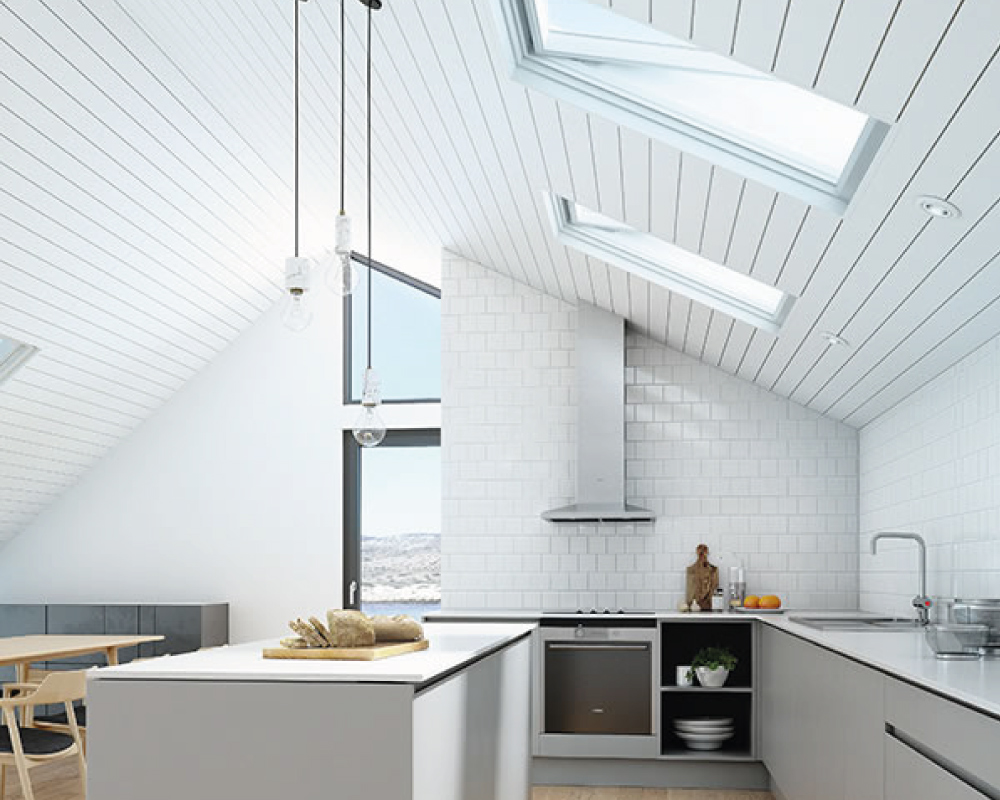

The Keylite Top Hung Roof Window gives you an unrestricted view of your surroundings, visually expanding interiors with daylight, fresh air and sky views.
With an insect screen as standard, these windows are perfect for any rooms needing daylight and fresh air. Especially suited to New Zealand coastal environments and available as manual operation or electric with a remote control for ease of operation. Comes standard with Keylite’s integrated thermal collar for better thermal performance and unique pre-fitted Flick-Fit brackets for faster installation.
Keylite Top Hung Window features:
- 15 - 90° Pitch range
- Manual & Electric opening
- White polyurethane internal finish
- Grey outer finish
- Warm edge double glazing
- Choice of glazing spec’s
- Flick-Fit brackets
- Integrated thermal collar
- Centre pane R-Value 0.91
Technical Files
-
Data Sheet RWM - Manual
-
Data Sheet RWE - Electric
-
Keylite Top Hung Electric – Corrugate – Back Tray (pdf)
-
Keylite Top Hung Electric – Corrugate – Sprung Sheet
-
Keylite Top Hung Electric – Trough Section Profile (pdf)
-
Keylite Top Hung Electric – Standing Seam (pdf)
-
Keylite Top Hung Electric – Metal Tile (pdf)
-
Keylite Top Hung Electric – Trapezoid Profile (pdf)
CAD Files
-
Keylite Top Hung Electric – Corrugate – Back Tray (dwg).dwg
-
Keylite Top Hung Electric – Corrugate – Sprung Sheet (dwg).dwg
-
Keylite Top Hung Electric – Trough Section Profile (dwg).dwg
-
Keylite Top Hung Electric – Standing Seam (dwg).dwg
-
Keylite Top Hung Electric – Metal Tile (dwg).dwg
-
Keylite Top Hung Electric – Trapezoid Profile (dwg).dwg
