J04 - Sikla Siaqua Fastening - Fixed Point MS w/ Lining
By Steel & Tube
Product Description
Application:
Soundproof Fixed Point construction for secure absorption of high mechanical loads resulting from Siaqua DSS Systems. Especially applicable for fixations according to DIN 4109.
Configuration:

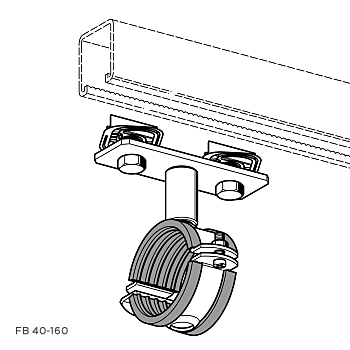

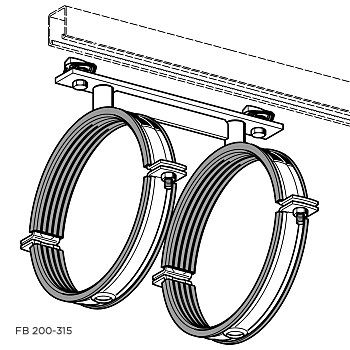

Pipe clamp(s) Stabil D-3G with lining and pre-assembled fixed point adaptions, suitable for sizes 40 up to 315. With single thread connection for sizes 40 up to 160 and double thread connection for sizes 200 up to 315.
Assembly:
The entire fixed point module is put into the channel opening and locks automatically. While positioning the distances, the module is securely guided in the channel opening. Then hexagon bolts are tightened.
