J02 - Sikla Siaqua Fastening - Fixed Point BE w/ Lining
By Steel & Tube
Product Description
Application:
Soundproof fixed point construction for secure absorption of high mechanical loads resulting from Siaqua DSS-Systems, being directly fixed to concrete. Especially suitable for standards according to DIN 4109.
Configuration:

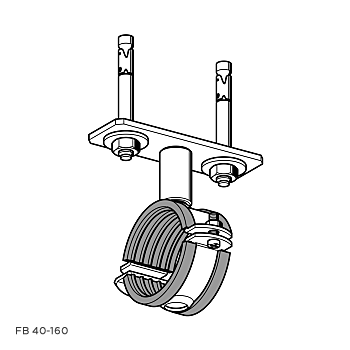

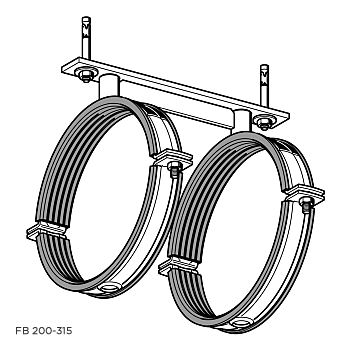

Pipe Clamps Stabil D-3G with lining, suitable for the sizes 40 up to 315. With Mounting Plate provided with single thread connection for sizes 40 up to 160 and double thread connection for sizes 200 up to 315, with two Bolt Screw Anchors M10.
