IBS Plyfloor

Plyfloor is an F11 structural plywood. The veneers are glued with an exterior phenol-formaldehyde resin. The Plyfloor sheets are CD grade; no open or loose knotholes and only minor face repairs. Sheets are supplied treated to H3.2 (micronized copper azole or MCA).

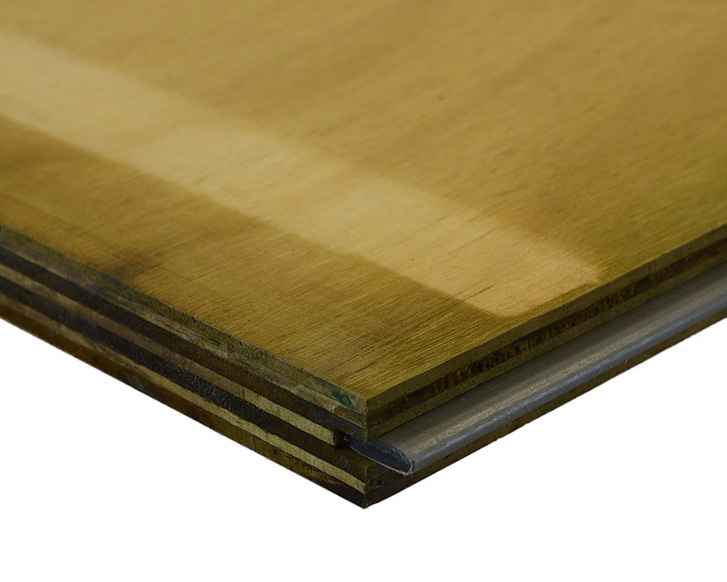

The sheets have a plastic tongue down one edge and a groove on the opposite edge down the length of the sheet. This enables edge jointing without the need for additional timber support.

Sheet sizes (length x width x depth, mm) are:

• 2400 x 1200 x 19.

IBS supplies PlyFloor for use as an internal flooring substrate, and as a substrate under roofing or decking waterproof membranes.

Benefits of Plyfloor

• Manufactured from PEFC Certified forests in Chile by Arauco
• Low Formaldehyde Emissions (LFE) panel
• Ultrasound tested on the production line
• AS/NZS 2269 structurally certified to F11
• High quality face veneer
• WBP Marine Bonded Phenolic Glue
• Plastic T&G running the length of the board

Plyfloor Intended Use

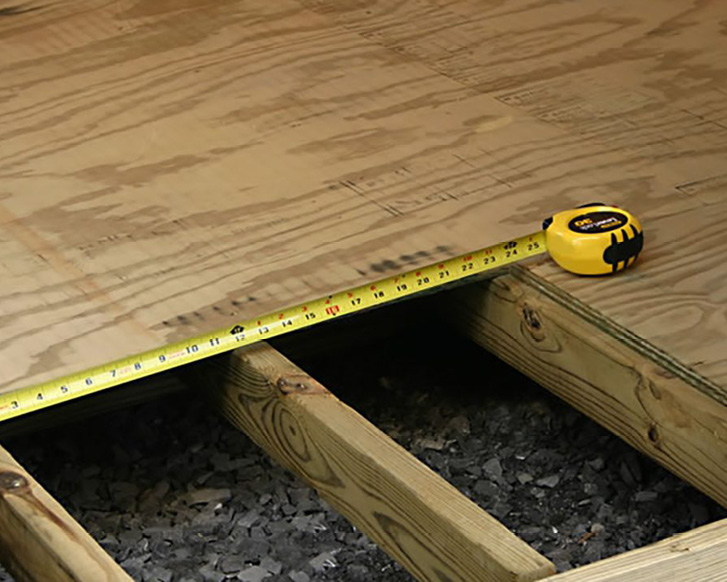

Flooring

The floor framing must be designed to NZS 3604: 2011, (section 7) or specifically designed to NZS 3603:1993. Where the substrate is existing, the designer must assure themselves that the substrate is suitable for the intended building work and intended building use. Account shall be taken in consideration of the floor loads, refer to NZS 3604:2011, (section 1). Plyfloor can be used as a structural floor diaphragm when specified in accordance with NZS 3604:2011 (section 7).

Deck or roof substrate

Specification must be in accordance with E2/AS1 with all fixings (materials and spacings) in accordance with NZS 3604:2011.
