hyCHORD® Futurebuild LVL Truss Chords

Product Description

hyCHORD® is a laminated veneer lumber (LVL) product ideal for truss chords in high-load applications where strength and predictable deflection performance are paramount. With hyCHORD, designers can exploit the increased strength properties to typically provide reduced sections (when compared to sawn timber), and utilise the predicted deflection performance to target the ideal level of camber to ensure flat ceilings and a no ‘dips or bumps’ roofline.

Features & Benefits

  • Predicted deflection performance for a more uniform finish with ceiling linings
  • Minimise joints and wastage – lengths available up to 7.2 metres
  • Straight, true, strong, lightweight and dimensionally stable
  • Veneers are bonded together using type 'A' (marine) bond, known for long-term durability in structural applications
  • Readily available and stocked H1.2 treated using a glue line and surface spray treatment to the requirements of NZS 3640
  • Untreated and H3.1 LOSP treated product available made to order subject to minimum volumes and lead times, Contact us for further information

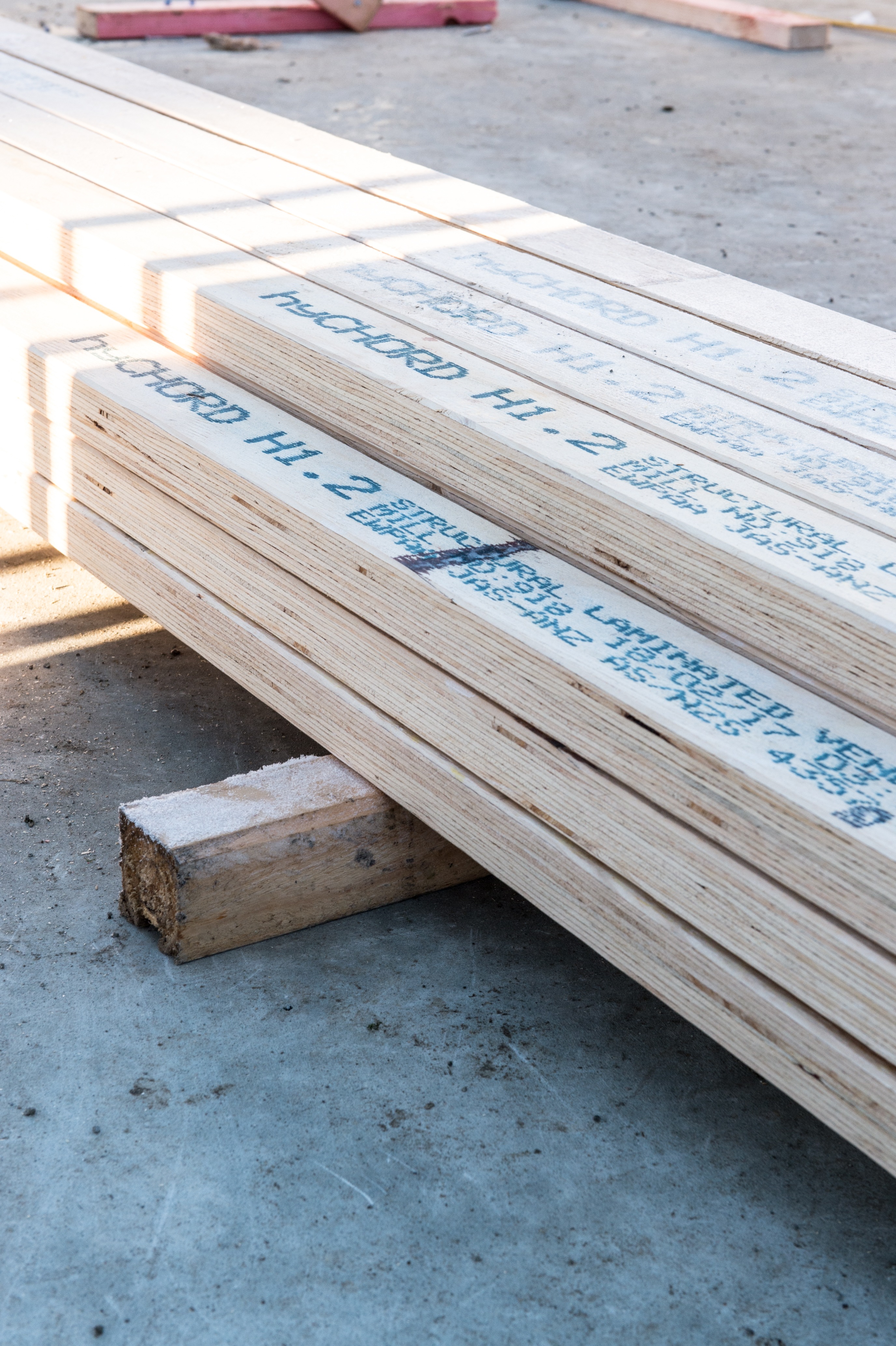

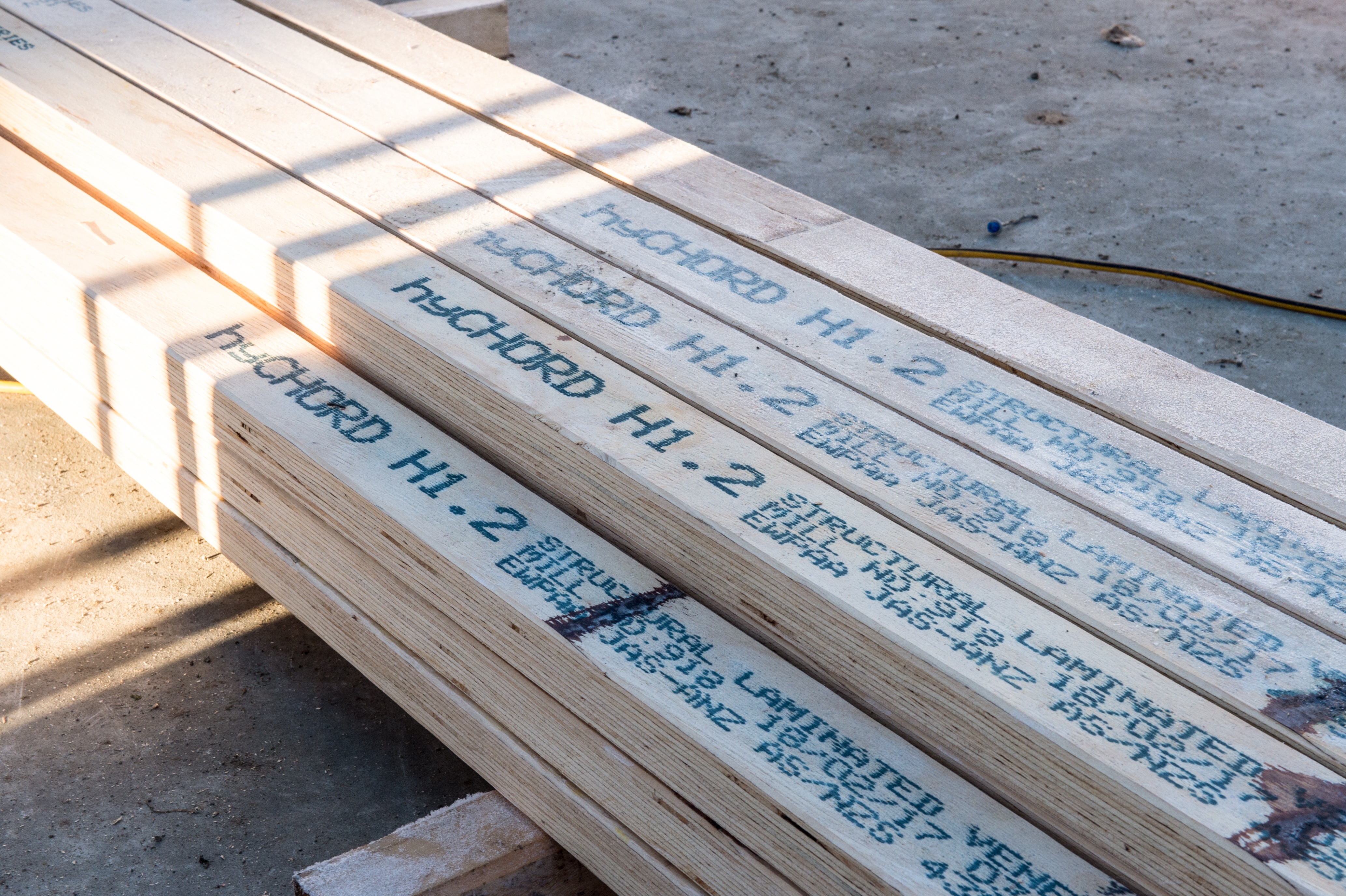

  • Each piece is branded for ease of identification
  • Stringent quality control – EWPAA certified
  • Manufactured from sustainably-grown NZ plantation pine
  • Available FSC® CoC Certified on request (Certificate Number: SCS-COC-001319)
  • Residential Span Tables available
  • Supported by technical support and software from Futurebuild LVL


Solid Futurebuild LVL products are manufactured in accordance with AS/NZ 4357, Structural Laminated Veneer Lumber.  Characteristic Properties are determined in accordance with AS/NZS 4063.2:2010 and so comply with the provisions of the New Zealand Building Code through clause 2.3 for engineering design in accordance with NZS3603:1993 Timber Structures Standard.

Futurebuild LVL is committed to manufacturing innovative engineered building products. For quality assurance the Futurebuild range is manufactured with independent audit processes and product certification.

All Futurebuild LVL products are manufactured using a type ‘A’ bond with less than 0.5mg/L formaldehyde emissions from the final product (equivalent to E0).


Please contact The Futurebuild team for available lengths
