Fairview 65 Commercial suite
By Fairview
Product Description

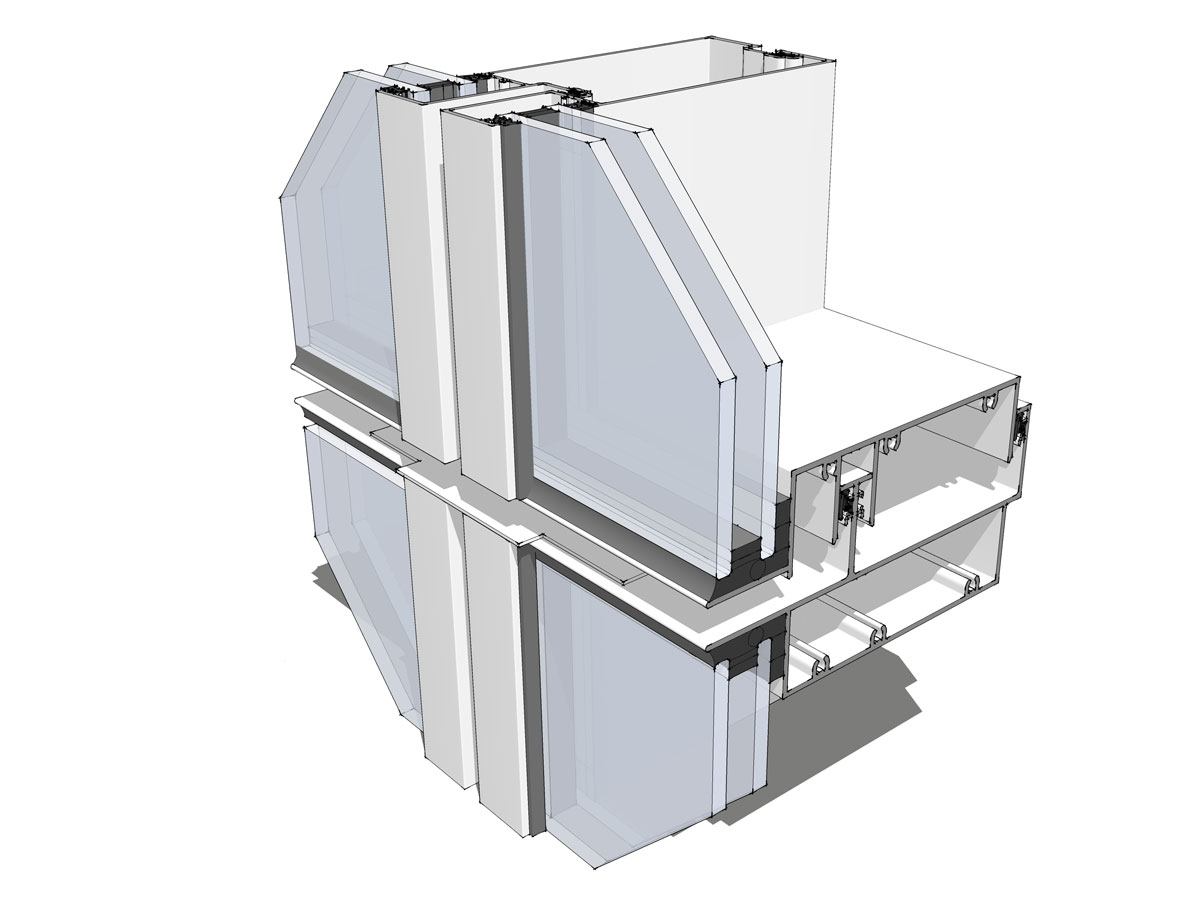

Our market-leading fully unitised curtain wall systems, 150mm ensures ease of fabrication and installation. Fairview 65 provides flexible glazing variations to make sure you can meet your project’s requirements. Ideal for apartment, industrial, institutional, office and recreational projects.
Glazing options
- Glazing capacity of up to 28mm double glazed.
- Front glaze system
- Integrate fully captive & vertical/horizontal structural glazing into the same facade
- 2 and 4 sided structural glazing.
Application
- Apartment and townhouse complexes
- Industrial parks
- Institutional facilities
- Office parks
- Office towers
- Recreational facilities
Aesthetic
Minimal and flat external aesthetic
Features overview
- Tested to AS/NZS 4284.
- Fully unitised system provides for increased quality assurance processes providing a more cost effective and efficient installation phase.
- Integrated end dams for improved glazing drainage.
- Increased seismic performance.
- Three dimensional dead load brackets for improved installation processes.
- Structural sash available.
Product range consisting of:
100 & 150mm suite depths.
Design loads and testing
The Fairview 65 has been tested at extreme pressures, in some cases simulating wind speeds in excess of 270km/h, to test ultimate structural strength.
Specific design characteristics/aesthetics
If your project requires sun louvres, sun protection, controlled ventilation and/or automatic access (automatic doors) please contact our Architectural advisors.
Finishes/Colours
Powdercoated: huge range of standard and non-standard colours.
Anodised: standard colour options are silver, black and bronze, 12, 20 and 25 micron thickness. Other colours and thicknesses are available.
Hardware
Stella, Kanso and our proprietary Verta hardware range plus most Commercial grade hardware.
