Fairview 3D Revit families Windows Doors

Product Description

Fairview Systems introduces Building Information Models (BIM) in Revit software.

The Fairview Systems Revit families were the first 3D families to be offered in the NZ joinery industry and simplify the design and specification process for architects and designers.

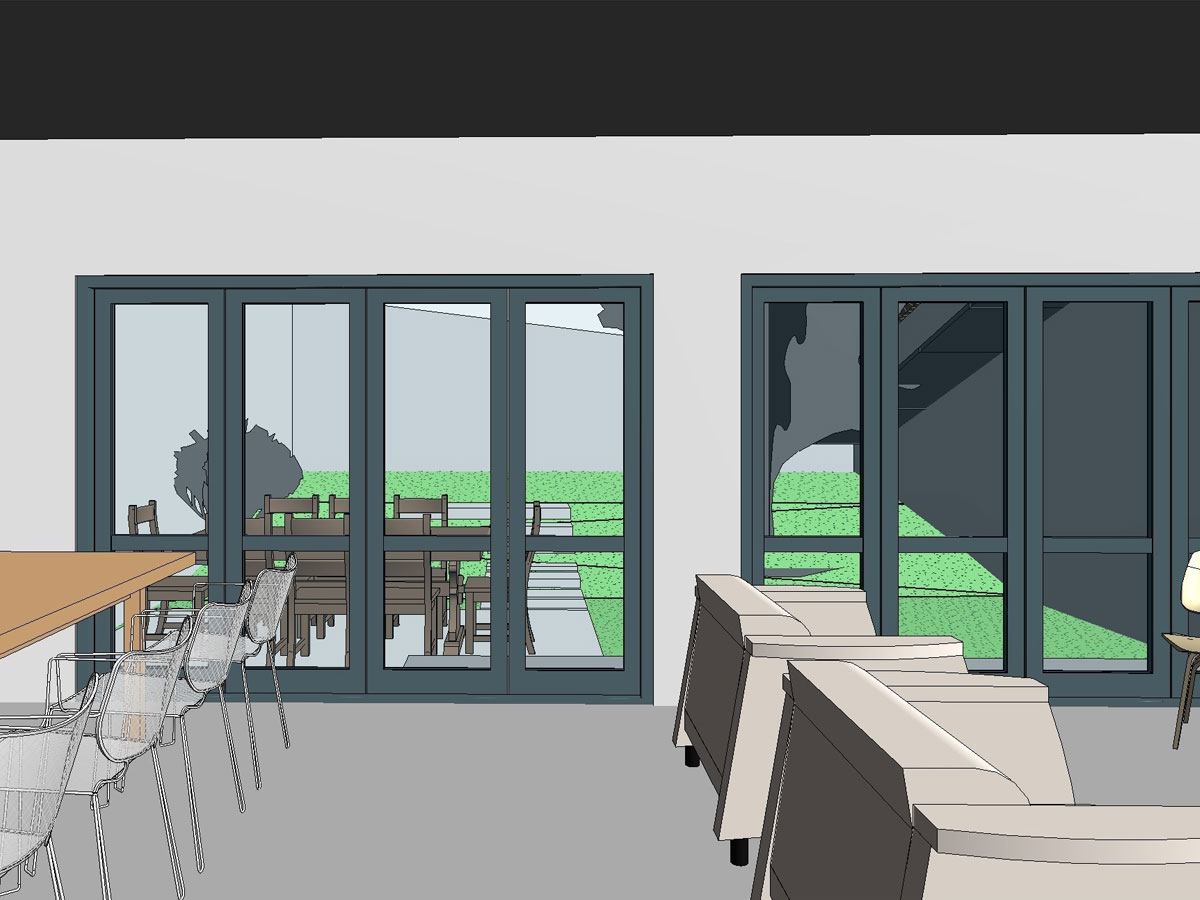

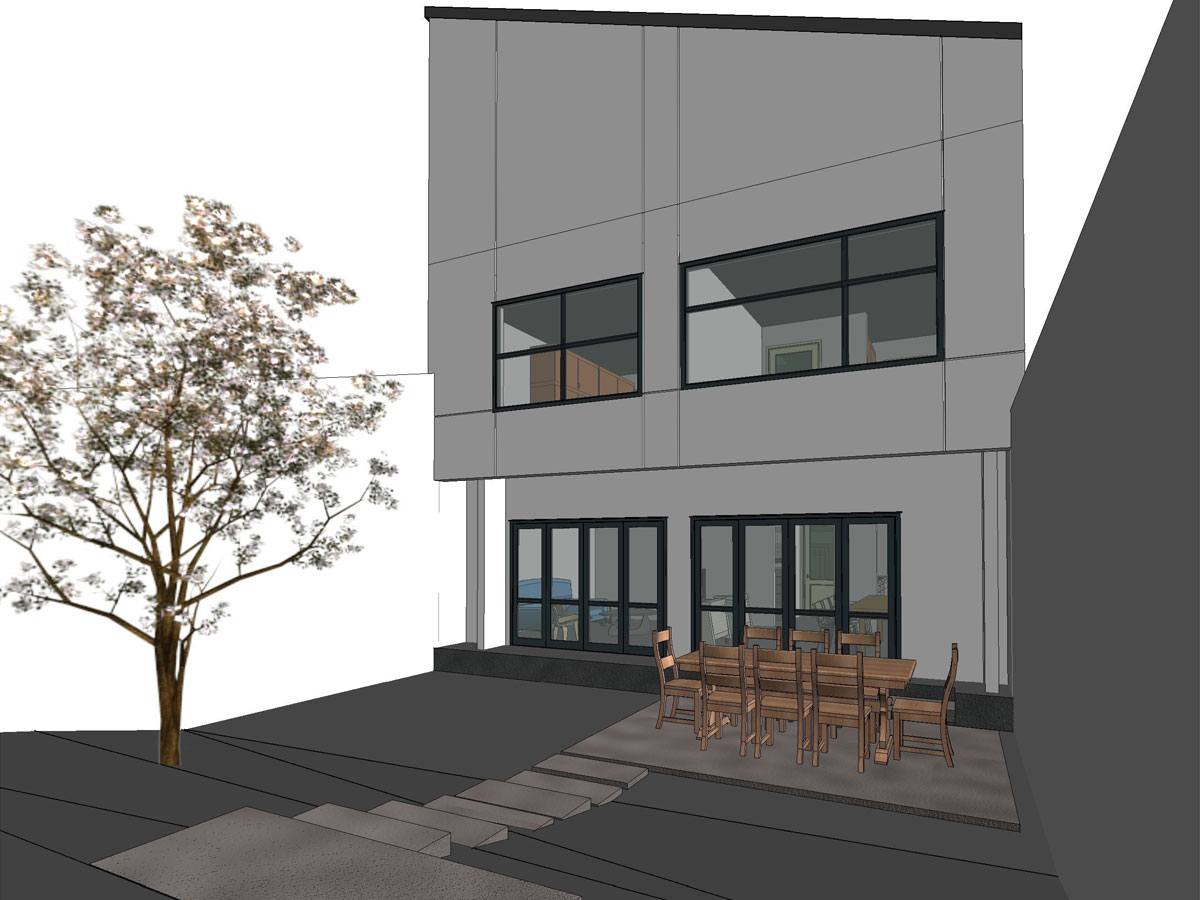

Due to the increasing requests for Revit content, we have been working alongside architects to develop detailed Revit families to help ease the design, detailing and modelling process. It gives the architects the opportunity to not only specify but also visualize projects with the Fairview windows and door products.

Features of the models include:

  • Nested details items
  • Ability to turn on and off items within the model
  • Over 32 of our standard powder coat colours and anodized finishes.
  • Optimized detail at the coarse, medium and fine levels.

Initial Fairview 3D Family product ranges available include:

Architectural Linear Series: Traditional NZ liner fixed joinery. AL35 & AL40

Architectural Cubic Series: Direct (concealed) fix joinery with multiple options for internal finishes. AC35 & AC40

We currently offer two types of models:

  • A Detailed 3D Solution – A complete 3D Model that has nested detail items to help with the detailing process.  (Larger file size)
  • A Simple 3D Solution – A Simple 3D Solution without the nested details. (Minimal file size)

As these models are prepared 'in house' by Fairview you have the confidence that profiles are sections are technically correct and current.

Our files have all the basics that you need, plus links to all other detail items you may require. If you get stuck you can access our architectural support team via the link in the properties bar under “identity data”. Our models carry all our company’s metadata so you can rest assured knowing any information you need, whether its specification information, galleries of our products, or even finding a fabricator it is just a click away.

“Autodesk” and “Revit” are registered trademarks or trademarks of Autodesk, Inc. and/or affiliates in the USA and/or other countries. All other brand names, product names or trademarks belong to their respective holders.
