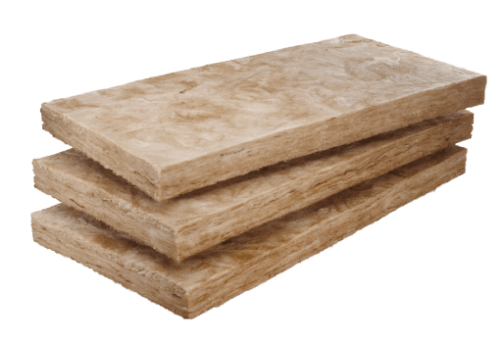

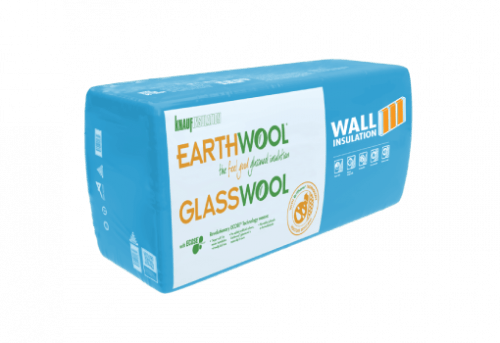

Earthwool® glasswool insulation: Wall batts
Product Description
The Earthwool® glasswool insulation: Wall batt range includes a selection of R-values and densities to provide builders, designers, installers the opportunity to choose the best thermal and acoustic performance for their project. Earthwool glasswool insulation: Wall batt will absorb the transfer of unwanted sound from outside to inside the building. In addition to sound absorption, Earthwool glasswool insulation: Wall batt will improve the thermal comfort and energy efficiency of the building in which it has been installed thus keeping it cool in summer and warm in winter.
The super-soft and easy to handle benefits of Earthwool glasswool have been further enhanced with TwinTech®. TwinTech heralds another advancement in insulation manufacture — the dual forming technique ensures there is a smooth finish on both sides of the insulation, which improves product handling and appearance. Earthwool glasswool is made using up to 80% recycled glass and with ECOSE® Technology, a sustainable, bio-based binder that contains no added formaldehyde.
Enhanced moisture resistance with DriTherm® Technology. Earthwool glasswool insulation is silicone treated, which provides moisture resistance for up to 50 years.
Benefits
- DriTherm® Technology - silicone treated glasswool for increased durability
- TwinTech® - smooth finish on both sides
- High thermal performance - year round comfort
- Sound absorbing
- Non-combustible
- Saves energy - lower energy bills
- No added formaldehyde
- Soft to handle and install
- 50 year warranty
- Compression packed - more product per pack
- Odourless
Earthwool® glasswool insulation: Wall Segments (45mm)
Material Code | Thickness (mm) | R-Value (m²K/W) | Length (mm) | Width (mm) | Area per pack (m²) | Pieces per pack |
---|---|---|---|---|---|---|
781975 | 45 | 1.3 | 1160 | 450 | 12.5 | 24 |
Earthwool® glasswool insulation: Wall Segments (90mm Frame)
Material Code | Thickness (mm) | R-Value (m²K/W) | Length (mm) | Width (mm) | Area per pack (m²) | Pieces per pack |
---|---|---|---|---|---|---|
686647 | 90 | 2.8 SHD | 1160 | 580 | 6.7 | 10 |
683646 | 90 | 2.8 SHD | 1160 | 430 | 5.0 | 10 |
686656 | 90 | 2.6 HD | 1160 | 580 | 9.4 | 14 |
683655 | 90 | 2.6 HD | 1160 | 430 | 7.0 | 14 |
683645 | 90 | 2.4 | 1160 | 580 | 13.5 | 20 |
683644 | 90 | 2.2 | 1160 | 580 | 19.5 | 29 |
HD = High Density, SHD = Super High Density
Earthwool® glasswool insulation: Wall Segments (140mm Frame)
Material Code | Thickness (mm) | R-Value (m²K/W) | Length (mm) | Width (mm) | Area per pack (m²) | Pieces per pack |
---|---|---|---|---|---|---|
779911 | 140 | 4.4 SHD | 1160 | 580 | 4.0 | 6 |
691267 | 140 | 4.1 SHD | 1160 | 580 | 6.1 | 9 |
683648 | 140 | 3.2 | 1160 | 580 | 14.8 | 22 |
HD = High Density, SHD = Super High Density
