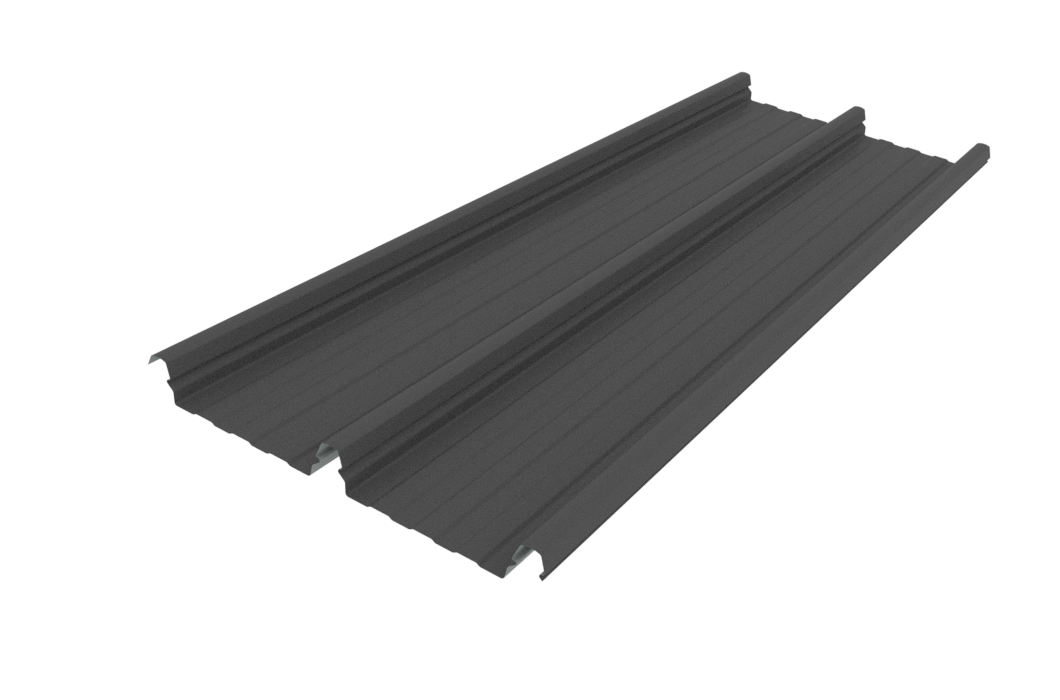

Dimondek 630

Product Description

Dimondek 630 is a revolutionary concealed fixed profile that can be manufactured on site in lengths up to 100 metres. This allows freedom of design not previously possible, such as gutter to gutter sheets in a continuous draped curve. Plus with no breaks and no screw holes through the roof, leaks are eliminated and the roof lasts longer.

Dimondek 630’s special rib design makes it so strong that not only can it span large buildings in a single sheet, it also allows wide purlin spacings previously restricted to pierced fixed trapezoidal roofing profiles. This makes Dimondek 630 the most economical concealed fixed roofing profile on the market for large commercial jobs.

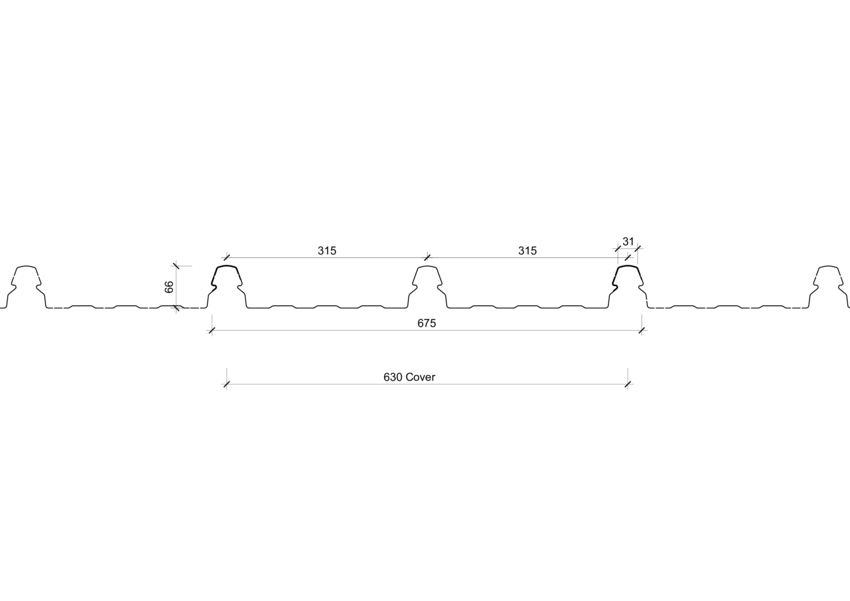

Cover: 630mm
Sheet Width: 675mm
Minimum Pitch 3° (approx 1:20)
