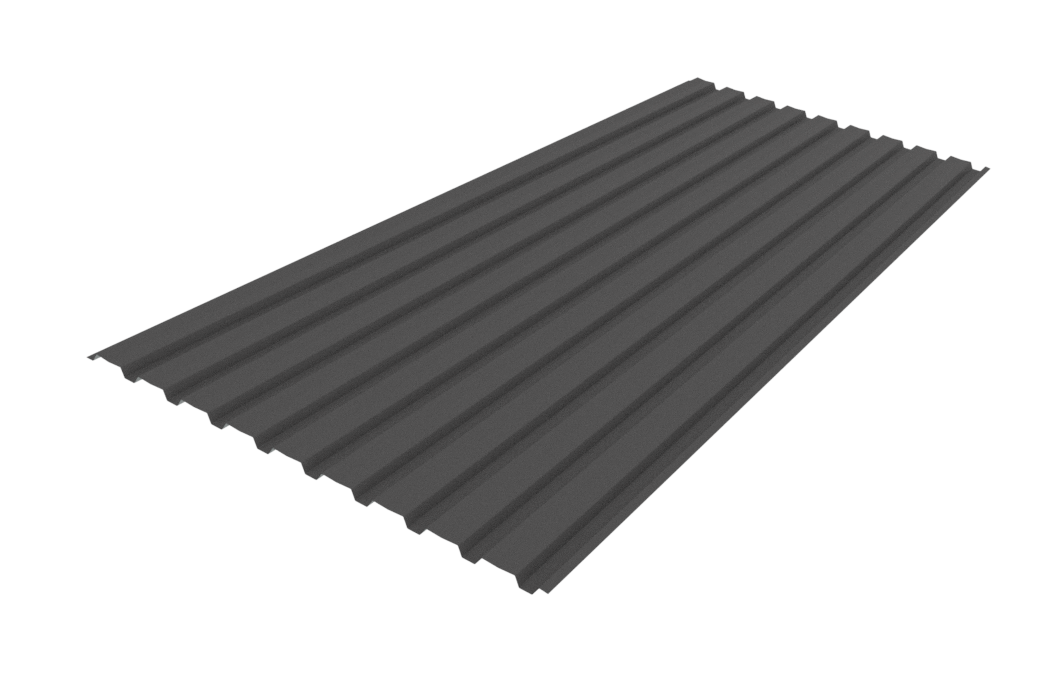

Dimondclad Rib50 Cladding

Product Description

Dimondclad Rib50 is the perfect cladding solution. Dimondclad's clean, efficient lines and well concealed laps are excellent for both exterior and interior cladding.

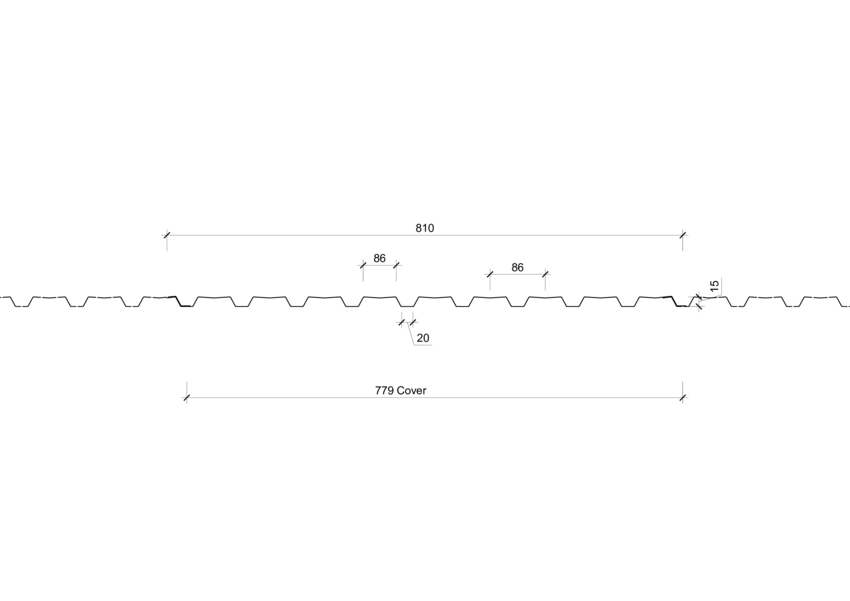

Cover: 779mm
Sheet Width: 810mm

System Design:
The span capacity of Dimondclad Rib 50 is determined by the serviceability requirement for acceptable appearance and should not exceed 1400mm.

The ultimate windload should not exceed 3 kPa.
