Axon™ Panel

Product Description

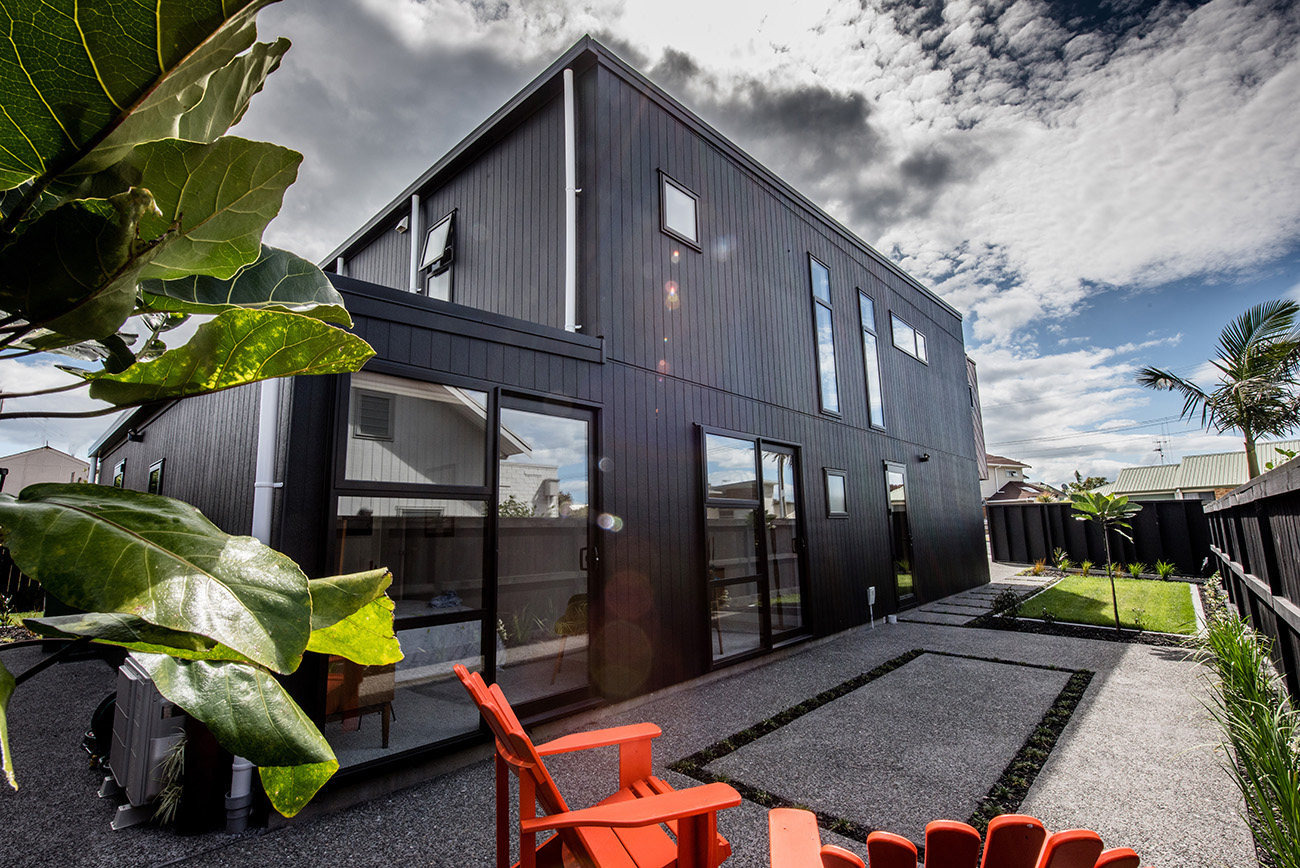

Creating a strong visual impact for your design is easier than ever with Axon™ Panel.  Easy to install, robust and versatile, Axon™ Panel is a vertical shiplap panel available in five finishes.  The textures and grooves complement classic and modern building designs to create stand out facades and bring interest to outdoor rooms.

Grooved Collection

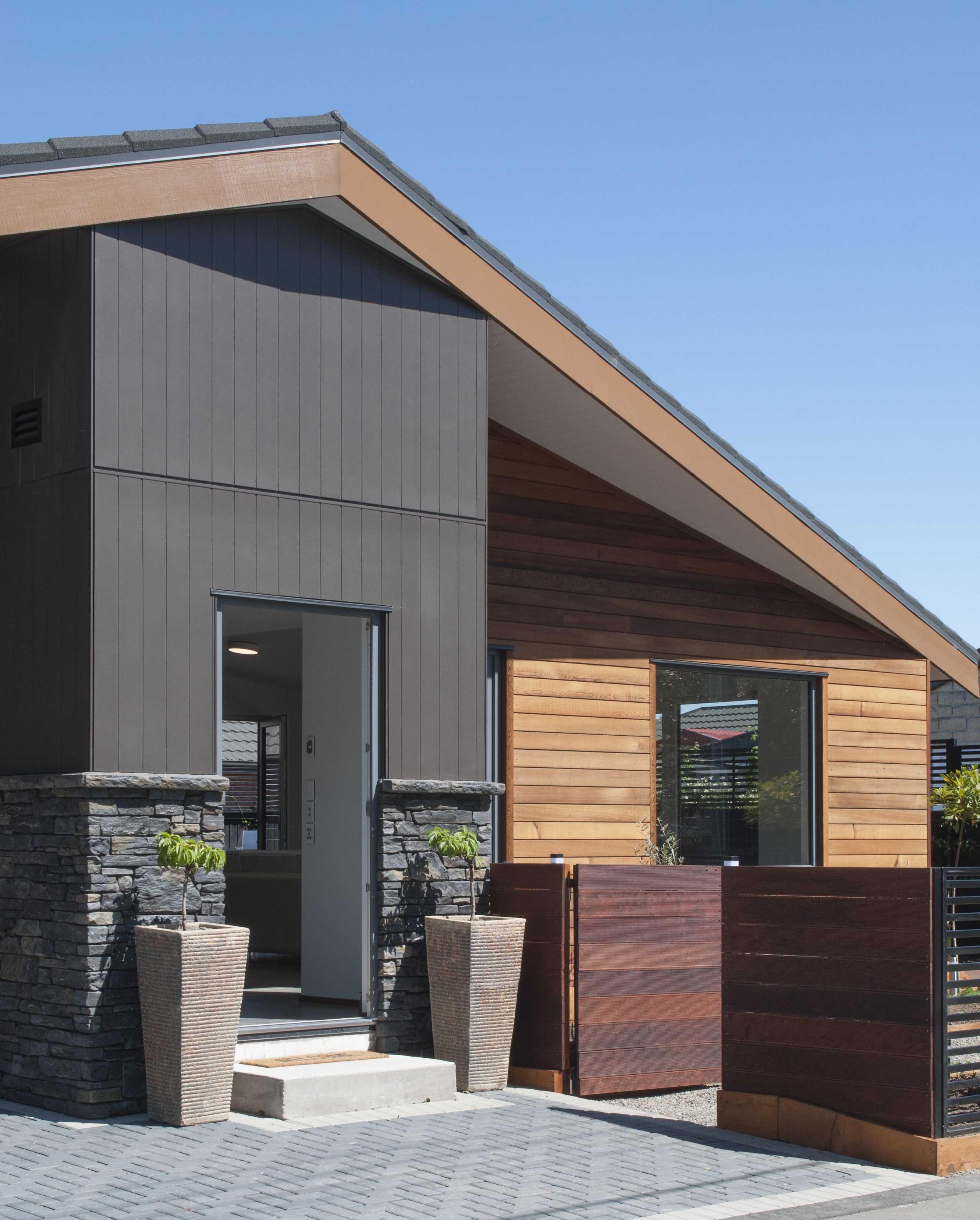

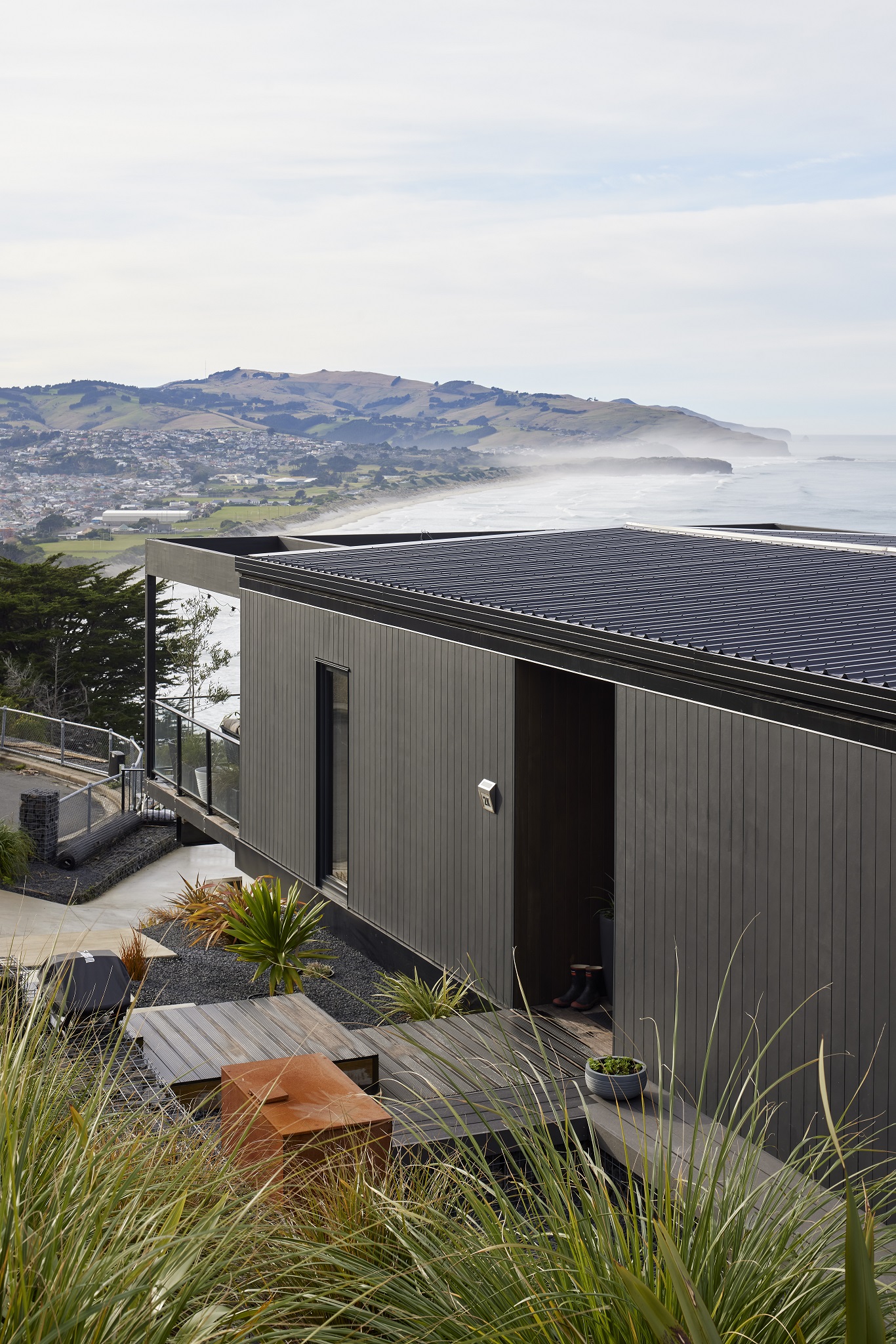

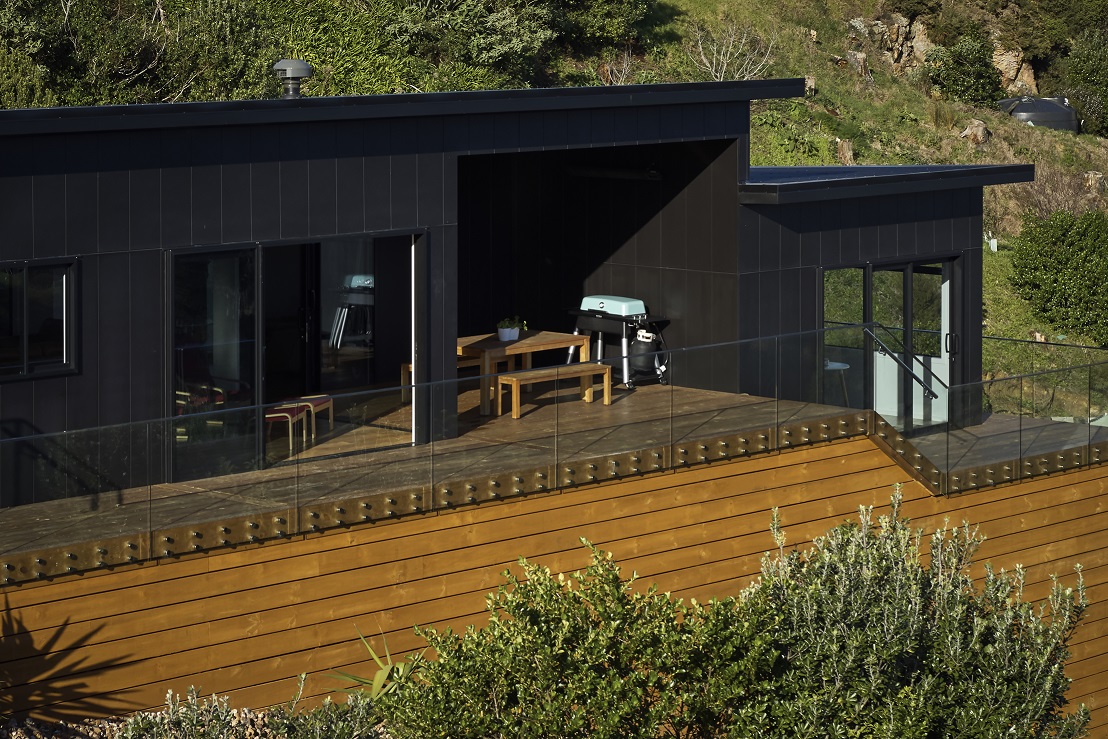

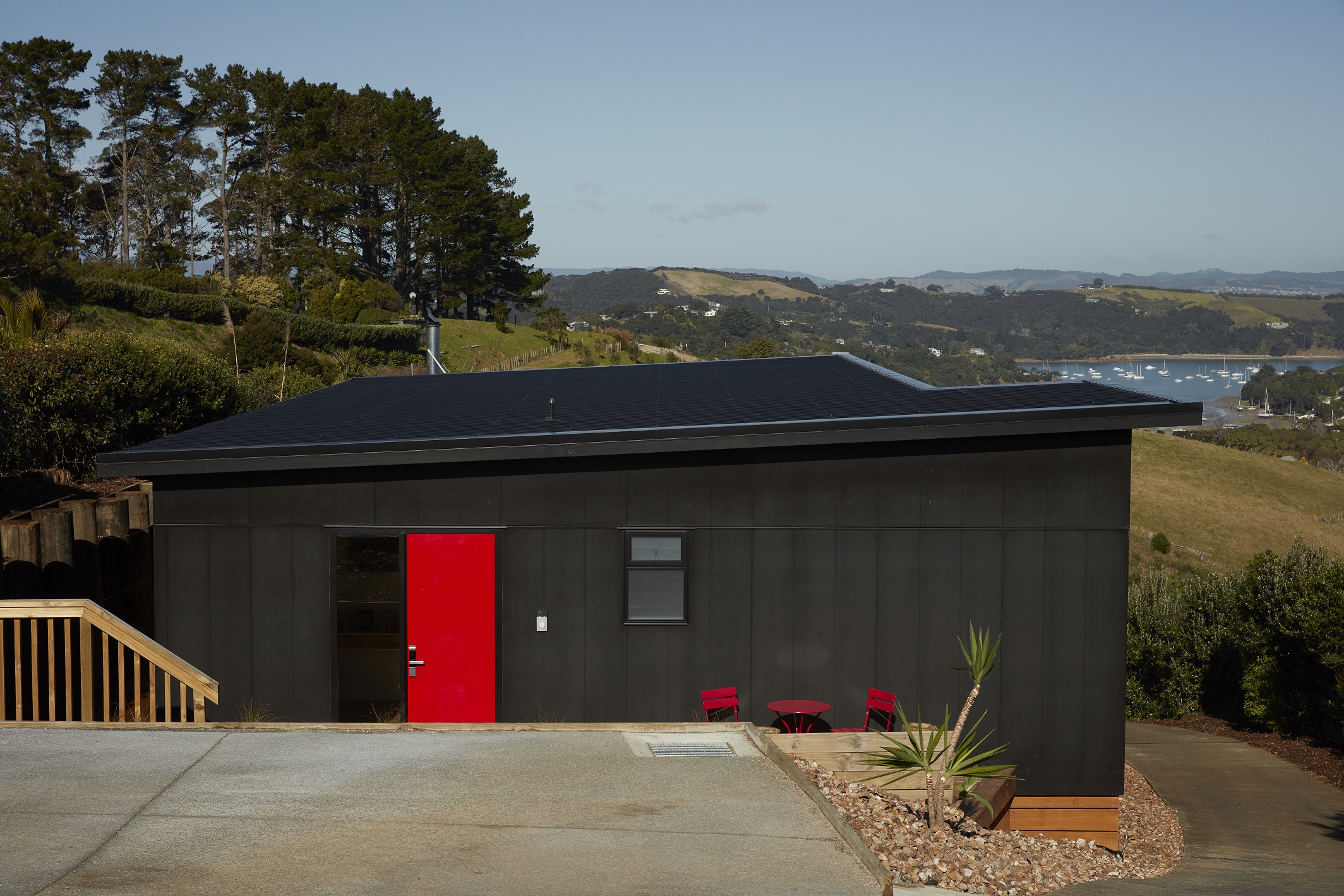

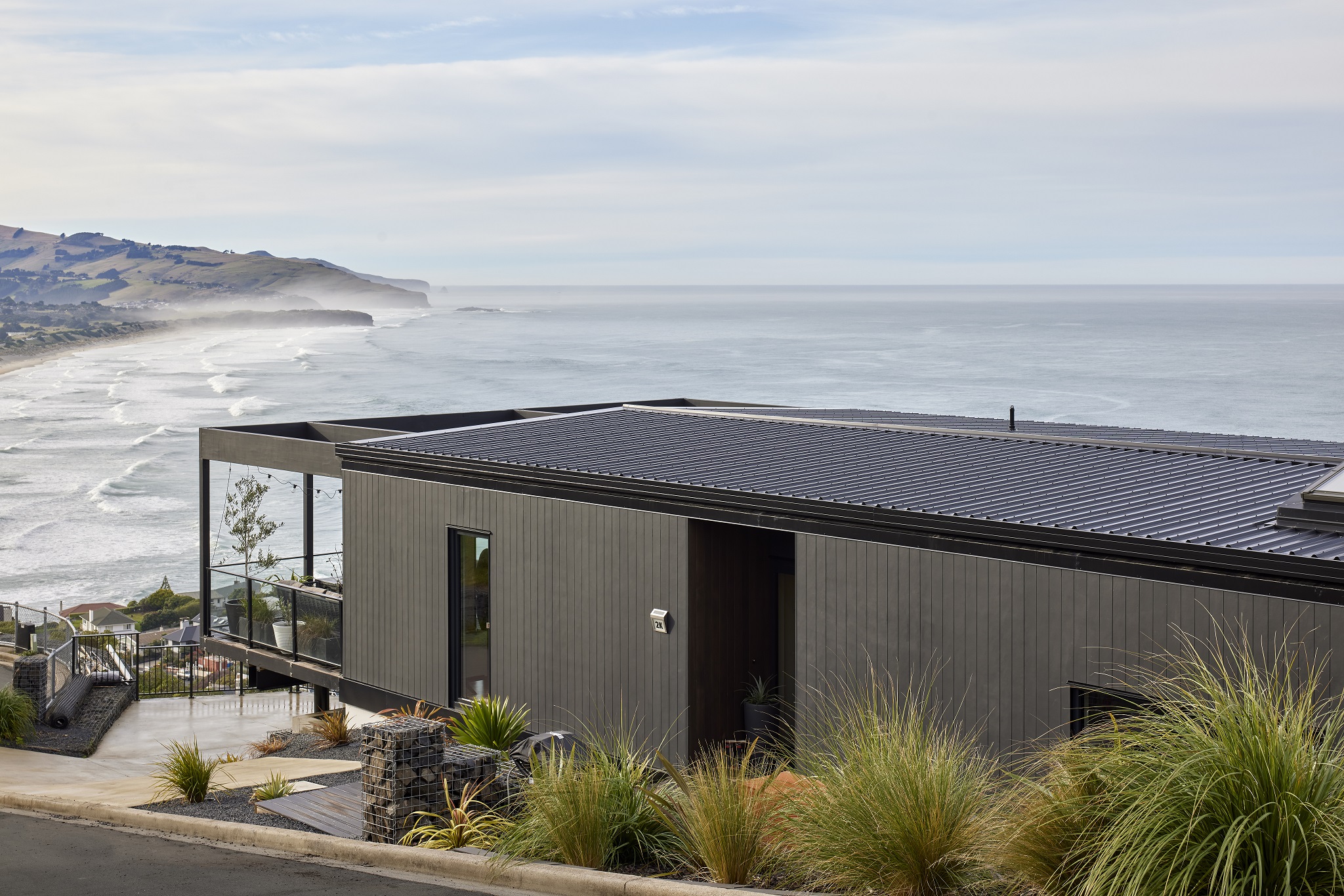

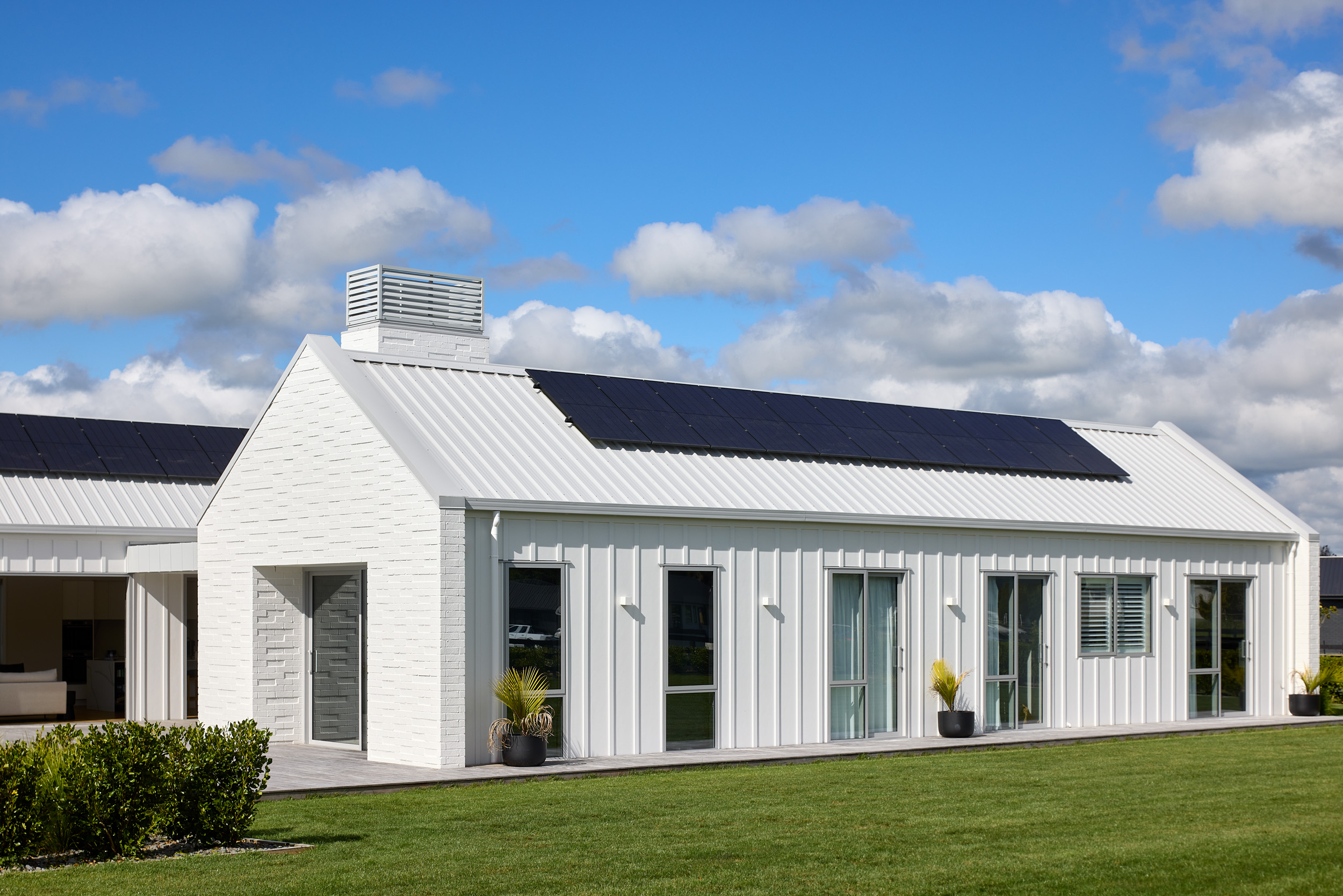

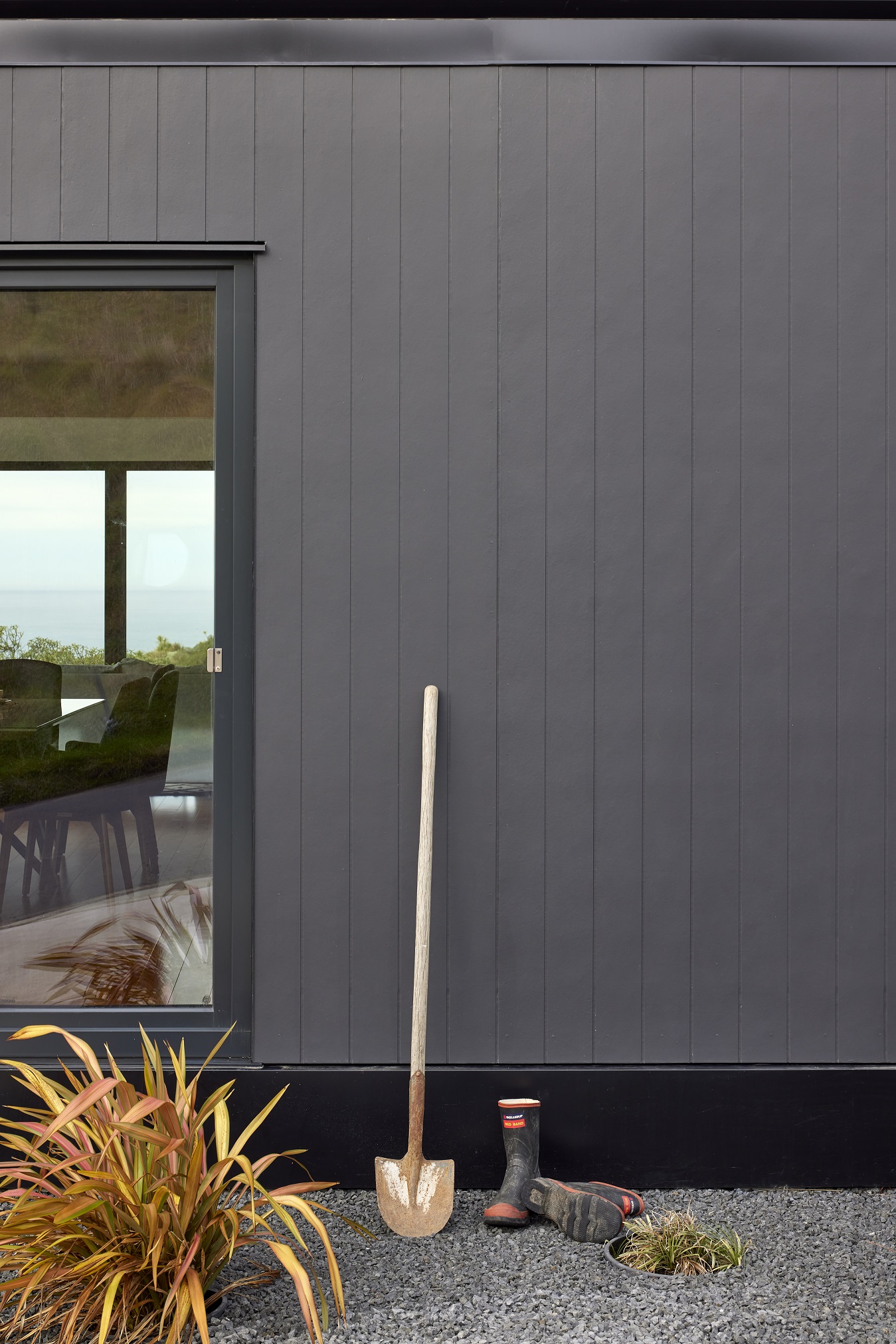

The vertically grooved panels are available with a 133mm or 400mm wide groove pattern that looks sharp and uniform. The grooves on the face of the panel are nominal 10mm wide.

Grooved 133mm and 400mm:

  • Thickness: 9mm
  • Length: 2450mm, 2750mm or 3000mm.  Grooved 133mm is also available in a 3600mm length.
  • Width: 1200mm

Grooved Grained 133mm:

  • Thickness: 9mm
  • Length: 3000mm
  • Width: 1200mm

Textured Collection

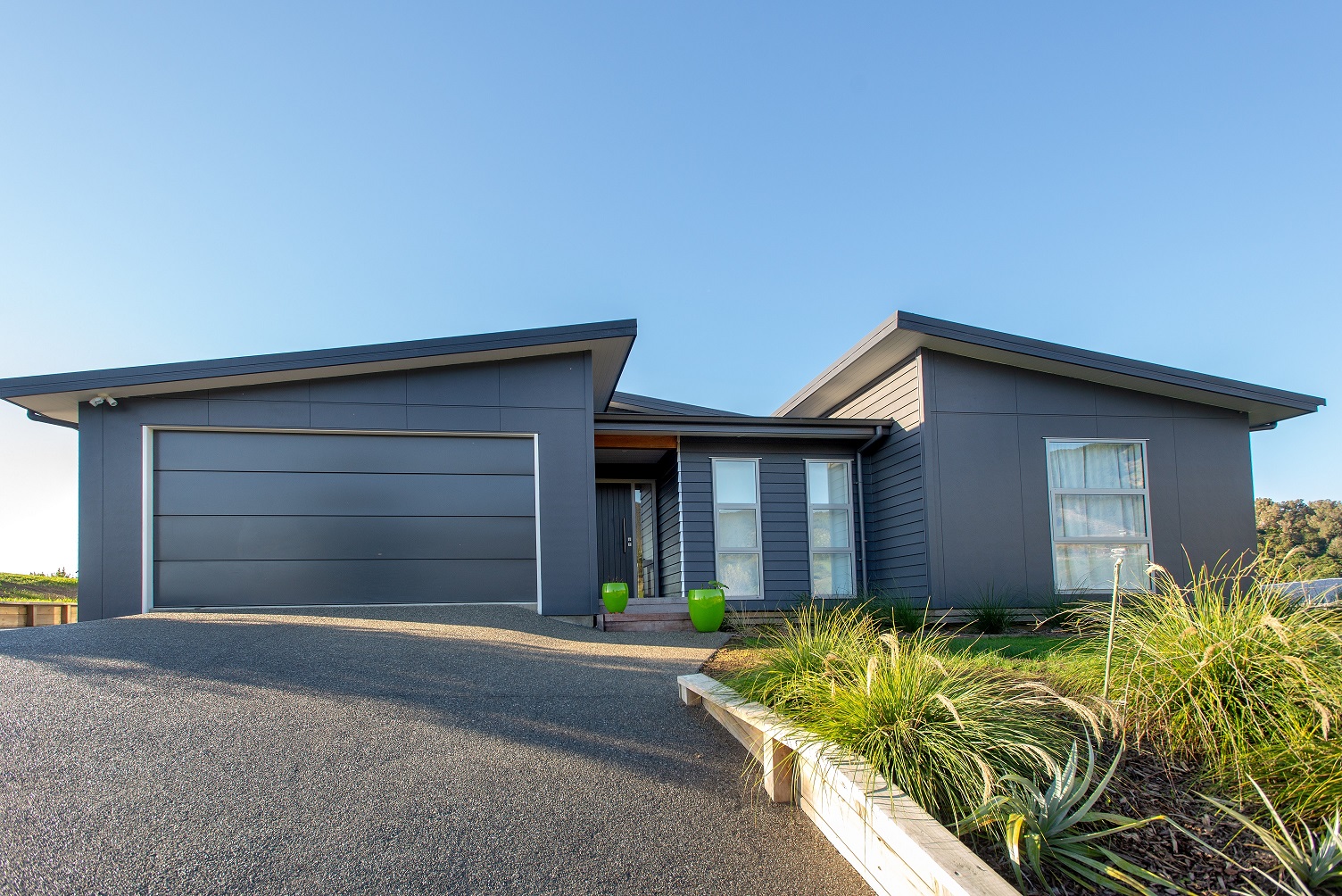

Use Axon™ Panel Textured to wrap an entire house for a clean panelised design or mix it up with other wall materials and colours to get a distinctive, modern look.

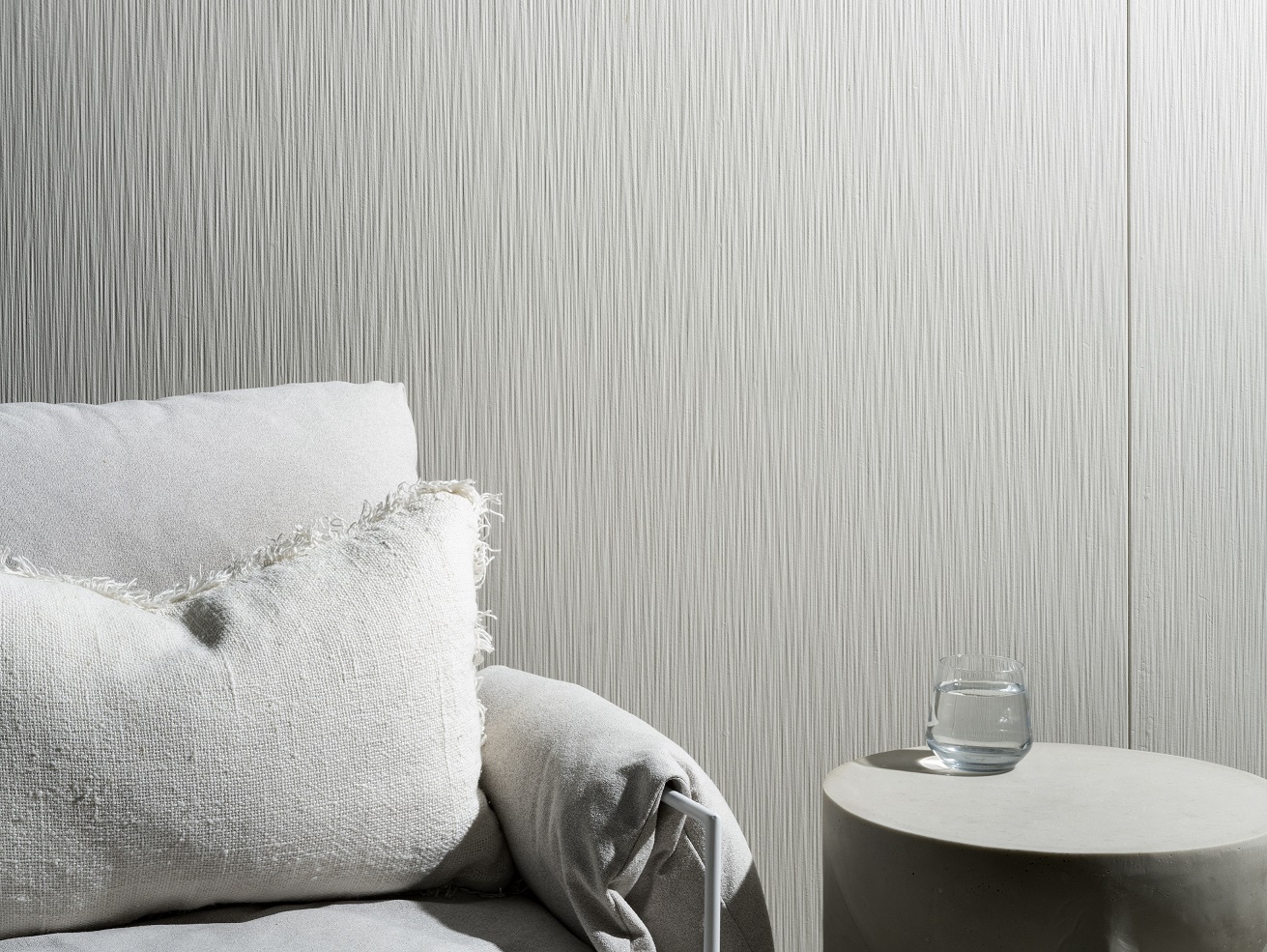

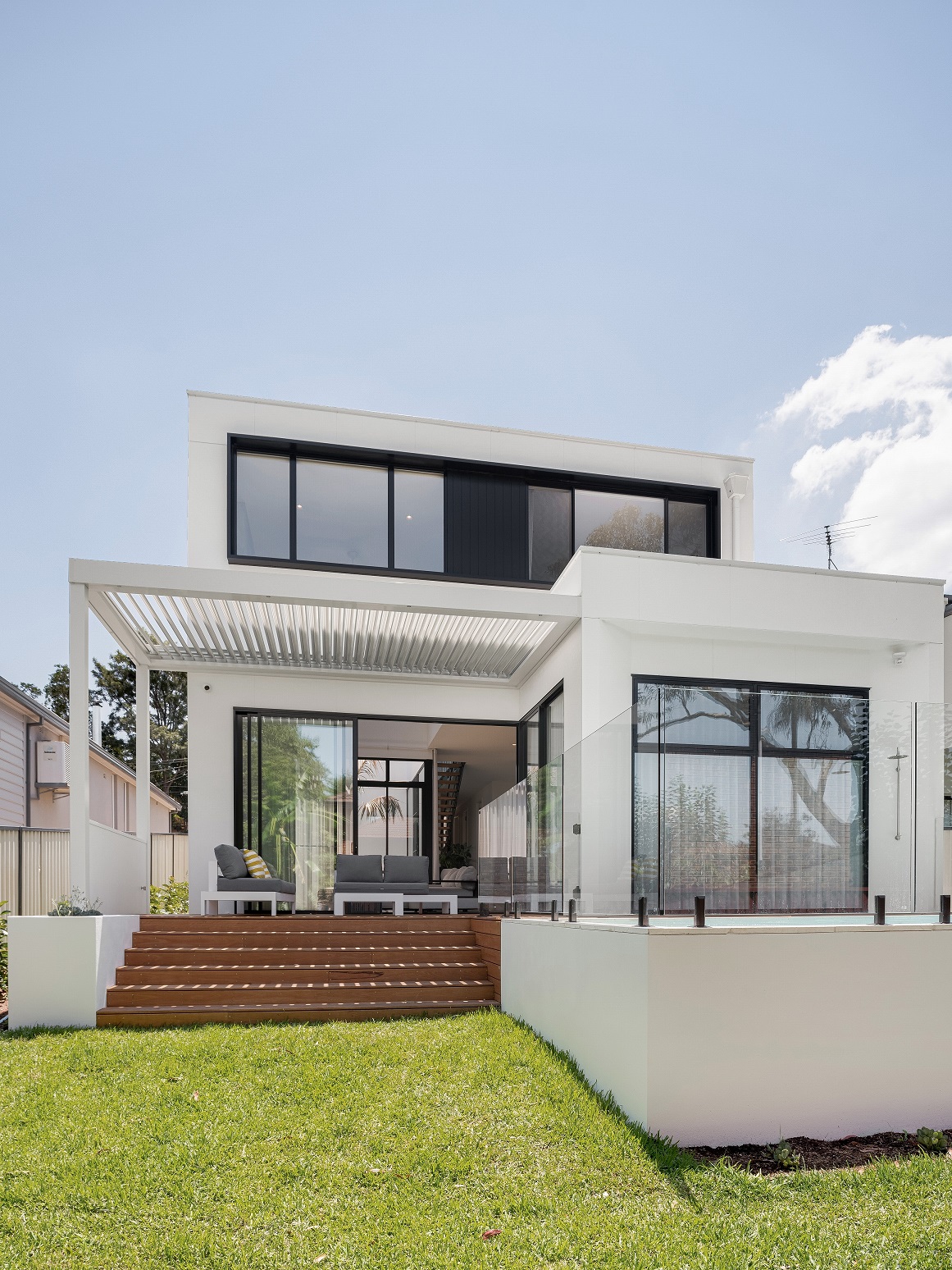

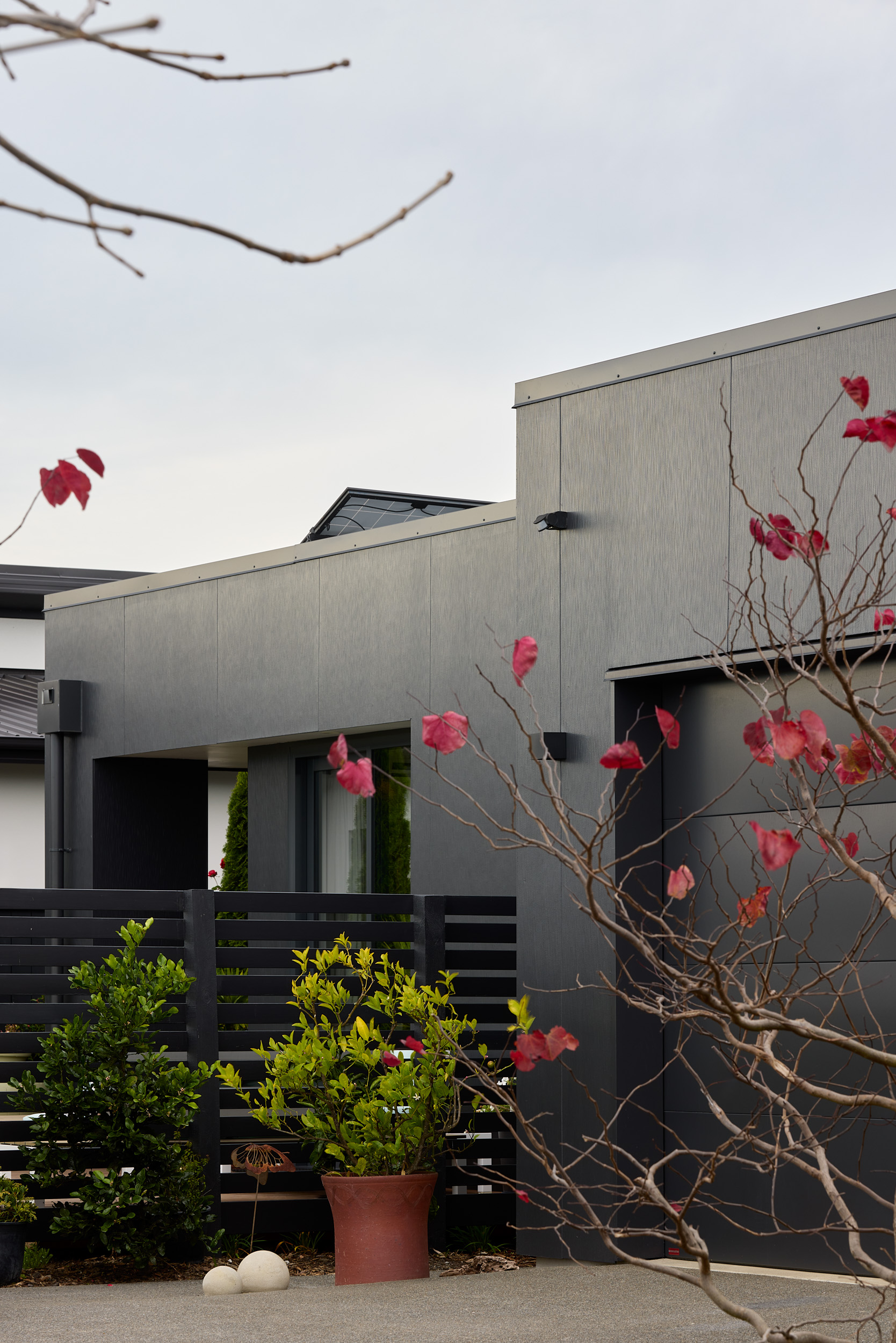

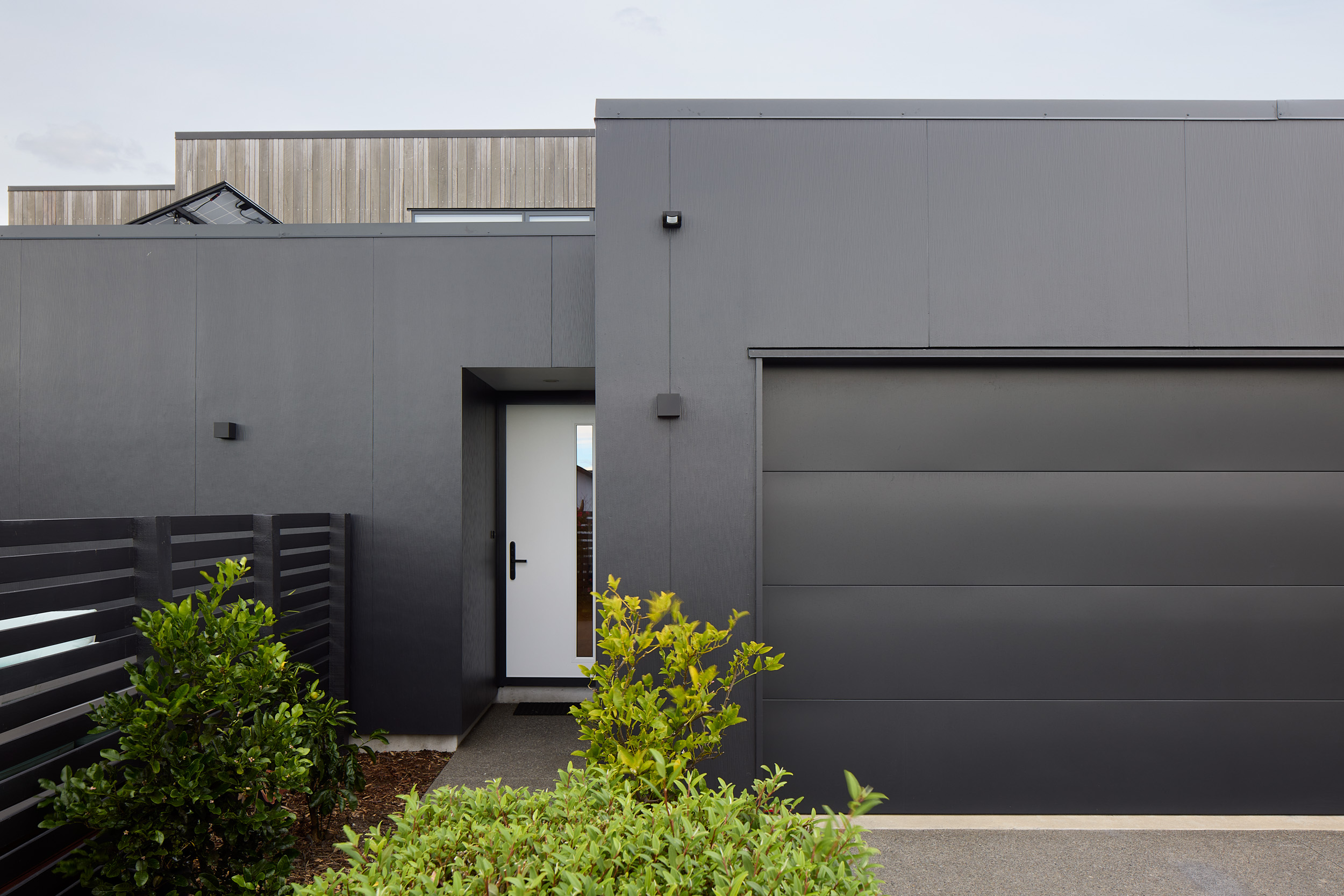

Brushed Concrete is inspired by the craftsmanship of softly brushed concrete and transforms with light and proximity. The embedded swept texture of these panels give designs a finish that’s visually sophisticated, and dynamic to the touch.

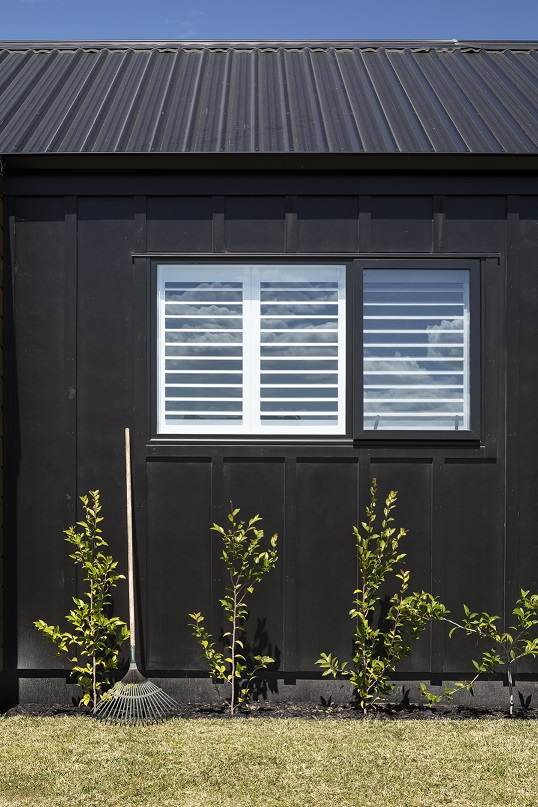

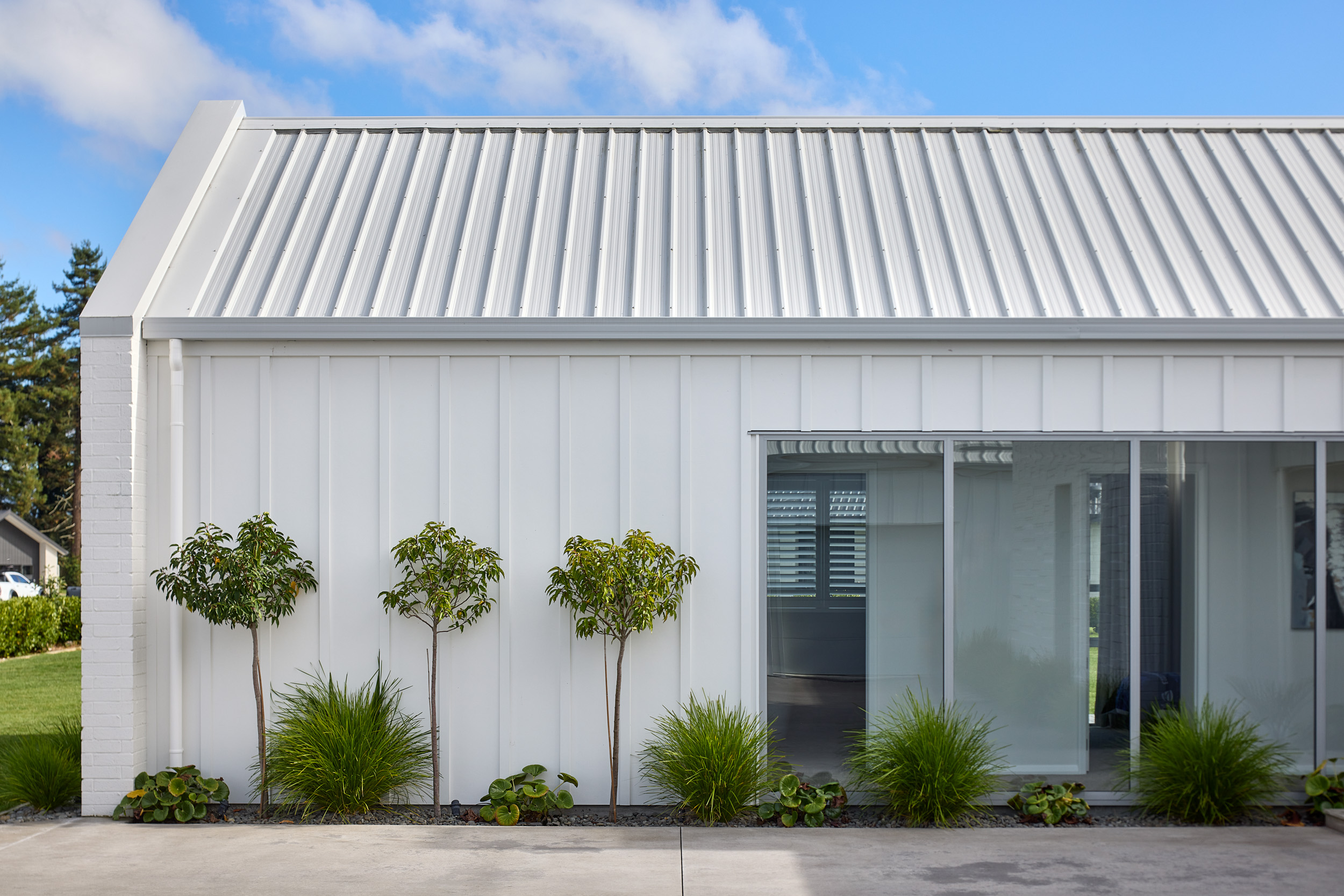

Our smooth panel can be finished with a site applied roll on textured acrylic paint for that rendered look, or you can paint it smooth. It also makes the perfect surface for board and batten applications when used in conjunction with Hardie™ Axent™ Trim.

NEW Brushed Concrete:

  • Thickness: 8.5mm
  • Length: 2440mm, 2750mm, 3000mm or 3600mm
  • Width: 1200mm

Smooth (previously known as EasyLap Panel):

  • Thickness: 9mm
  • Length: 2450mm or 3000mm
  • Width: 1200mm

Width: 1200mm


  • Engineered to stand up to harsh conditions, including coastal conditions
  • Can be painted any colour, even the darker shades
  • Cost effective and long-lasting
  • Resistant to fire, rot resistant and resistant to moisture damage
  • Up to 60 minute fire resistance rating (FRR) can be achieved when installed as per the James Hardie Fire and Acoustic Design Manual
  • Classified as a lightweight cladding
  • Classified as non-combustible material
  • Low maintenance
  • Easy installation makes Axon Panel a fast and effective way to cover your home’s exterior
  • GreenTag Certified
  • BRANZ Appraised
  • CodeMark Certified
  • 15 year product warranty
