Product Description

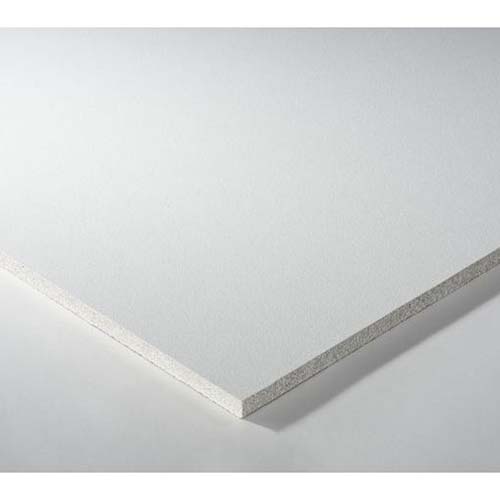

AMF THERMATEX Acoustic is a 19 mm thick suspended ceiling tile made from a specially perforated mineral board and an acoustic fleece facing. The perforations provide excellent sound absorption while the fleece offers a smooth, elegant surface finish. The combination of high density, bio-soluble mineral wool with clay and starch provides excellent physical characteristics, particularly for acoustic performance. Our AMF Acoustic Range carries the Declare label.

- Exposed Grid System, demountable ceiling
- Free span system, with exposed or concealed suspension
- Bandraster system, with exposed or concealed suspension

600 x 600 mm, 1200 x 300 mm, 1200 x 600mm

Thickness / Weight
19 mm (c. 4.6 kg/m²)

White similar to RAL 9010

Edge details
SK, VT 15/24 on request, AW, GN

Sound absorption
αw = 0.65H as per EN ISO 11654  |  NRC = 0.70 as per ASTM C 423-01

Sound attenuation
- Dn,c,w = 38 dB as per EN 20140-9 (19 mm thickness)
- Dn,c,w = 40 dB as per EN 20140-9 (semi-concealed planks)

Fire Resistance
F30 – F120 as per DIN 4102 part 2 (as per test certificate)
REI30 – REI120 per EN 13501 part 2 (as per test certificate)

Light reflectance
up to 85%

Thermal conductivity
λ = 0.052 – 0.057 W/mK as per DIN 52612

up to 95 % RH

Clean Room
Class 3 as per ISO 14644-1

Interior Air
Indoor air comfort GOLD status
