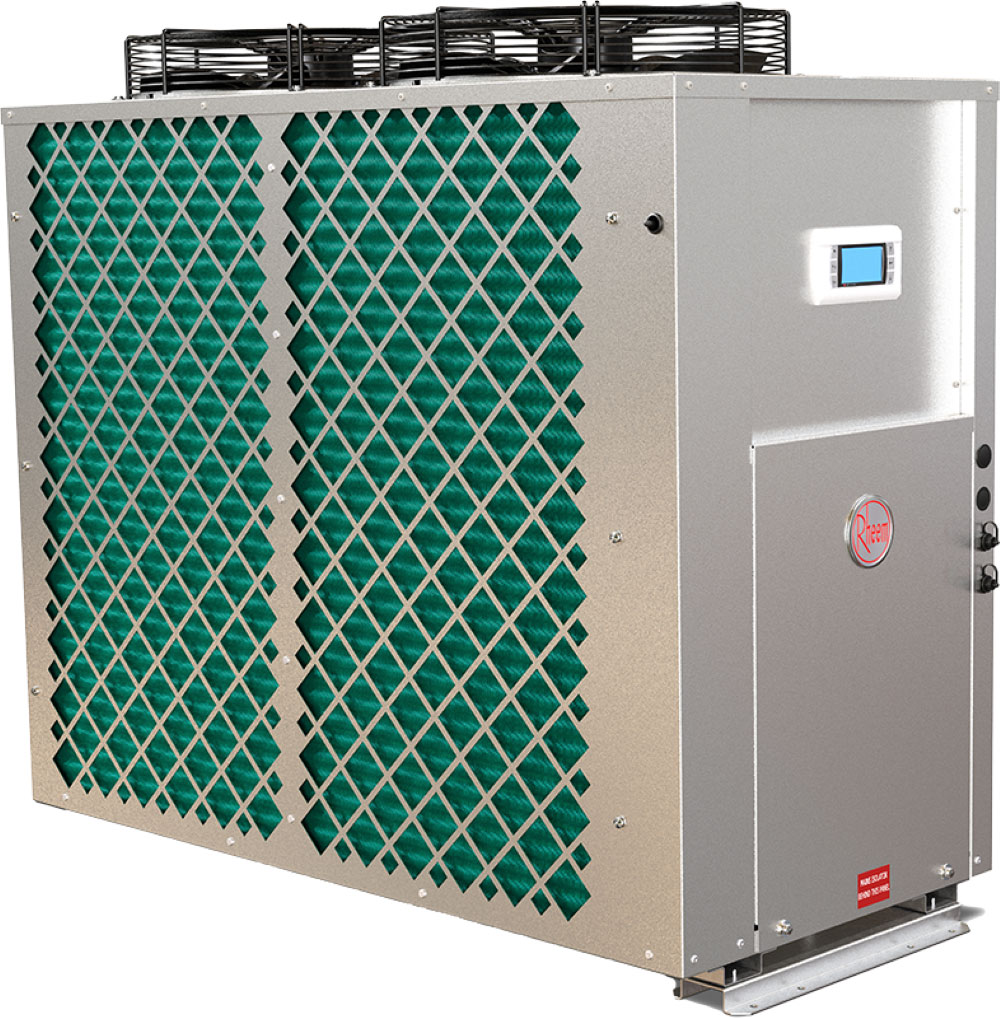

YF Series Air to Water Commercial Heat Pump

Rheem YF Series Commercial Air to Water heat pumps employ R1234yf refrigerant which has an ultra-low global warming potential (GWP) rating of <1, combined with an improved co-efficient of performance (COP), making it the prime choice where ESD requirements are paramount.

Detailed engineering has tuned the average COP of the A2W models up to 4.28 for the 30kW model and 4.23 for the 15kW model. Further product enhancement allows the heat pump to operate in ambient conditions to a low of 0°C, reducing the reliance on auxiliary heating methods, thereby improving overall annual efficiency.

A2W models are designed with both vertical and horizontal discharge options, with fan options available in ducted and non-ducted versions.

• Marine grade aluminium cabinet that won't rust
• Evaporator coils fully dipped with Rheemkote®, meaning 10,000hr neutral salt spray test for superior corrosion protection
• Auxiliary boost interlock – when activated, only operates in extreme low ambient conditions or when >50% of the heat pumps are in fault, enabling a surety of hot water supply
• Fully certified including Electrical Safety, EMC and Water Mark

Available in the following model configurations:

• 95201500/Vertical Discharge/Not Stackable/Ducted Exhaust/Stainless Steel Plate
• 9520150V/Vertical Discharge/Not Stackable/Ducted Exhaust/Copper Tube
• 952015H0/Horizontal Discharge/2-High Stackable/Ducted Exhaust/Stainless Steel Plate
• 952015HV/Horizontal Discharge/2-High Stackable/Ducted Exhaust/Copper Tube
• 95301500/Vertical Discharge/Not Stackable/Non-Ducted Exhaust/Stainless Steel Plate
• 9530150V/Vertical Discharge/Not Stackable/Non-Ducted Exhaust/Copper Tube
• 953015H0/Horizontal Discharge/2-High Stackable/Non-Ducted Exhaust/Stainless Steel Plate
• 953015HV/Horizontal Discharge/2-High Stackable/Non-Ducted Exhaust/Copper Tube
• 95203000/Vertical Discharge/Not Stackable/Ducted Exhaust/Stainless Steel Plate
• 9520300V/Vertical Discharge/Not Stackable/Ducted Exhaust/Copper Tube
• 952030H0/Horizontal Discharge/2-High Stackable/Ducted Exhaust/Stainless Steel Plate
• 952030HV/Horizontal Discharge/2-High Stackable/Ducted Exhaust/Copper Tube
• 95303000/Vertical Discharge/Not Stackable/Non-Ducted Exhaust/Stainless Steel Plate
• 9530300V/Vertical Discharge/Not Stackable/Non-Ducted Exhaust/Copper Tube
• 953030H0/Horizontal Discharge/2-High Stackable/Non-Ducted Exhaust/Stainless Steel Plate
• 953030HV/Horizontal Discharge/2-High Stackable/Non-Ducted Exhaust/Copper Tube
