Price Holyoake Semi Rigid Flexible Ducting - SPIROSET
Product Description

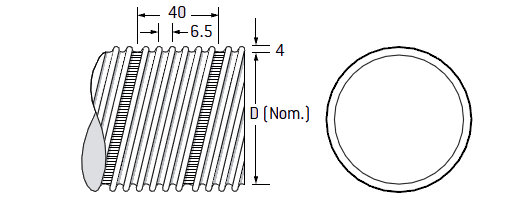

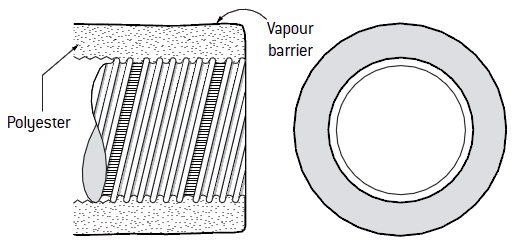

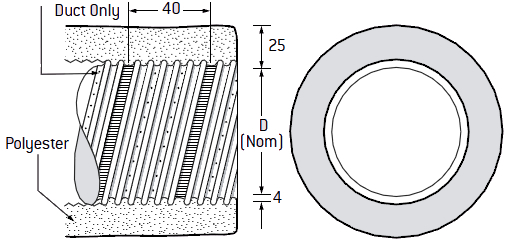

SPIROSET is a light weight air duct, machine formed in a continuous spiral from aluminium strip coil stock, corrugated and seamed with a four ply lock seam, creating an airtight tube which can be easily cut to length and bent by hand to conform to a desired duct route, with-out altering its full circular cross section. It is a characteristic of Spiroset that it will retain whatever configuration is required and is self supporting over its normal maximum length of 3 metres. Spiroset is available plain (without insulation), thermally insulated or acoustic (perforated) insulated.
Technical Files
CAD Files
-
holyoake_ducting_spiroset_sai25fp.rvt
-
holyoake_ducting_spiroset_spi25fp.rvt
-
holyoake_ducting_spiroset_spu.rvt
-
holyoake_ducting_spiroset_sai25fp.dwg
-
holyoake_ducting_spiroset_sai25fp_3d.dwg
-
holyoake_ducting_spiroset_spi25fp.dwg
-
holyoake_ducting_spiroset_spi25fp_3d.dwg
-
holyoake_ducting_spiroset_spu.dwg
-
holyoake_ducting_spiroset_spu_3d.dwg
