Product Description

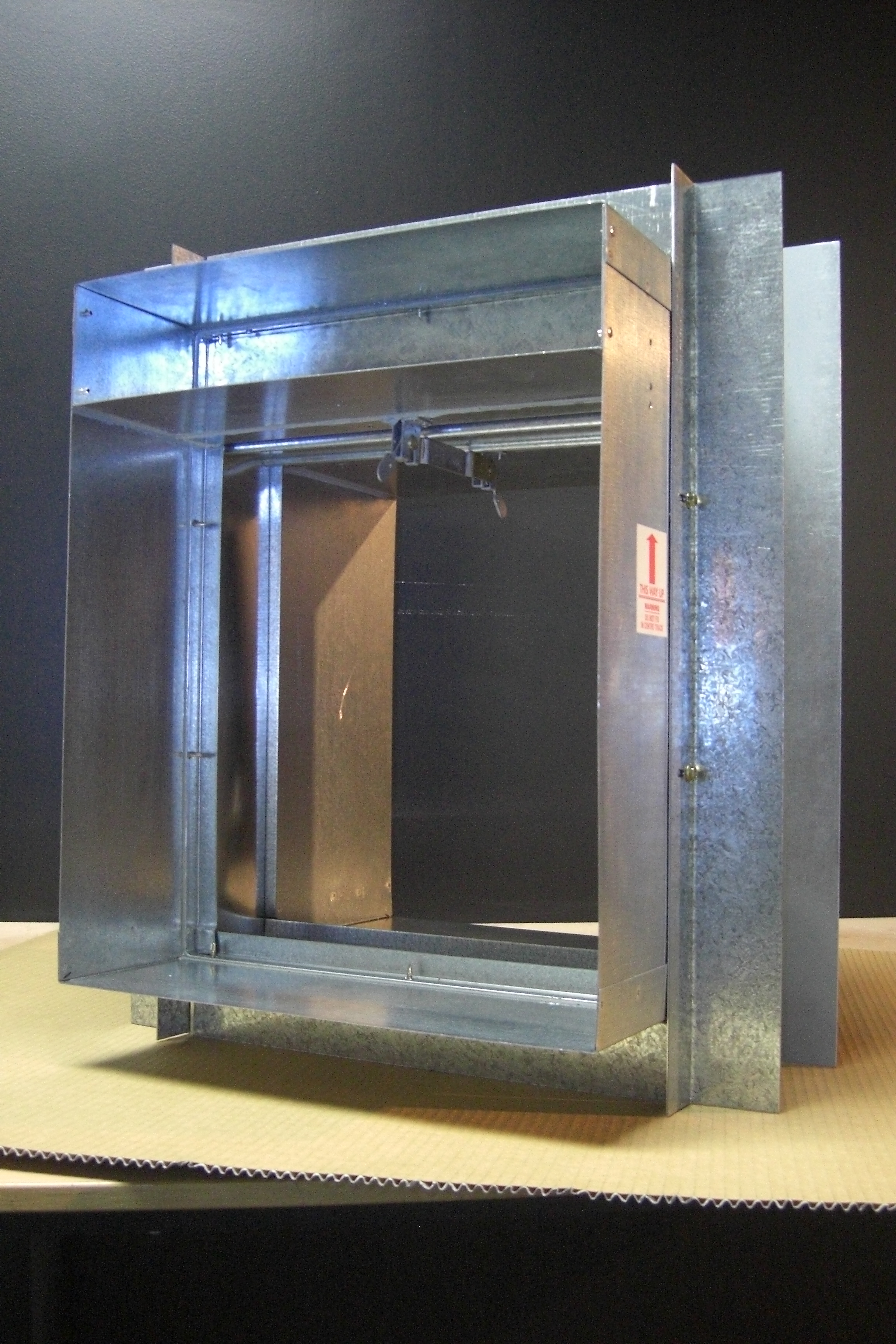

Price Holyoake IBD-FS 'Fire Seal' Curtain-type fire and leakage rated dampers are designed to maintain the integrity of the fire resistance of a wall, in which a whole has been formed to permit the passage of air, ducted or otherwise, to enable an air air distribution system to function; whilst minimizing the impedance of fire and/or smoke and other toxic gasses.
The arrangement of interlocking galvanized steel blades and stainless steel side seals, mounted in a galvanised steel guide channel frame, minimizes space requirements and facilitates ease of installation in in ductwork.
The IBD-FS fire and leakage rated damper has been tested in accordance with AS 1530.4 - 2014 and comfortably passed the leakage integrity rates of 11.6.2.1, which are based on the European ISO Standard 10294-1 'E' Classification.
All Price Holyoake Series IBD-FS units carry up to a 4 HOUR rating, as determined by the following testing Authorities.
Fire Rating:
Tested in accordance with Standard AS 1530.4 - 2014, integrity was maintained for in excess of 4 hours. For the purposes of the Australian and New Zealand Building Code they have a F.R.L./F.R.R. of -/240/-.
Models:
- IBDFS-A-H: Interlocking blade, horizontal mounting fire damper, spring loaded for complete travel, blade stack located within air stream.
- IBDFS-A-V: Interlocking blade, vertical mounting damper, gravity operated, spring loaded initial movement, blade stack located within air stream.
- IBDFS-B-H: Interlocking blade, horizontal mounting fire damper, spring loaded for complete travel, blade stack located out of air stream.
- IBDFS-B-V: Interlocking blade, vertical mounting damper, gravity operated, spring loaded initial movement, blade stack located out of air stream.
- IBDFS-CR-H: Interlocking blade, horizontal mounting fire damper, spring loaded for complete travel, fitted with enclosed plates and round spigots to suit duct connections.
- IBDFS-CR-V: Interlocking blade, vertical mounting damper, gravity operated, spring loaded initial movement, fitted with enclosed plates and round spigots to suit duct connections.
