Name: Multirib® Roofing and Cladding System
Brand: Roofing Industries Ltd

Back

Product Description

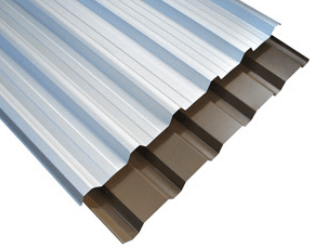

Multirib® is a medium height, long-run roofing and cladding profile designed primarily for industrial and commercial applications. Multirib® is also suited for roofing applications on low pitch residential projects.

Multirib® provides numerous benefits for the building designer including clean lines and innovative design features offering superior strength and spanning capability over similar profiles.

Key Features

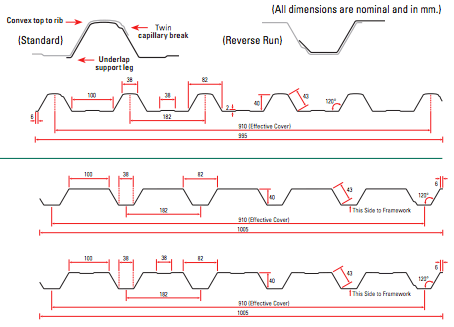

Convex ribs provide strength and water run-off away from the fixings
Twin capillary breaks on the lap
Purpose designed leg provides support to the underlap
Steeply angled ribs provide superior strength and aesthetics
Installers feet fit neatly in the pan thereby avoiding damage to the ribs

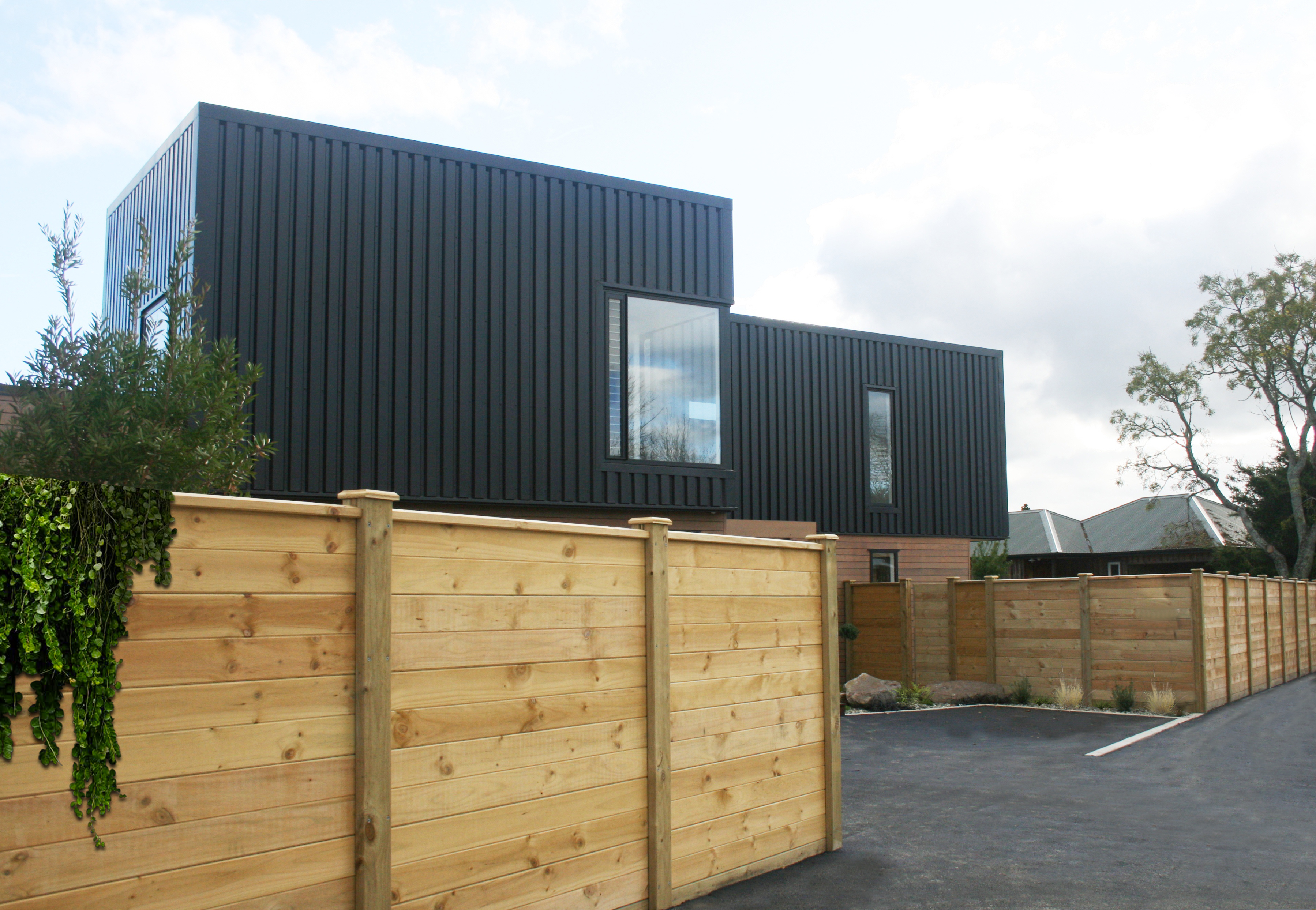

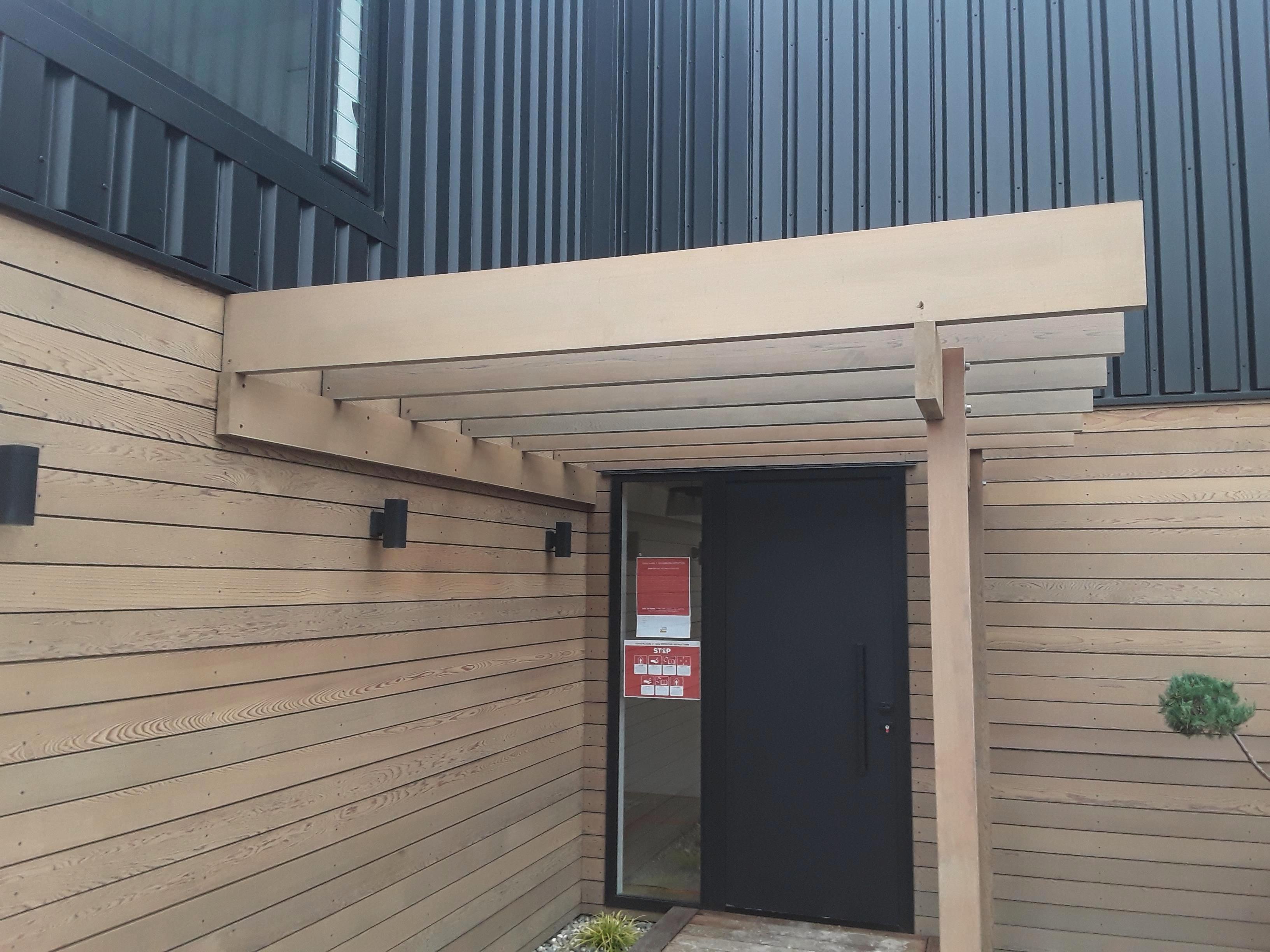

Can be “reverse run” and the swage removed for use as a wall cladding
Lap can be altered in the reverse run process to ensure improved aesthetics and water tightness
Narrow barge flashing detail over wider pan profiles thereby reducing wind uplift damage
Fully tested and proven Multirib fastening patterns provide superior wind loading over other commercial profiles
Excellent water carrying capacity
Equally impressive for both roofing and cladding applications
Superior spanning at a 3-degree low roof pitch
Supported by wind and concentrated load span design graphs derived from extensive industry test rig trials
Miltirib® is also available in glass reinforced translucent roofing
A full range of matching accessories is available including ridging, flashings, underlays, fasteners and rainwater systems

Applications

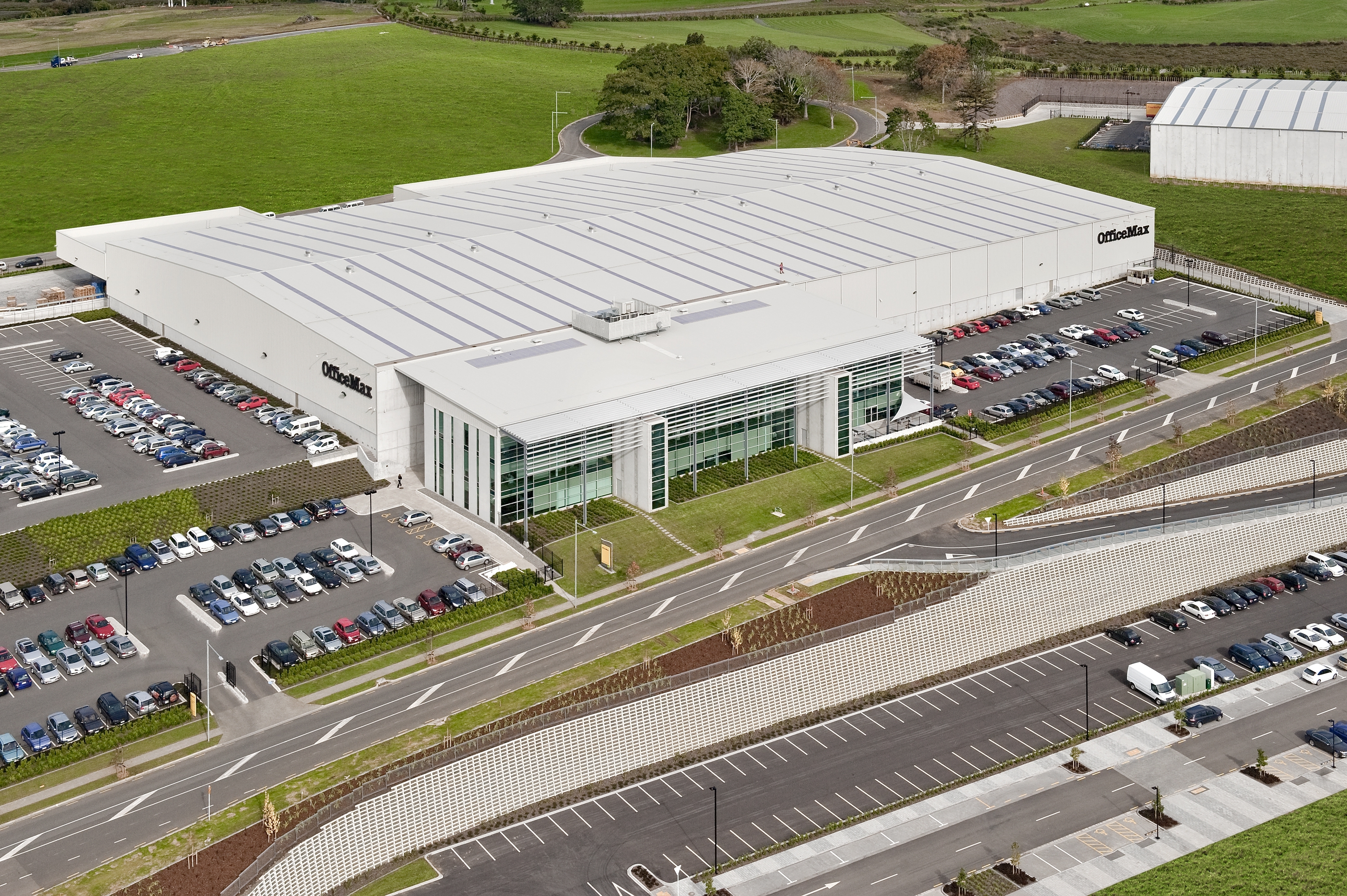

For industrial and commercial roofing and cladding projects where both high spanning and a low pitch is required

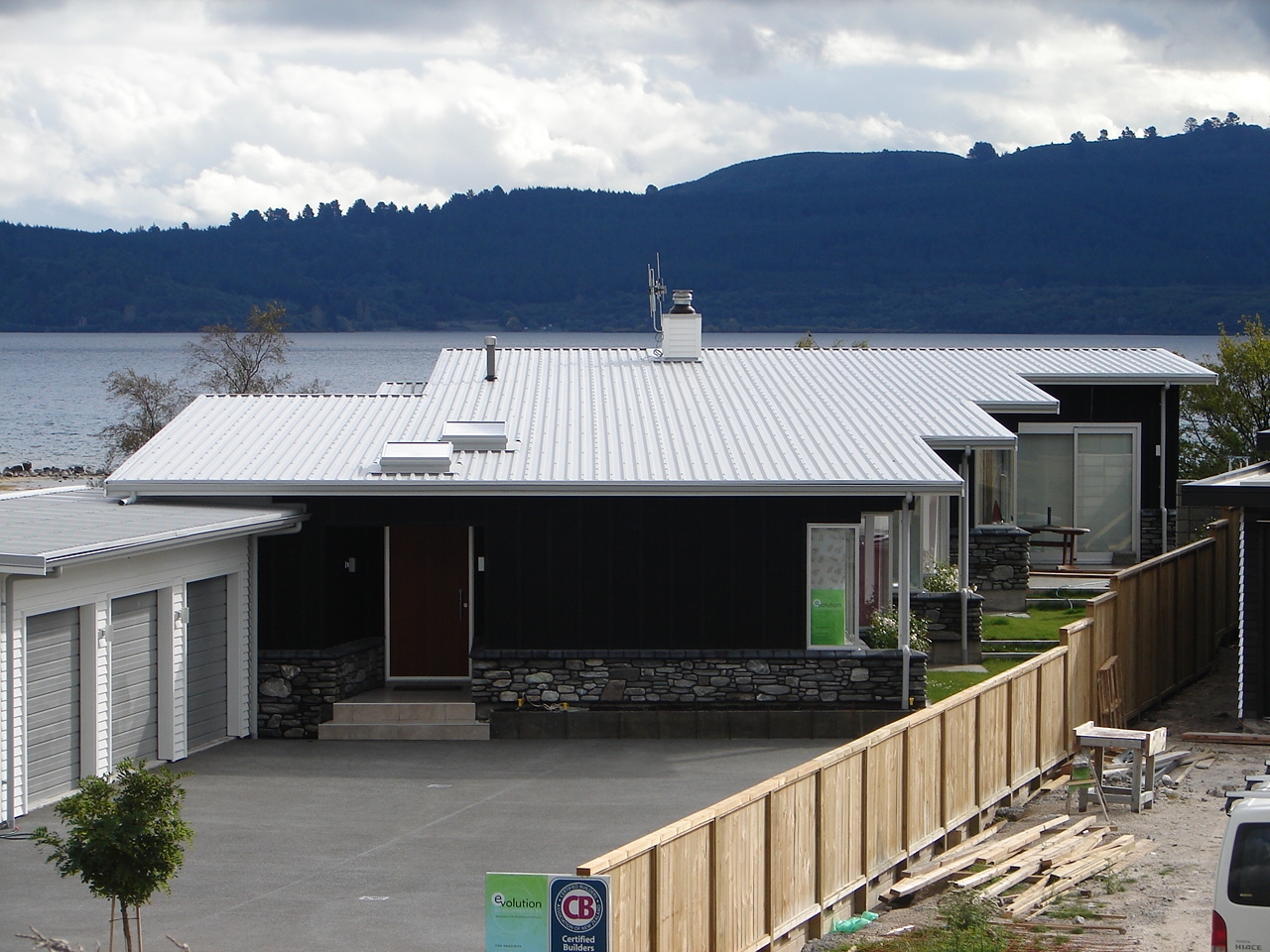

Residential roofing and wall cladding
Industrial and commercial horizontal and vertical cladding in both standard and reverse run applications
Rural and lifestyle roofing and cladding
Drape curving
